SEAT (VZ800Z)

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

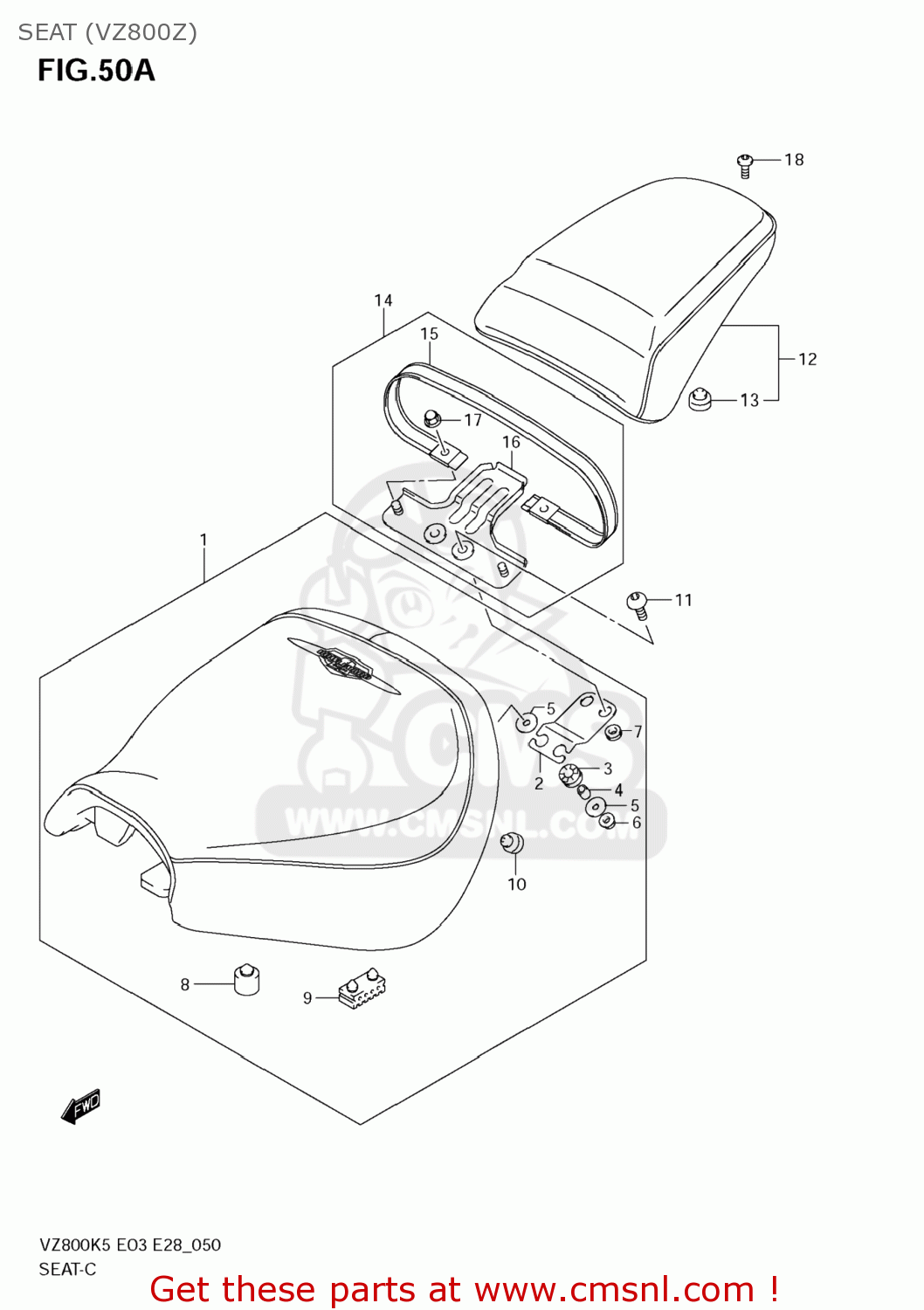

Seat (vz800z) diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

SEAT (VZ800Z) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

SEAT (VZ800Z) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4510039G10HW9
ref: 1

SEAT ASSY

€ 0.00

2

4511539G00
ref: 2

PLATE,SEAT FR

€ 12.50

3

4514941F00
ref: 3

CUSHION

€ 6.50

4

0918007004
ref: 4

SPACER(6.5X10.5X12)

€ 2.50

5

0916006501
ref: 5

WASHER(6.5X24X1.6)

€ 2.00

6

083161006A
ref: 6

NUT

€ 2.50

7

0932010057
ref: 7

CUSHION

€ 3.50

8

0932110039
ref: 8

CUSHION

€ 4.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

0932110002
ref: 10

CUSHION(11.5X22X20)

€ 2.00

11

0910606064
ref: 11

BOLT(6X18)

€ 6.00

12

4530039G10HW9
ref: 12

SEAT ASSY,PILLION

€ 251.00

13

0932110002
ref: 13

CUSHION(11.5X22X20)

€ 2.00

14

4518039G00P21
ref: 14

BAND ASSY,SEAT

€ 45.00

15

4518139G00
ref: 15

BAND

€ 22.50

16

4518539G00
ref: 16

BRACKET,SEAT BAND

€ 27.50

17

083132006A
ref: 17

NUT

€ 2.00

18

0910608140
ref: 18

BOLT(8X16)

€ 6.00
