REAR FENDER (VZ800ZK7)

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

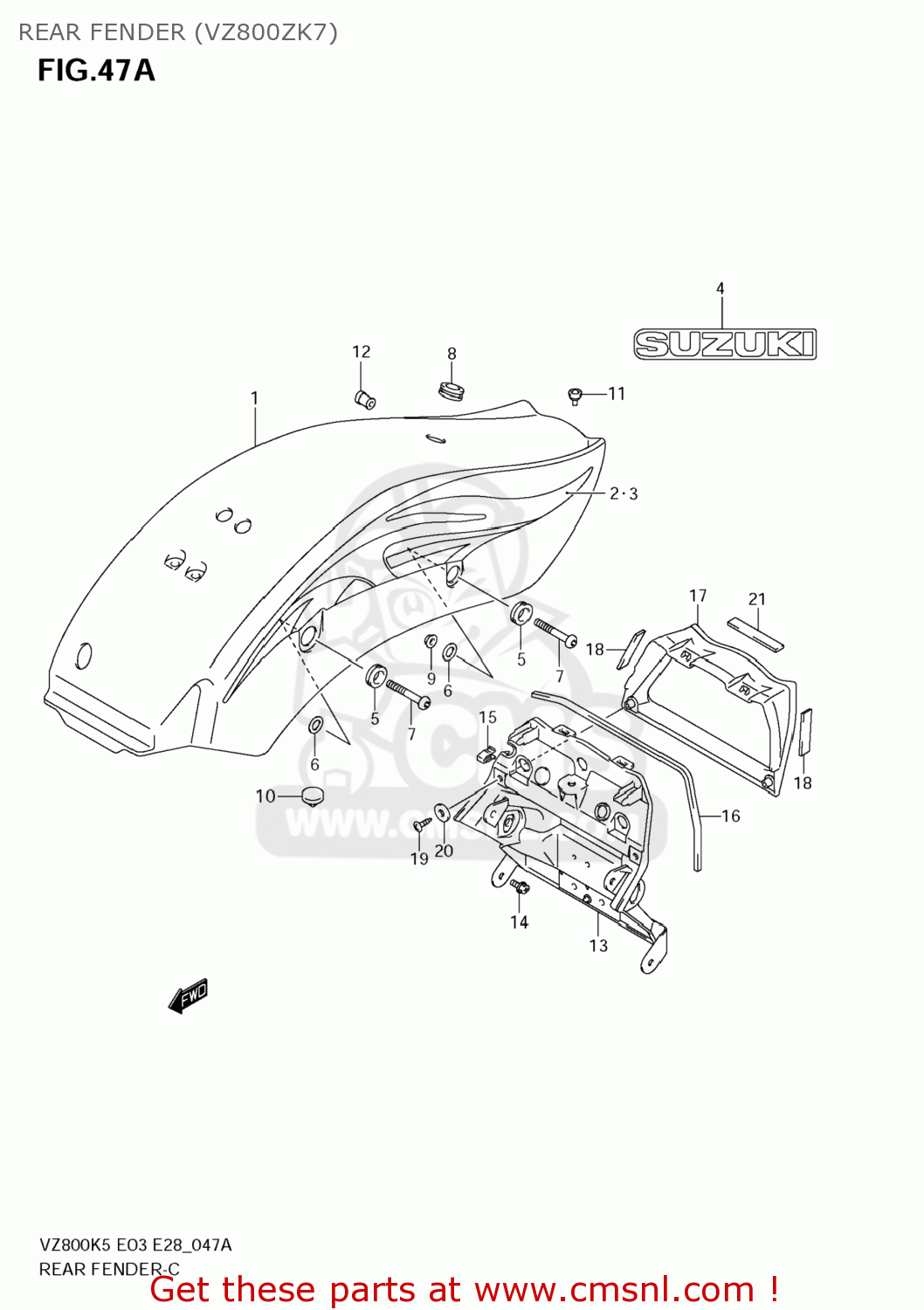

Rear fender (vz800zk7) diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FENDER (VZ800ZK7) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR FENDER (VZ800ZK7) VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

6311039GA0YHG
ref: 1
63110-39GA1-YHG

FENDER, REAR FRONT (GRAY)

€ 312.00

2

6817539GA0DLY
ref: 2

TAPE,RR FENDER,R

€ 31.00

3

6817639GA0DLY
ref: 3

TAPE,RR FENDER,L

€ 31.00

4

6827134A00YES
ref: 4

EMBLEM,SUZUKI

€ 6.50

5

4719124F00
ref: 5

CUSHION,FRAME COVER UPR RR

€ 3.00

6

0916015002
ref: 6

WASHER(15.5X26X2.3)

€ 2.00

7

6316141F00
ref: 7

BOLT,RR FENDER

€ 5.00

8

0932015008
ref: 8

CUSHION

€ 3.50

9

0831610083
ref: 9
08316-1008B

NUT

€ 3.00

10

6311439G00
ref: 10

CUSHION,RR FENDER UPR NO.1

€ 16.00

11

0932108022
ref: 11

CUSHION

€ 2.50

12

6311939G00
ref: 12

CUSHION,GRIP

€ 14.00

13

6311239G01
ref: 13
63112-39G02

FENDER,REAR,RR

€ 44.50

14

0911106090
ref: 14

BOLT(6X16.5)

€ 3.00

15

0940908326
ref: 15

CLIP

€ 2.50

16

6311639G00
ref: 16

CUSHION,RR FENDER RR

€ 4.00

17

6311339G00
ref: 17

COVER,RR FENDER RR

€ 18.50

18

6311739G00
ref: 18

CUSHION,RR FENDER RR COVER

€ 2.50

19

0354105163
ref: 19
03541-0516A

SCREW

€ 1.50

20

0832201063
ref: 20
08322-0106B

WASHER

€ 2.00

21

6311839G00
ref: 21

CUSHION,RR FENDER RR

€ 3.00
