HEADLAMP ASSY

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

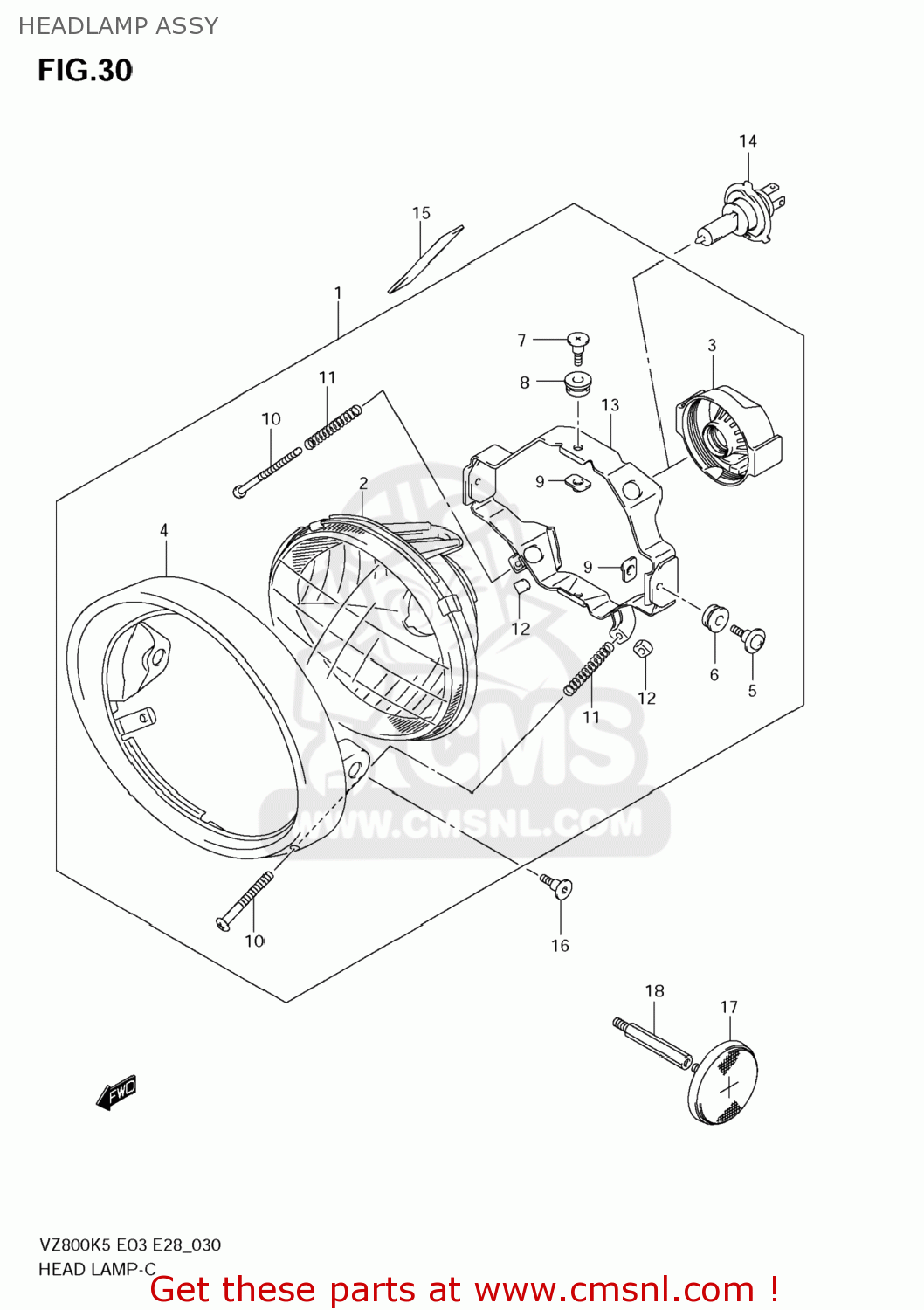

Headlamp assy diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

HEADLAMP ASSY VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

HEADLAMP ASSY VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3510039G30999
ref: 1

HEADLAMP ASSY

€ 300.50

2

3512139G30
ref: 2

UNIT

€ 139.00

3

3517313E10
ref: 3

COVER

€ 12.50

4

3511139G20
ref: 4

RIM

€ 144.50

5

3513638A00
ref: 5

SCREW,MOUNTING

€ 2.50

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513639G20
ref: 7

SCREW

€ 3.00

8

3513938A60
ref: 8

CUSHION

€ 2.50

9

3515538A60
ref: 9

NUT

€ 3.50

10

3515139G30
ref: 10

SCREW,ADJUSTER

€ 4.50

11

3515439G20
ref: 11

SPRING,ADJUSTER

€ 4.00

12

3515245600
ref: 12

NUT,HEADLAMP ADJUST

€ 3.00

13

3513039G30
ref: 13

BRACKET

€ 34.50

14

0947112185
ref: 14
09471-12060

BULB(12V60/55W,H4)

€ 8.00

15

3365226E00
ref: 15

PROTECTOR(20X90)X1.0

€ 3.00

16

0913905081
ref: 16

SCREW(5X12)

€ 3.00

17

3595014A10
ref: 17
35950-14A11

REFLECTOR,REFLEX

€ 11.00

18

0911906104
ref: 18

BOLT

€ 9.50
