REAR CUSHION LEVER

VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

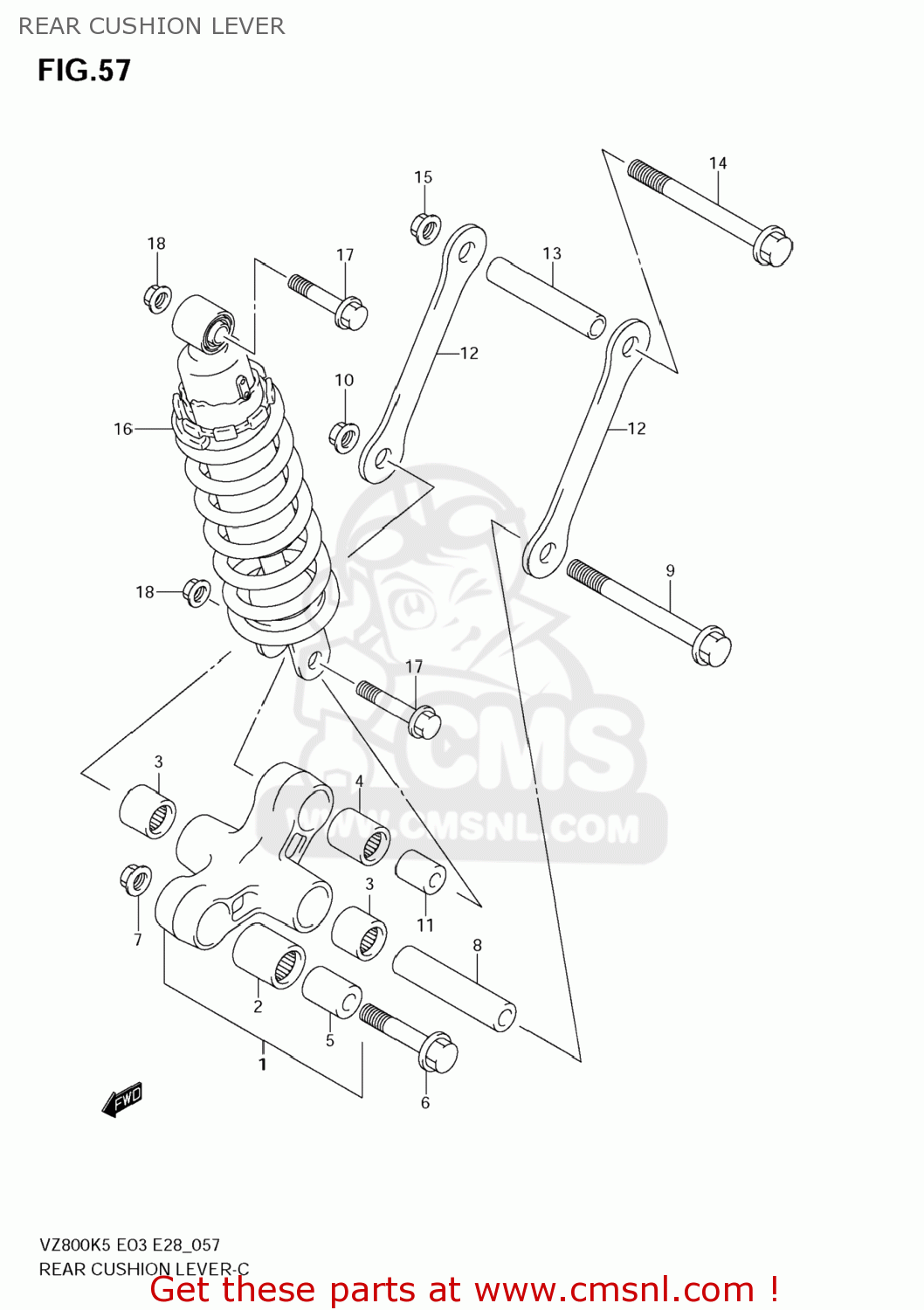

Rear cushion lever diagram VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR CUSHION LEVER VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

REAR CUSHION LEVER VZ800 BOULEVARD M50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

6260033880
ref: 1

LEVER SET,RR CUSHION

€ 264.00

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926317039
ref: 3

BEARING(17X24X20)

€ 18.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268412C00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 12.50

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7-1

0831931128
ref: 7-1
08319-3112A

NUT 12MM

€ 4.00

7-2

083193112A
ref: 7-2

NUT

€ 4.00

8

6262633D00
ref: 8

SPACER,RR CUSHION LEVER CTR

€ 17.50

9

6262133D00
ref: 9

BOLT,RR CUSHION LEVER CTR

€ 10.00

10-1

0831931128
ref: 10-1
08319-3112A

NUT 12MM

€ 4.00

10-2

083193112A
ref: 10-2

NUT

€ 4.00

11

6268440A10
ref: 11

SPACER,RR CUSHION LEVER

€ 11.50

12

6264141F00
ref: 12

ROD,RR CUSHION

€ 20.50

13

6262633D00
ref: 13

SPACER,RR CUSHION LEVER CTR

€ 17.50

14

6262133D00
ref: 14

BOLT,RR CUSHION LEVER CTR

€ 10.00

15-1

0831931128
ref: 15-1
08319-3112A

NUT 12MM

€ 4.00

15-2

083193112A
ref: 15-2

NUT

€ 4.00

16-1

6210039G00
ref: 16-1

ABSORBER ASSY,RR SHOCK

€ 481.50

16-2

6210039G10
ref: 16-2

ABSORBER ASSY,RR SHOCK

€ 0.00

17

0910310213
ref: 17

BOLT(10X52)

€ 4.00

18-1

0831931103
ref: 18-1
08319-3110A

NUT

€ 3.00

18-2

083193110B
ref: 18-2

NUT

€ 3.00
