EVAP SYSTEM (VZR1800Z L2 E33)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

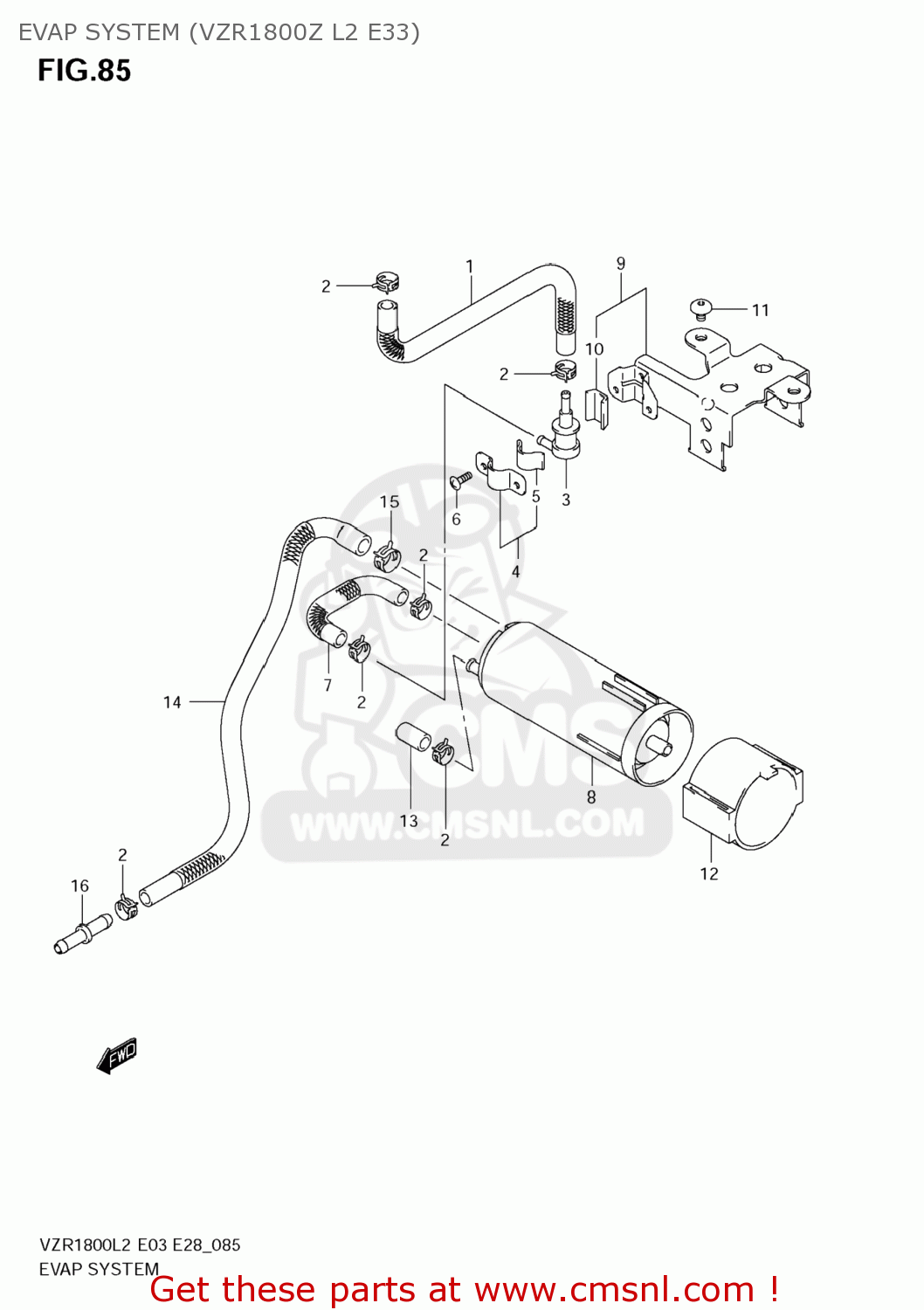

Evap system (vzr1800z l2 e33) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

EVAP SYSTEM (VZR1800Z L2 E33) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

EVAP SYSTEM (VZR1800Z L2 E33) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

4443448G10
ref: 1

HOSE,TANK & BREATHER VALVE

€ 26.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408A
ref: 6

SCREW

€ 1.00

7

4443548G10
ref: 7

HOSE,BREATHER VALVE & CANISTER

€ 14.00

8

1721026E00
ref: 8

CANISTER ASSY,CHARCOAL

€ 261.50

9

4488048G00
ref: 9

BRACKET,CANISTER

€ 0.00

10

4489424A00
ref: 10

CUSHION

€ 1.50

11

0913906108
ref: 11

SCREW(6X12)

€ 3.00

12

4488348G00
ref: 12

CUSHION,CANISTER

€ 0.00

13

0925107005
ref: 13

CAP

€ 5.50

14

4443648G10
ref: 14

HOSE,CSTR PURGE

€ 29.00

15

0940112404
ref: 15

CLIP

€ 2.50

16

0936706009
ref: 16

JOINT

€ 2.50

all assemblies

CRANKCASE COVER

EVAP SYSTEM (VZR1800 L2 E33)
