HANDLE LEVER (VZR1800Z L2 E03)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

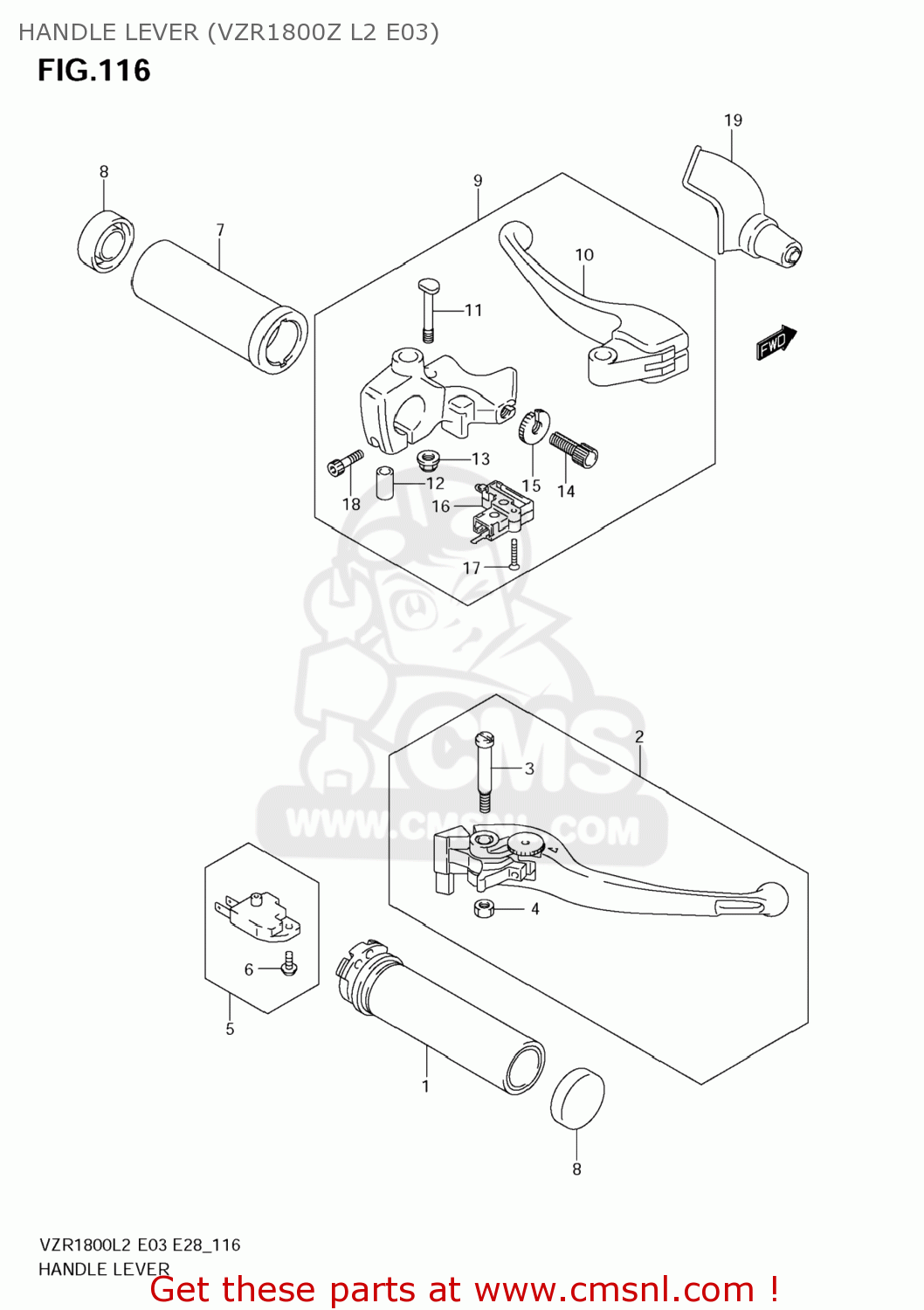

Handle lever (vzr1800z l2 e03) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

HANDLE LEVER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

HANDLE LEVER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5711026D10
ref: 1

GRIP,THROTTLE

€ 22.00

2

5730048G10
ref: 2

LEVER ASSY,BRAKE

€ 50.00

3

5743148G00
ref: 3

BOLT,PIVOT

€ 6.00

4

083192106A
ref: 4

NUT

€ 2.00

5

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

6

5746517C00
ref: 6

SCREW

€ 1.50

7

5721026D00
ref: 7

GRIP,L

€ 21.50

8

5721638A00
ref: 8

CAP,GRIP END

€ 6.50

9

5750048G21
ref: 9

LEVER ASSY,CLUTCH

€ 141.00

10

5762148G11
ref: 10

LEVER,CLUTCH

€ 34.00

11

5753148G00
ref: 11

BOLT,LEVER PIVOT

€ 20.00

12

5762348G00
ref: 12

COLLAR

€ 17.50

13

083193106B
ref: 13

NUT

€ 2.50

14

5744108C00
ref: 14

ADJUSTER,WIRE

€ 6.50

15

5744208C00
ref: 15

NUT,LOCK

€ 8.50

16

5756005A10
ref: 16

SWITCH ASSY,CLUTCH

€ 25.50

17

5756241G00
ref: 17

SCREW

€ 6.50

18

071300620A
ref: 18

BOLT

€ 3.00

19

5754148G10
ref: 19

COVER,CLUTCH LEVER

€ 6.00
