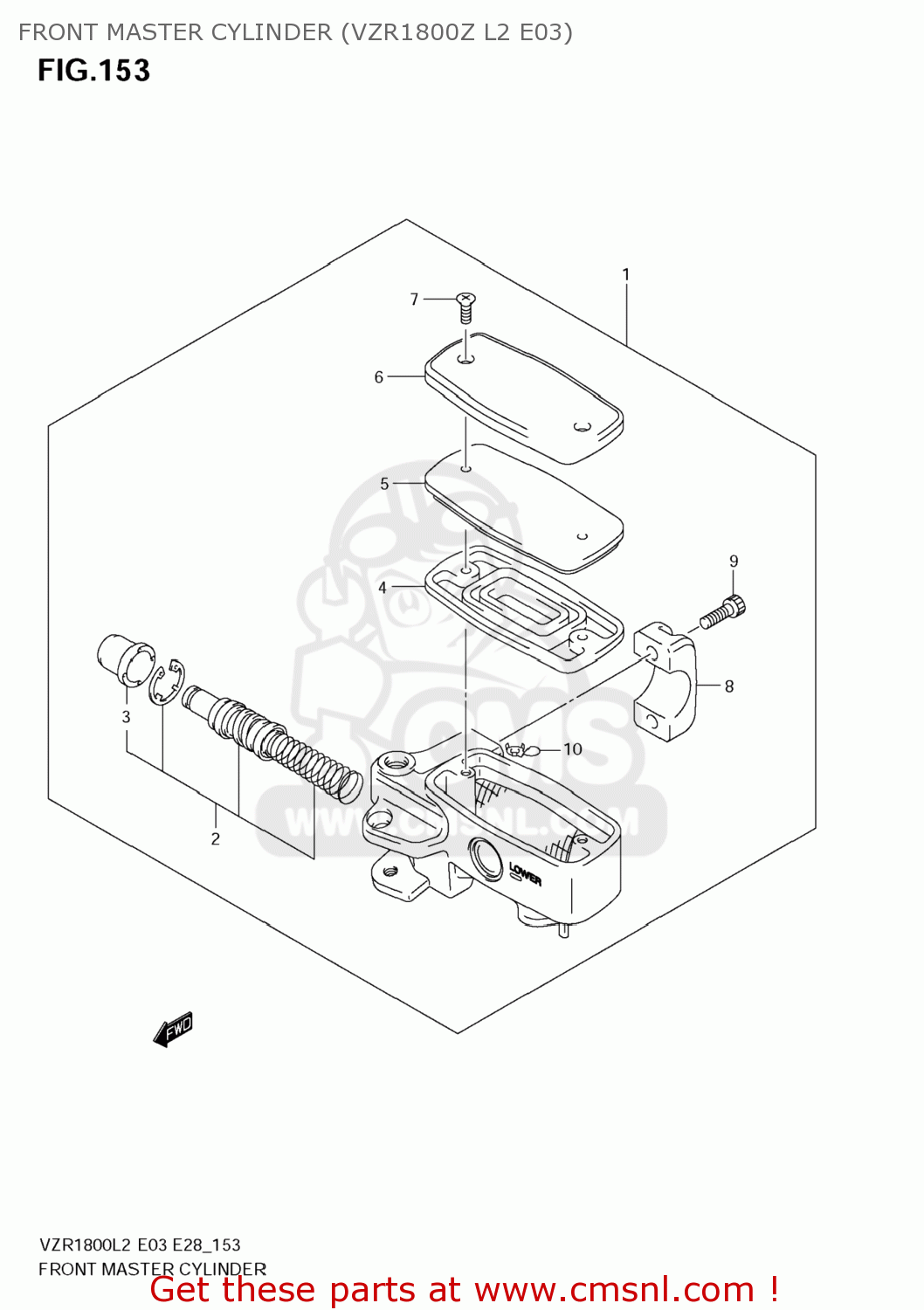

FRONT MASTER CYLINDER (VZR1800Z L2 E03)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

Front master cylinder (vzr1800z l2 e03) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT MASTER CYLINDER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT MASTER CYLINDER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5960010FB1
ref: 1

CYLINDER ASSY,FR MASTER

€ 337.50

2

5960145810
ref: 2

PISTON/CUP SET

€ 34.00

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966710F00
ref: 4

DIAPHRAGM

€ 7.00

5

5743710F00
ref: 5

PLATE,DIAPHRAGM

€ 13.00

6

5966910F20
ref: 6

CAP

€ 45.00

7

0212204127
ref: 7

SCREW

€ 2.00

8

5967110F10
ref: 8

HOLDER

€ 65.50

9

0713006207
ref: 9

BOLT

€ 3.50

10

5966432F00
ref: 10

PROTECTOR

€ 7.50
