Buy Suzuki VZR Parts Online


HANDLE SWITCH (VZR1800Z L2 E28)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

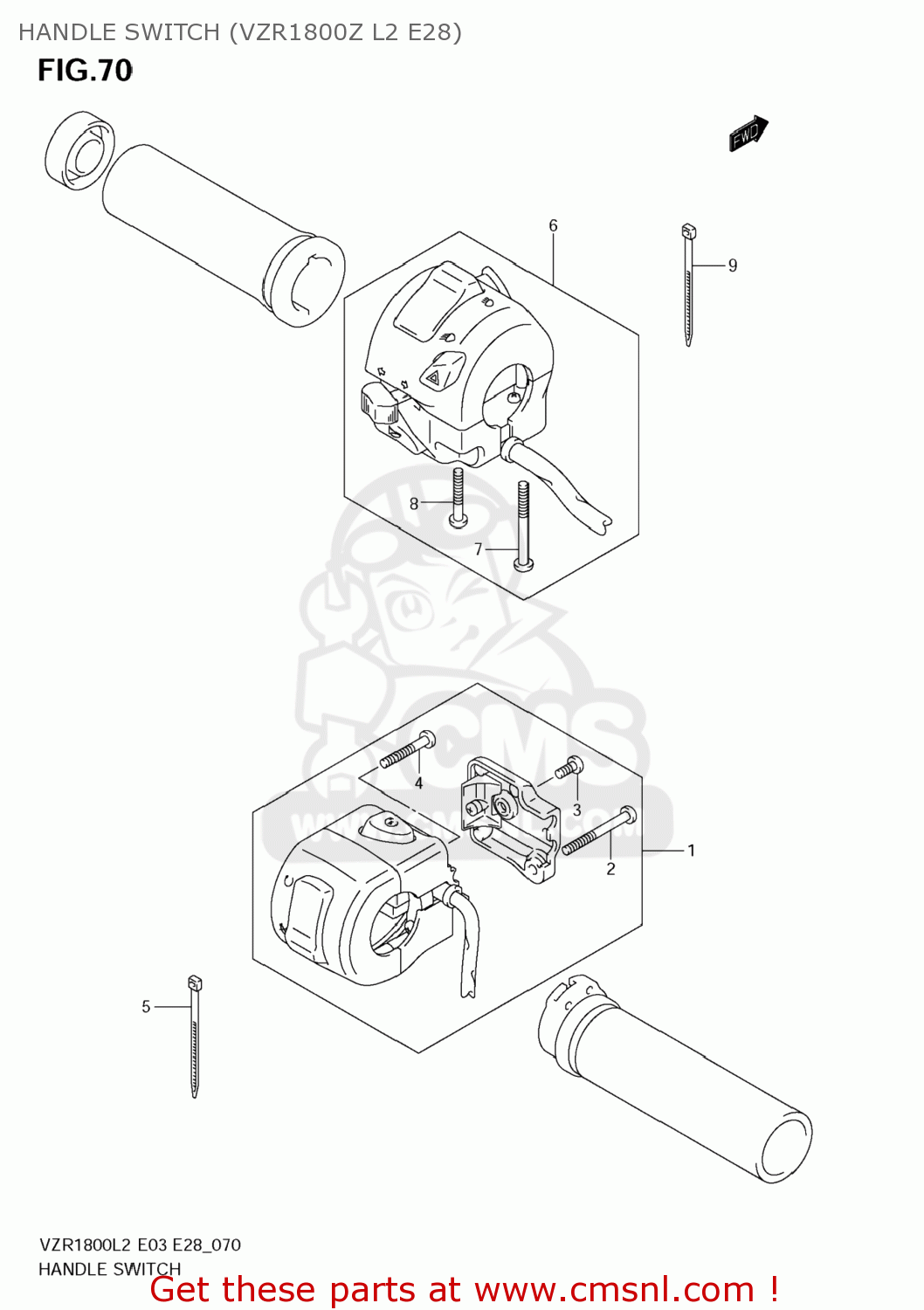

Handle switch (vzr1800z l2 e28) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

HANDLE SWITCH (VZR1800Z L2 E28) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)
HANDLE SWITCH (VZR1800Z L2 E28) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)
HANDLE SWITCH (VZR1800Z L2 E28) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)
prices are in EUR
ref
part #
description
quantity
1
3720048G80
ref: 1
SWITCH ASSY,HANDLE,R
€ 316.50
2
021120545B
ref: 2
SCREW
021120545B
€ 4.00
3
021120510B
ref: 3
SCREW
021120510B
€ 2.00
4
021120535B
ref: 4
SCREW
021120535B
€ 1.50
5
0940714407
ref: 5
CLAMP(L:145)
0940714407
€ 4.00
6
3740048GA0
ref: 6
SWITCH ASSY,HANDLE,L
€ 365.50
7
021120545B
ref: 7
SCREW
021120545B
€ 4.00
8
021120530A
ref: 8
SCREW
021120530A
€ 1.50
9
0940714407
ref: 9
CLAMP(L:145)
0940714407
€ 4.00
