FRONT DAMPER

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

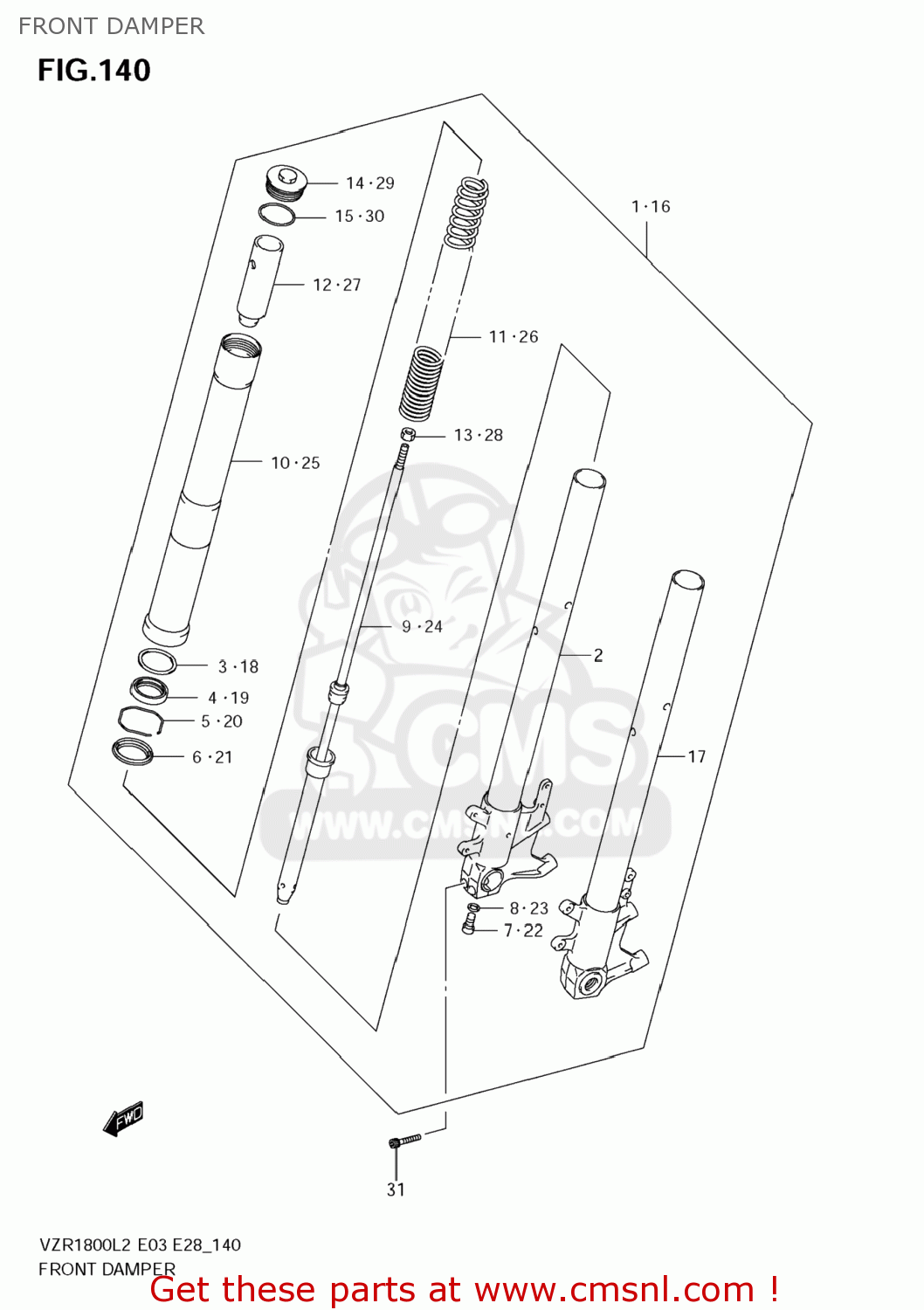

Front damper diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT DAMPER VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT DAMPER VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5110348G20
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,041.00

2

5111048G20
ref: 2

TUBE,INNER,R

€ 642.00

3

5115827C00
ref: 3

WASHER

€ 4.00

4

5115348G00
ref: 4

SEAL,OIL

€ 16.50

5

5115627C00
ref: 5

RING,STOPPER

€ 3.00

6

5117342F00
ref: 6

SEAL,DUST

€ 21.00

7

5114705H00
ref: 7

BOLT

€ 4.50

8

5114841310
ref: 8

GASKET (NAS)

€ 2.50

9

5114648G20
ref: 9

CYLINDER

€ 294.00

10

5113048G00
ref: 10

TUBE,OUTER

€ 505.50

11

5117148G20
ref: 11

SPRING,FR

€ 78.50

12

5117621H00
ref: 12

SPACER,SPRING

€ 17.00

13

5135213A60
ref: 13

NUT,ROD

€ 1.50

14

5135148G10
ref: 14

CAP

€ 55.00

15

5111748G00
ref: 15

O RING

€ 2.00

16

5110448G20
ref: 16

DAMPER ASSY,FR FORK,L

€ 1,110.00

17

5112048G20
ref: 17

TUBE,INNER,L

€ 642.00

18

5115827C00
ref: 18

WASHER

€ 4.00

19

5115348G00
ref: 19

SEAL,OIL

€ 16.50

20

5115627C00
ref: 20

RING,STOPPER

€ 3.00

21

5117342F00
ref: 21

SEAL,DUST

€ 21.00

22

5114705H00
ref: 22

BOLT

€ 4.50

23

5114841310
ref: 23

GASKET (NAS)

€ 2.50

24

5114648G20
ref: 24

CYLINDER

€ 294.00

25

5113048G00
ref: 25

TUBE,OUTER

€ 505.50

26

5117148G20
ref: 26

SPRING,FR

€ 78.50

27

5117621H00
ref: 27

SPACER,SPRING

€ 17.00

28

5135213A60
ref: 28

NUT,ROD

€ 1.50

29

5135148G10
ref: 29

CAP

€ 55.00

30

5111748G00
ref: 30

O RING

€ 2.00

31

5132839G20
ref: 31

BOLT,HOLDER HANDLE UPR

€ 6.50
