STAND

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

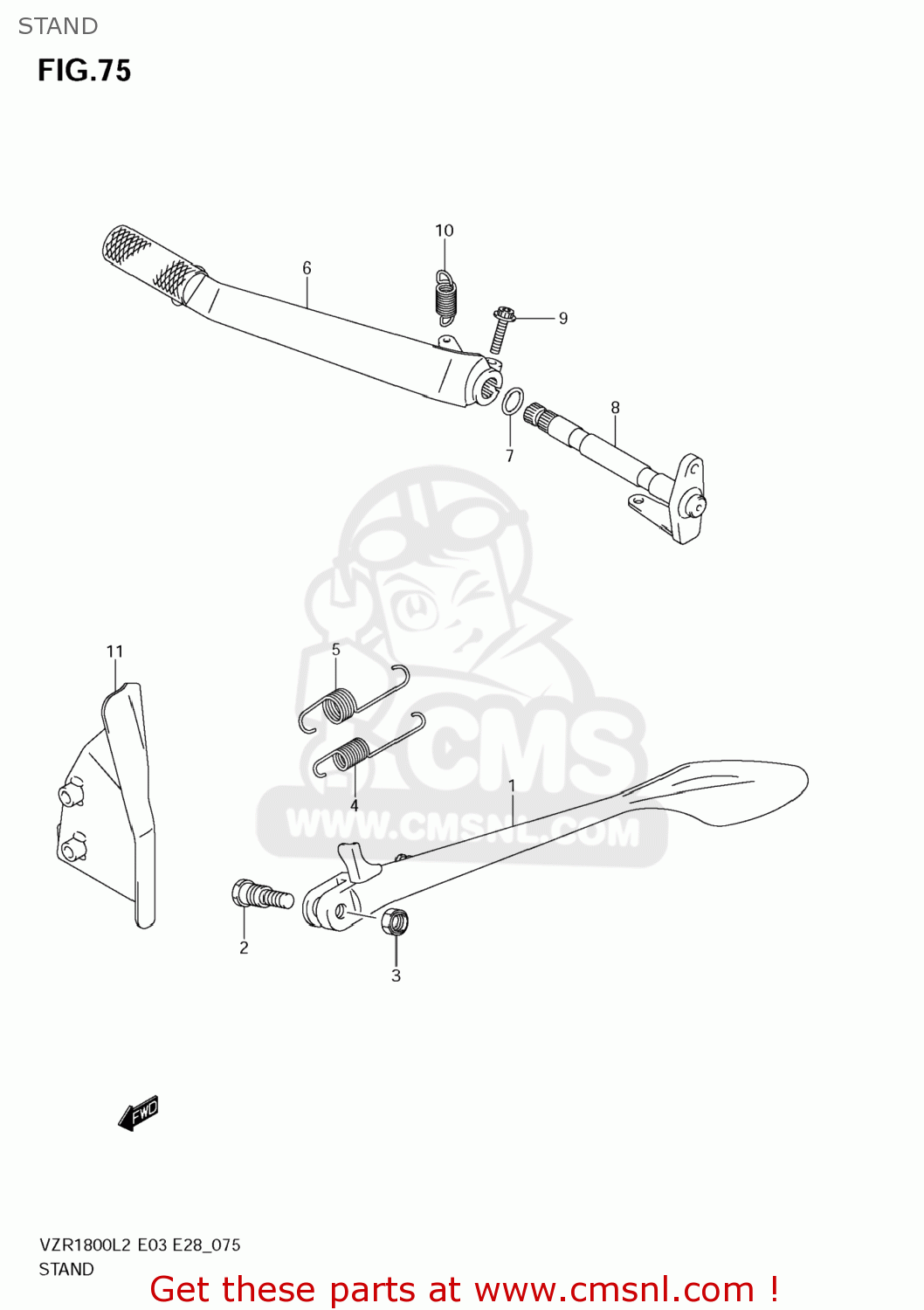

Stand diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

4231048G00
ref: 1

STAND,PROP

€ 90.50

0911110058
ref: 2

BOLT(10X37.5)

€ 6.00

4232103FK0
ref: 3

NUT,PROP STAND

€ 4.50

0944314069
ref: 4

SPRING

€ 7.00

0944319012
ref: 5

SPRING

€ 5.50

4311048G11
ref: 6

PEDAL,BRAKE

€ 102.50

0928014011
ref: 7

O RING(D:2.5,ID:13.8)

€ 3.50

4312048G10
ref: 8

ARM,BRAKE ROD

€ 69.50

071200625A
ref: 9

BOLT

€ 2.50

0944311030
ref: 10

SPRING

€ 4.00

4357048G00
ref: 11

GUARD,RR MASTER CYLINDER

€ 46.50
