FRONT FENDER (VZR1800 L2 E33)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

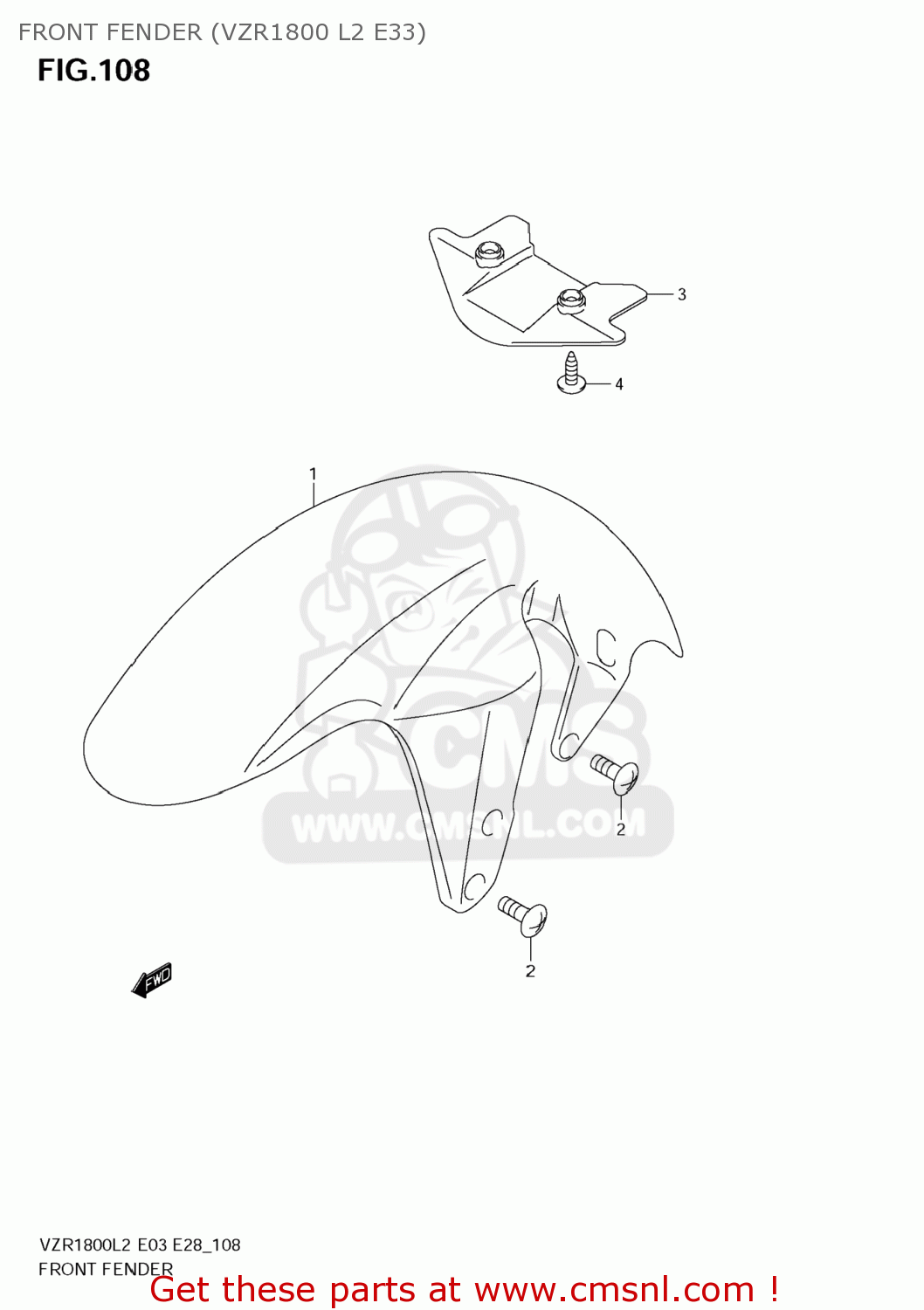

Front fender (vzr1800 l2 e33) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT FENDER (VZR1800 L2 E33) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT FENDER (VZR1800 L2 E33) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5311148G00YVB
ref: 1

FENDER,FR

€ 136.50

2

0913906131
ref: 2

SCREW(6X16)

€ 4.00

3

5318148G00
ref: 3

FENDER,FR UPPER

€ 12.00

4

0911106094
ref: 4

BOLT(6X16.5)

€ 2.50
