FRONT FENDER (VZR1800Z L2 E03)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

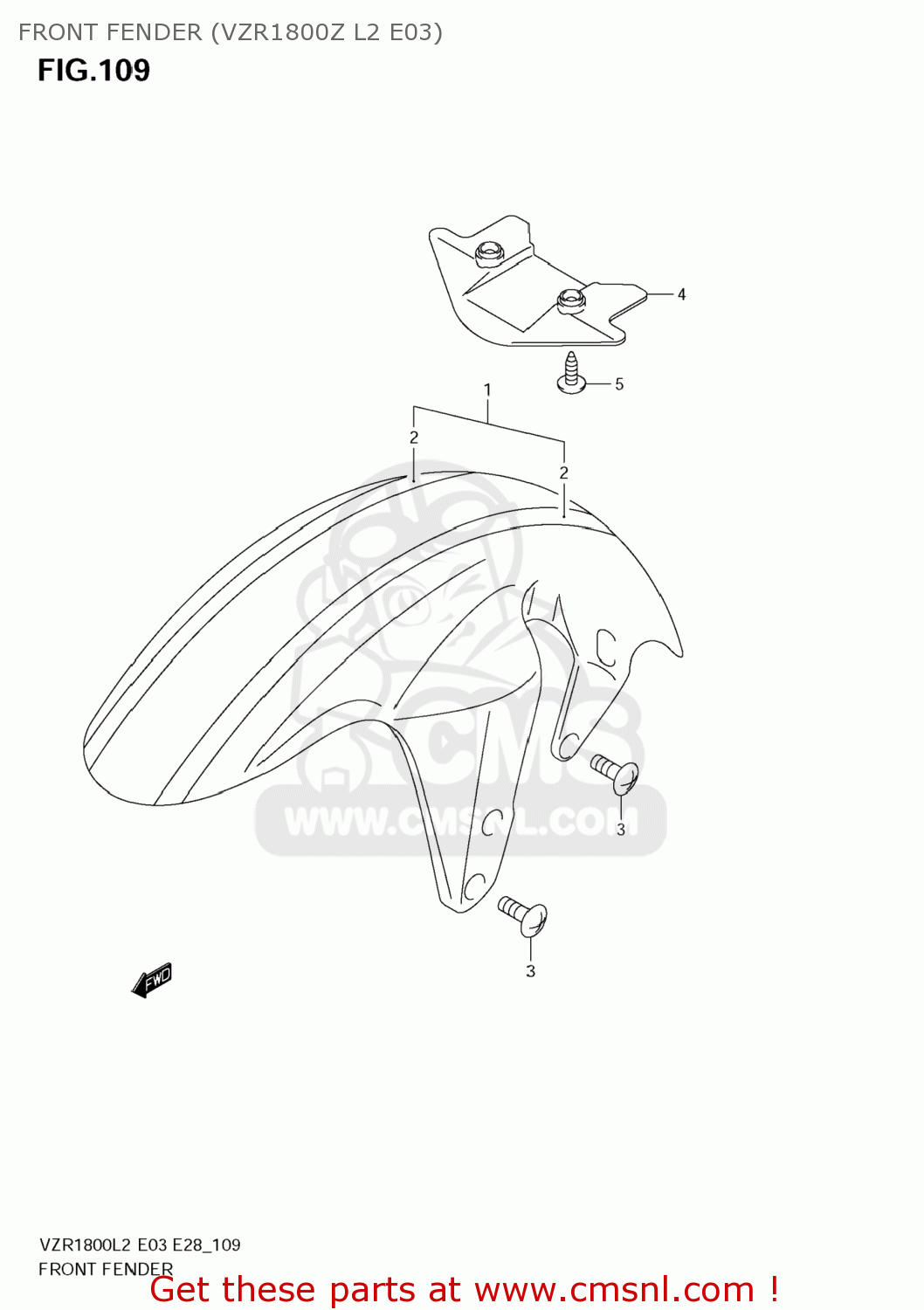

Front fender (vzr1800z l2 e03) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT FENDER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT FENDER (VZR1800Z L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1-1

5311048G50JBA
ref: 1-1

FENDER,FR

€ 536.50

1-2

5311048G50GLR
ref: 1-2

FENDER,FR

€ 590.00

2-1

6815048G50JBA
ref: 2-1

TAPE SET,FR FENDER

€ 72.50

2-2

6815048G50GLR
ref: 2-2

TAPE SET,FR FENDER

€ 80.50

3

0913906131
ref: 3

SCREW(6X16)

€ 4.00

4

5318148G00
ref: 4

FENDER,FR UPPER

€ 12.00

5

0911106094
ref: 5

BOLT(6X16.5)

€ 2.50
