HANDLE SWITCH (VZR1800 L2 E03)

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

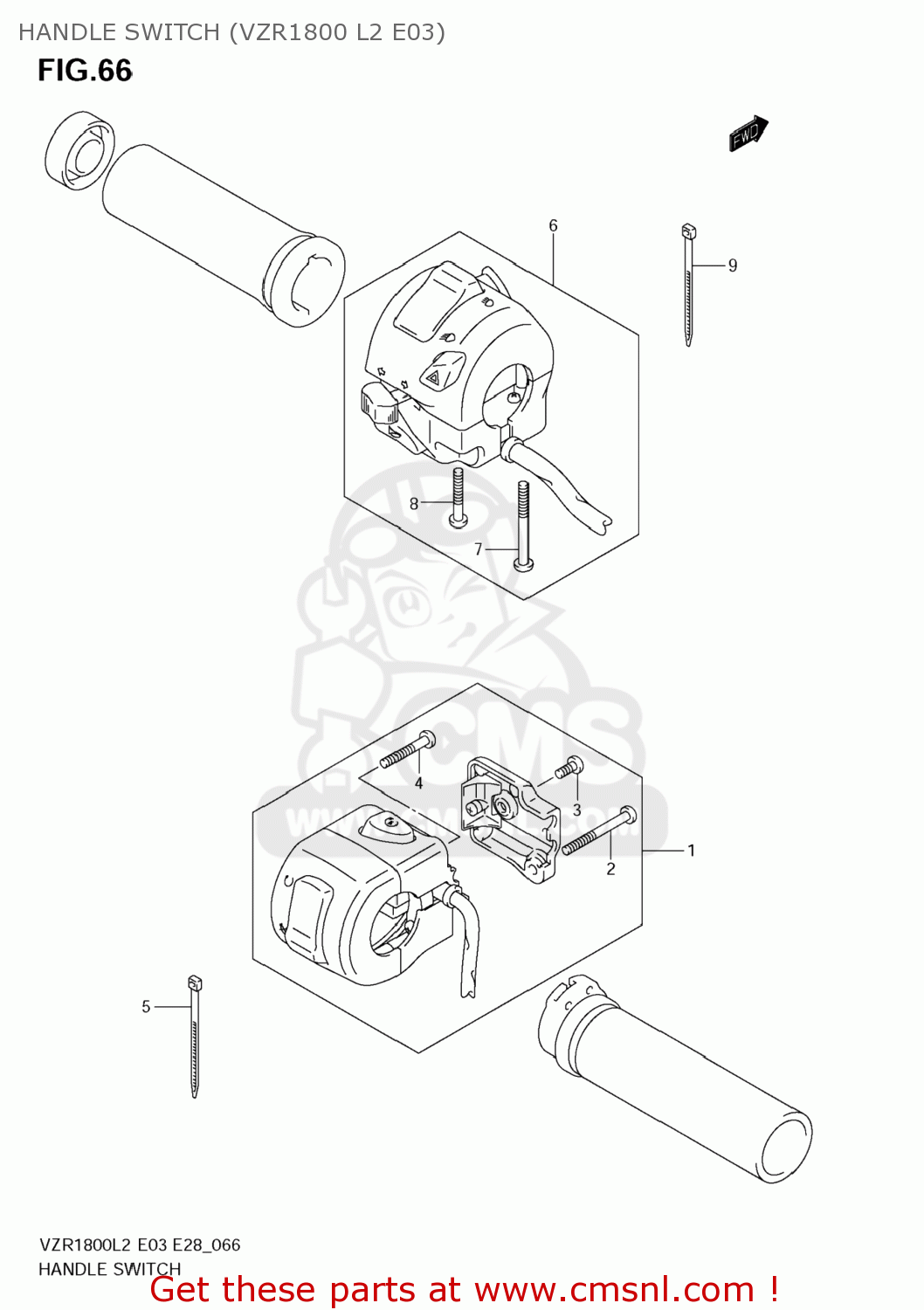

Handle switch (vzr1800 l2 e03) diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

HANDLE SWITCH (VZR1800 L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

HANDLE SWITCH (VZR1800 L2 E03) VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

3720048GA0
ref: 1

SWITCH ASSY,HA

€ 170.00

2

021120545B
ref: 2

SCREW

€ 4.00

3

021120510B
ref: 3

SCREW

€ 2.00

4

021120535B
ref: 4

SCREW

€ 1.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

3740048G10
ref: 6

SWITCH ASSY,HANDLE,L

€ 227.50

7

021120545B
ref: 7

SCREW

€ 4.00

8

021120530A
ref: 8

SCREW

€ 1.50

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00
