FRONT CALIPER

VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

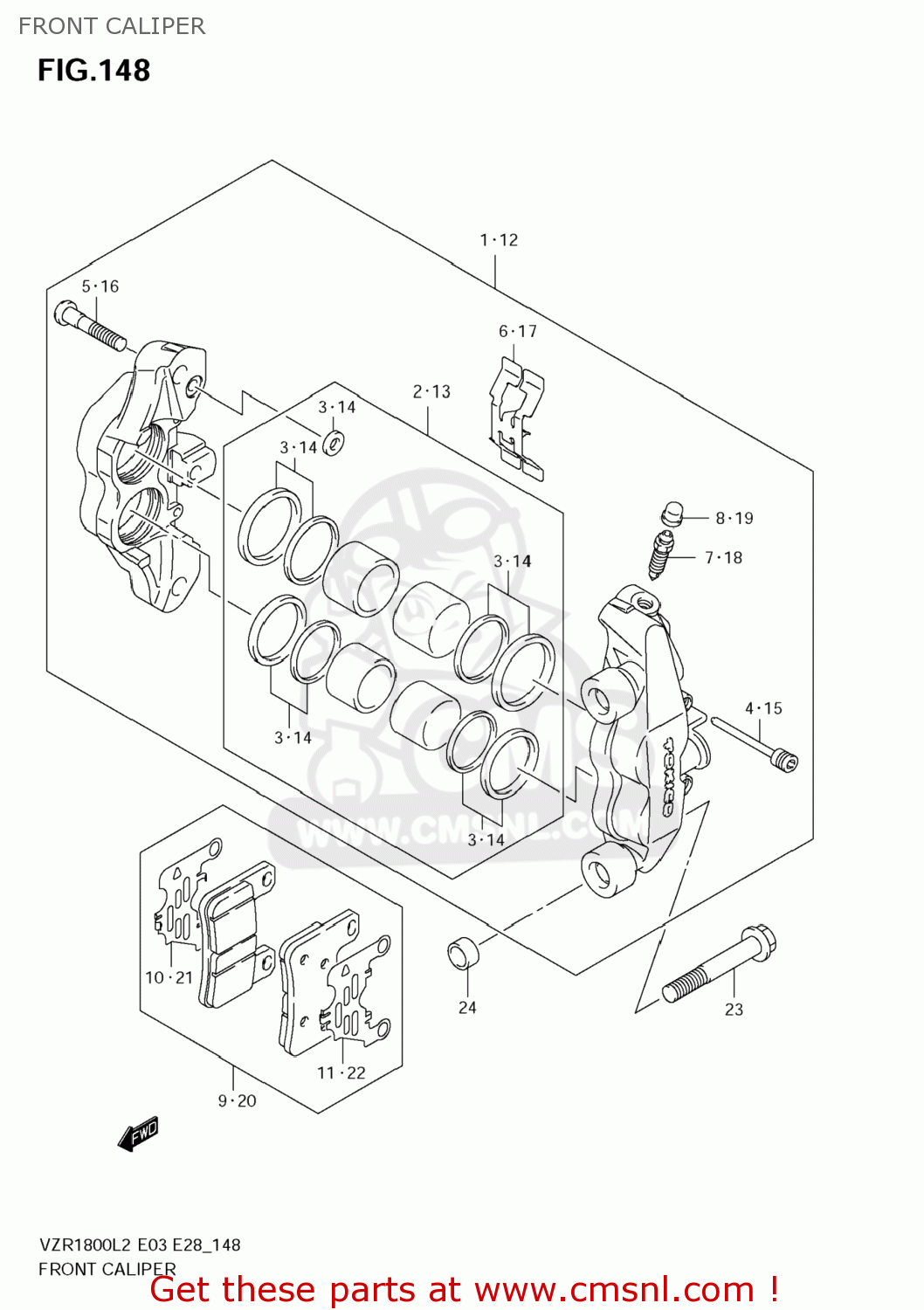

Front caliper diagram VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT CALIPER VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

FRONT CALIPER VZR1800 BOULEVARD M109R 2012 (L2) USA CALIFO CANAD (E03 E33 E28)

prices are in EUR

ref

part #

description

quantity

1

5910041G10999
ref: 1

CALIPER ASSY,FR,R

€ 392.00

2

5910035870
ref: 2

PISTON SET

€ 122.50

3

5910035820
ref: 3
59100-29830

SEAL SET,PISTON

€ 29.50

4

5914141G00
ref: 4

PIN,PAD

€ 27.00

5

5914518G00
ref: 5

BOLT

€ 7.50

6

5915129G00
ref: 6

SPRING,PAD

€ 10.50

7

5912118410
ref: 7

BLEEDER

€ 8.00

8

5515666310
ref: 8

CAP,BLEEDER PLUG

€ 6.00

9

5910029850
ref: 9

PAD & SHIM SET (NAS)

€ 54.00

10

5917141G00
ref: 10

SHIM,PAD A

€ 10.00

11

5917241G00
ref: 11

SHIM,PAD B

€ 10.00

12

5930041G10999
ref: 12

CALIPER ASSY,FR,L

€ 504.00

13

5910035870
ref: 13

PISTON SET

€ 122.50

14

5910035820
ref: 14
59100-29830

SEAL SET,PISTON

€ 29.50

15

5914141G00
ref: 15

PIN,PAD

€ 27.00

16

5914518G00
ref: 16

BOLT

€ 7.50

17

5915129G00
ref: 17

SPRING,PAD

€ 10.50

18

5912118410
ref: 18

BLEEDER

€ 8.00

19

5515666310
ref: 19

CAP,BLEEDER PLUG

€ 6.00

20

5910029850
ref: 20

PAD & SHIM SET (NAS)

€ 54.00

21

5917141G00
ref: 21

SHIM,PAD A

€ 10.00

22

5917241G00
ref: 22

SHIM,PAD B

€ 10.00

23

0910310392
ref: 23

BOLT(10X70)

€ 4.50

24

5915141G00
ref: 24

PIN,CALIPER

€ 9.50
