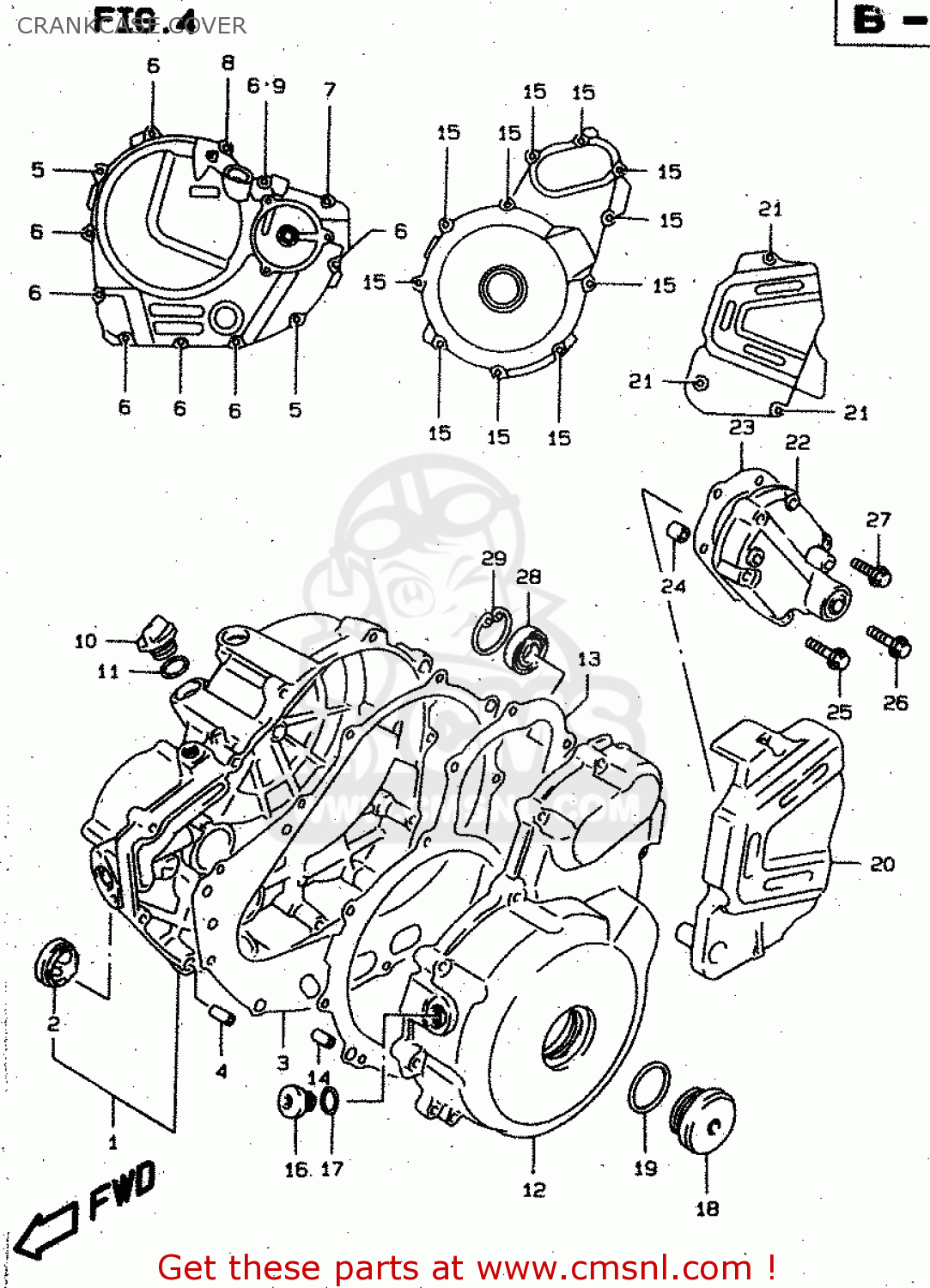

CRANKCASE COVER

ref

part #

description

quantity

1

1134032E00
ref: 1

COVER,CLUTCH

€ 192.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148232E00
ref: 3

GASKET,CLUTCH COVER

€ 17.00

4

0421109149
ref: 4

PIN

€ 2.00

5

0154706457
ref: 5

BOLT

€ 2.50

6

0154706357
ref: 6

BOLT

€ 2.50

7

0154706307
ref: 7

BOLT

€ 2.50

8

0154706257
ref: 8

BOLT

€ 2.50

9

0916806024
ref: 9

GASKET(5.8X11X1.2) (NAS)

€ 2.00

10

0925920019
ref: 10

PLUG

€ 9.50

11

0928017003
ref: 11

O RING(D:3.1,ID:16.8)

€ 2.00

12

1135132E00
ref: 12
MODEL V

COVER,MAGNETO

€ 152.00

12

1135132E01
ref: 12
MODEL W/X

COVER,MAGNETO

€ 152.00

13

1148332E00
ref: 13

GASKET,MAGNETO COVER

€ 14.00

14

0421109149
ref: 14

PIN

€ 2.00

15

0154706307
ref: 15

BOLT

€ 2.50

16

0924814005
ref: 16

PLUG,14X12

€ 5.00

17

0916814002
ref: 17

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

18

092593601620H
ref: 18

PLUG(SILVER)

€ 10.50

19

0928033004
ref: 19

O RING(D:3.1,ID:32.7)

€ 2.50

20

1136132E00
ref: 20

COVER,ENGINE SPROCKET

€ 46.50

21

0154706357
ref: 21

BOLT

€ 2.50

22

1137112D30
ref: 22

COVER,GEAR SHIFT

€ 41.50

23

1148512D01
ref: 23

GASKET,GEAR SHIFT COVER (NAS)

€ 4.50

24

0421109129
ref: 24

PIN

€ 2.00

25

0154706353
ref: 25

BOLT

€ 3.00

26

0154706303
ref: 26

BOLT,G/S SWITC

€ 3.00

27

0154706203
ref: 27

SCREW

€ 2.50

28

0926212001
ref: 28

BEARING(12X28X8)

€ 15.00

29

0833141286
ref: 29

CIRCLIP

€ 3.50
