HANDLE SWITCH

XF650U 1998 (W) (E22)

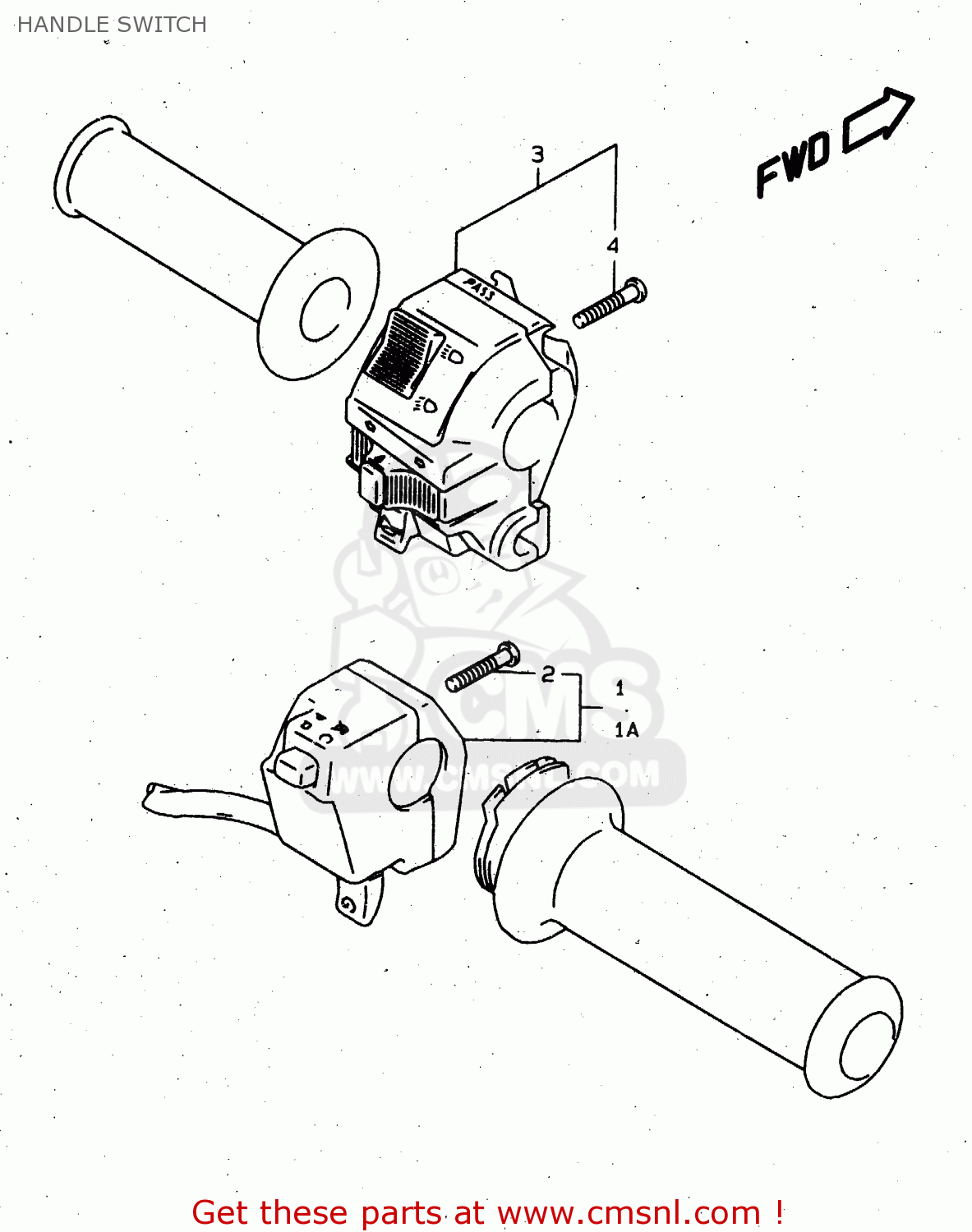

Handle switch diagram XF650U 1998 (W) (E22)

HANDLE SWITCH XF650U 1998 (W) (E22)

HANDLE SWITCH XF650U 1998 (W) (E22)

prices are in EUR

ref

part #

description

quantity

1

3720004F00
ref: 1

SWITCH ASSY,HANDLE,R

€ 118.50

1A

3720004F10
ref: 1A
E24

SWITCH ASSY,HANDLE,R

€ 0.00

2

0912505066
ref: 2

SCREW(5X25)

€ 2.00

3

3740004F00
ref: 3

SWITCH ASSY,HANDLE,L

€ 118.50

4

0211205305
ref: 4

SCREW

€ 1.50
