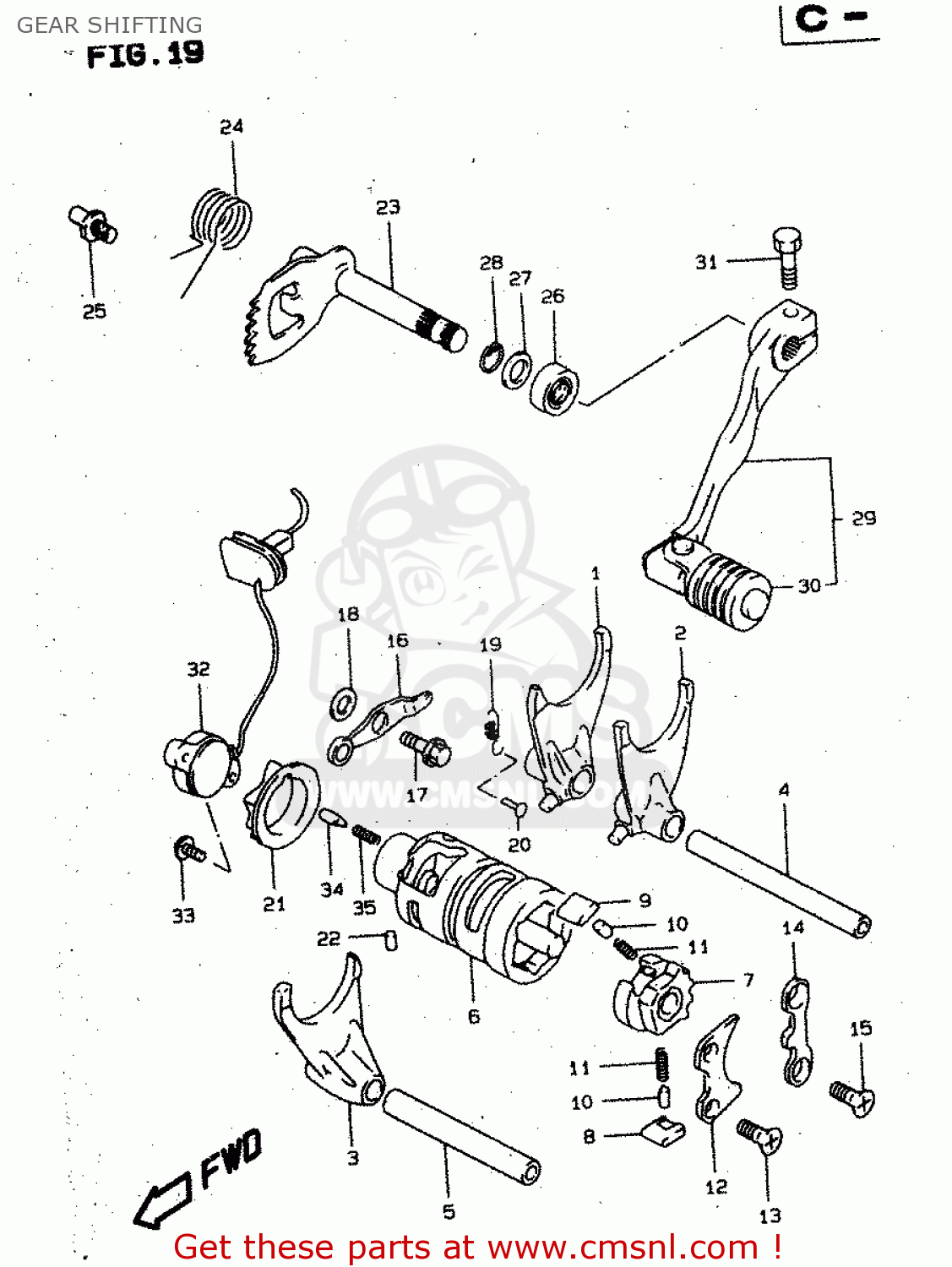

GEAR SHIFTING

ref

part #

description

quantity

1

2521137401
ref: 1

FORK,GEAR SHIFT NO.1

€ 58.50

2

2522137401
ref: 2

FORK,GEAR SHIFT NO.2

€ 58.50

3

2523114A01
ref: 3

FORK,GEAR SHIFT NO.3

€ 54.50

4

2541120A11
ref: 4
L:95

SHAFT,GEAR SHIFT FORK

€ 14.50

5

2542114A02
ref: 5
L:75

SHAFT,GEAR SHIFT FORK

€ 14.50

6

2531037400
ref: 6

CAM,GEAR SHIFT

€ 91.50

7

2532231310
ref: 7
<-25322-31302

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

8

2532334201
ref: 8

PAWL,GEAR SHIFT NO.1

€ 6.00

9

2532434201
ref: 9

PAWL,GEAR SHIFT NO.2

€ 6.00

10

0926105003
ref: 10

PIN(5X8)

€ 1.50

11

0944004003
ref: 11

SPRING

€ 1.50

12

2533114A00
ref: 12

LIFTER,GEAR SHAFT PAWL

€ 6.00

13

0212206123
ref: 13

SCREW

€ 3.00

14

2534140001
ref: 14

STOPPER,GEAR SHIFT POLE

€ 6.50

15

0212206123
ref: 15

SCREW

€ 3.00

16

2535037400
ref: 16

STOPPER,GEAR SHIFT CAM

€ 8.00

17

0911106054
ref: 17

BOLT(6X14.6)

€ 1.50

18

0821106141
ref: 18

WASHER

€ 2.50

19

0944308020
ref: 19

SPRING

€ 2.00

20

0922304001
ref: 20

RIVET

€ 1.50

21

2538137401
ref: 21

PLATE,GEAR SHIFT CAM STOPPER

€ 10.50

22

0422104069
ref: 22

PIN

€ 2.00

23

2551032E00
ref: 23

SHAFT,GEAR SHIFT

€ 64.00

24

0944426023
ref: 24

SPRING

€ 3.00

25

2567101000
ref: 25

STOPPER,GEAR SHIFT CAM

€ 3.00

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

0821212201
ref: 27

WASHER

€ 1.50

28

0833131126
ref: 28

CIRCLIP,12 MM

€ 2.00

29

2560032E10
ref: 29

LEVER ASSY,GEAR SHIFT

€ 174.50

30

2565203D00
ref: 30

RUBBER,GEAR SHIFT PEDAL

€ 3.50

31

0150006203
ref: 31

BOLT

€ 2.00

32

3772032E00
ref: 32

BASE ASSY,GEAR SHIFT TERMINAL

€ 60.50

33

0211205163
ref: 33

SCREW

€ 2.00

34

0920905011
ref: 34

PIN(5X15.5)

€ 2.00

35

0944004010
ref: 35

SPRING

€ 1.50
