FRONT MASTER CYLINDER
XF650U 1998 (W) (E22)

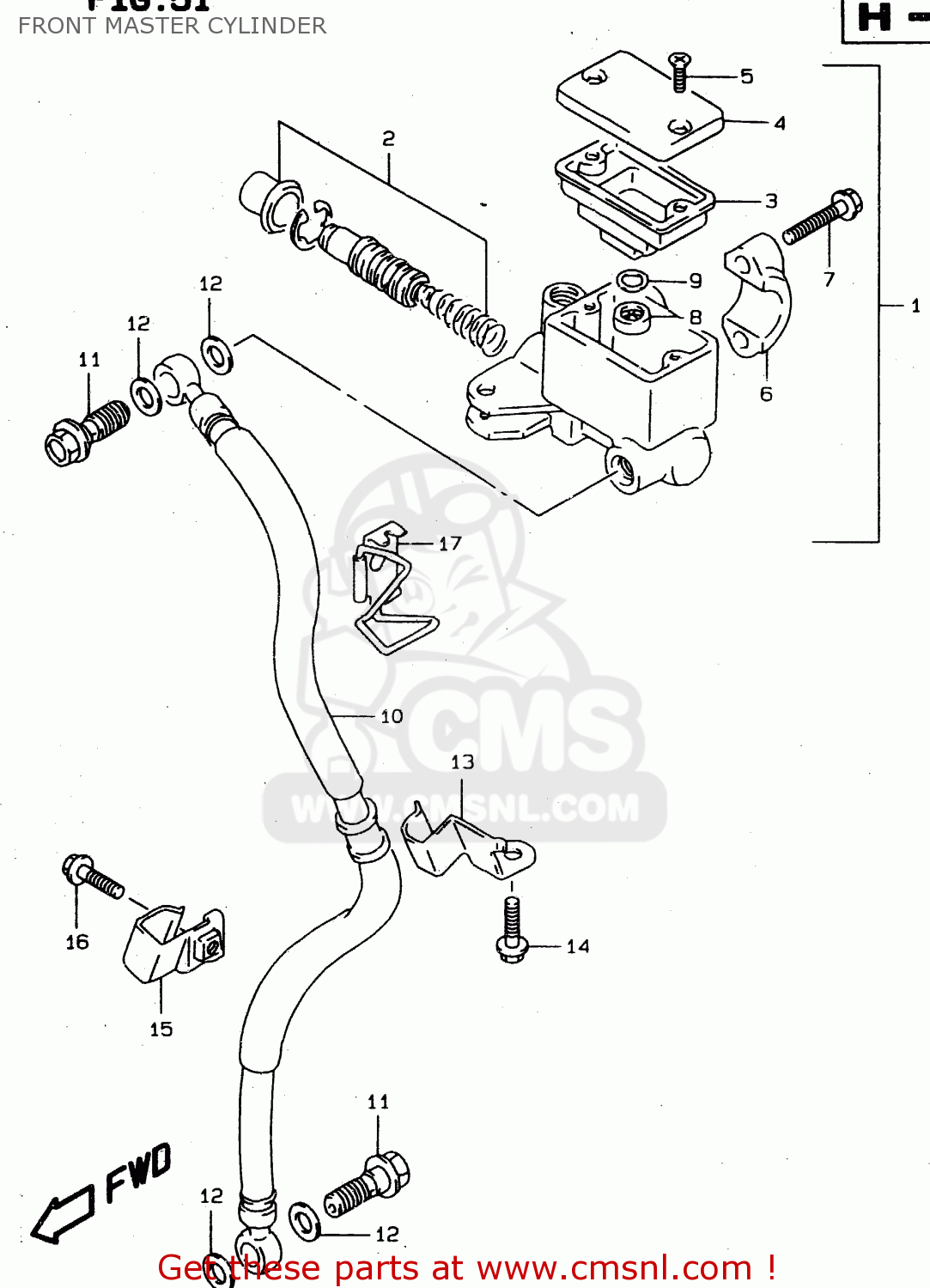

Front master cylinder diagram XF650U 1998 (W) (E22)
FRONT MASTER CYLINDER XF650U 1998 (W) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5960031D00
ref: 1
CYLINDER ASSEMBLY,FRONT MASTER
€ 175.50
2
5960004810
ref: 2
PISTON/CUP SET
€ 37.50
3
5966744B00
ref: 3
DIAPHRAGM
€ 8.00
4
6966924A01
ref: 4
CAP
€ 12.00
5
6968949300
ref: 5
SCREW
€ 1.50
6
5967136500
ref: 6
HOLDER
€ 10.00
7
5967519C00
ref: 7
BOLT(6X25)
€ 3.00
8
5974815400
ref: 8
SEPERATOR
€ 7.50
9
5974915400
ref: 9
PLATE
€ 2.00
10
5948004F00
ref: 10
HOSE,FR BRAKE
€ 104.00
11
0936010042
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5926604F00
ref: 13
CLAMP, BRAKE HOSE UPPER
€ 6.50
14
0155006123
ref: 14
BOLT
€ 2.50
15
5927004F00
ref: 15
CLAMP,FR BRAKE HOSE LWR
€ 7.50
16
0155006163
ref: 16
BOLT
€ 2.50
17
5954004F00
ref: 17
GUIDE,FR BRAKE HOSE
€ 13.00
