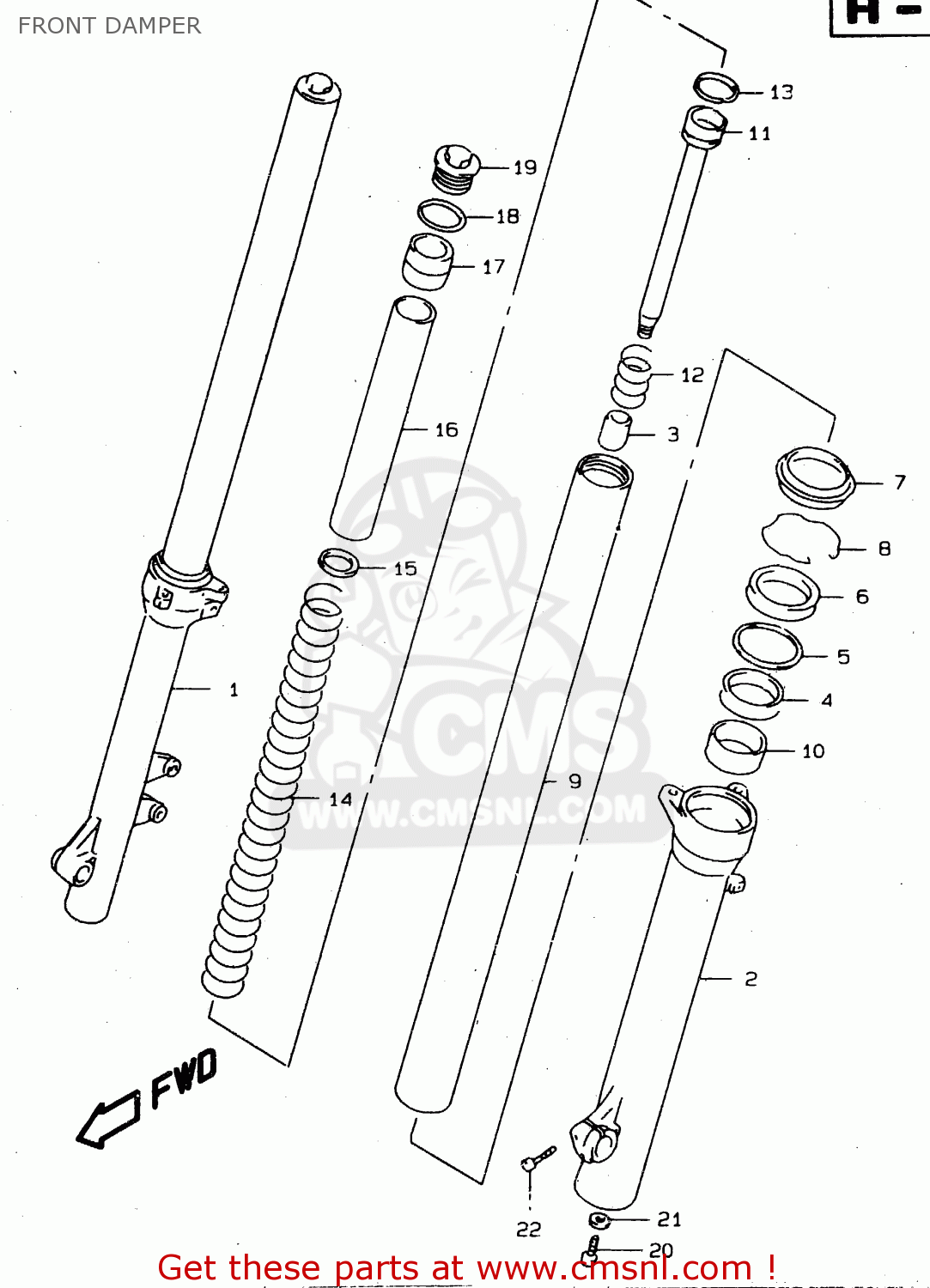

FRONT DAMPER

ref

part #

description

quantity

0

5110304F00
ref: 0

DAMPER ASSY,FR FORK,R

€ 599.50

0

5110404F00
ref: 0

DAMPER ASSY,FR FORK,L

€ 599.50

1

5113004F00
ref: 1

TUBE,OUTER,R

€ 417.00

2

5114004F00
ref: 2

TUBE,OUTER,L

€ 409.50

3

5119506C00
ref: 3

PIECE,OIL LOCK

€ 13.00

4

5116740C00
ref: 4

METAL,SLIDE

€ 13.50

5

5115814200
ref: 5

WASHER

€ 4.00

6

5115304F00
ref: 6

SEAL,OIL

€ 18.50

7

5117304F00
ref: 7

SEAL,DUST

€ 19.00

8

5115614200
ref: 8

RING,STOPPER

€ 4.50

9

5111004F00
ref: 9

TUBE,INNER

€ 459.00

10

5112140C00
ref: 10

PISTON

€ 11.50

11

5119004F00
ref: 11

CYLINDER

€ 87.50

12

5117714330
ref: 12

SPRING,REBOUND

€ 5.50

13

5119631D00
ref: 13

RING,PISTON

€ 6.00

14

5117104F00
ref: 14

SPRING,FR

€ 76.50

15

5117232E00
ref: 15

WASHER

€ 4.00

16

5117504F00
ref: 16

SPACER

€ 21.50

17

5117604F00
ref: 17

SPACER

€ 16.50

18

5111714200
ref: 18

O RING

€ 2.00

19

5135131D00
ref: 19

CAP,FORK

€ 32.50

20

5114716510
ref: 20

BOLT,FORK CYLINDER(10X25)

€ 3.50

21

5114841310
ref: 21

GASKET (NAS)

€ 2.50

22

5113844B00
ref: 22

BOLT,SOCKET HEAD(8X22)

€ 4.00

all assemblies
