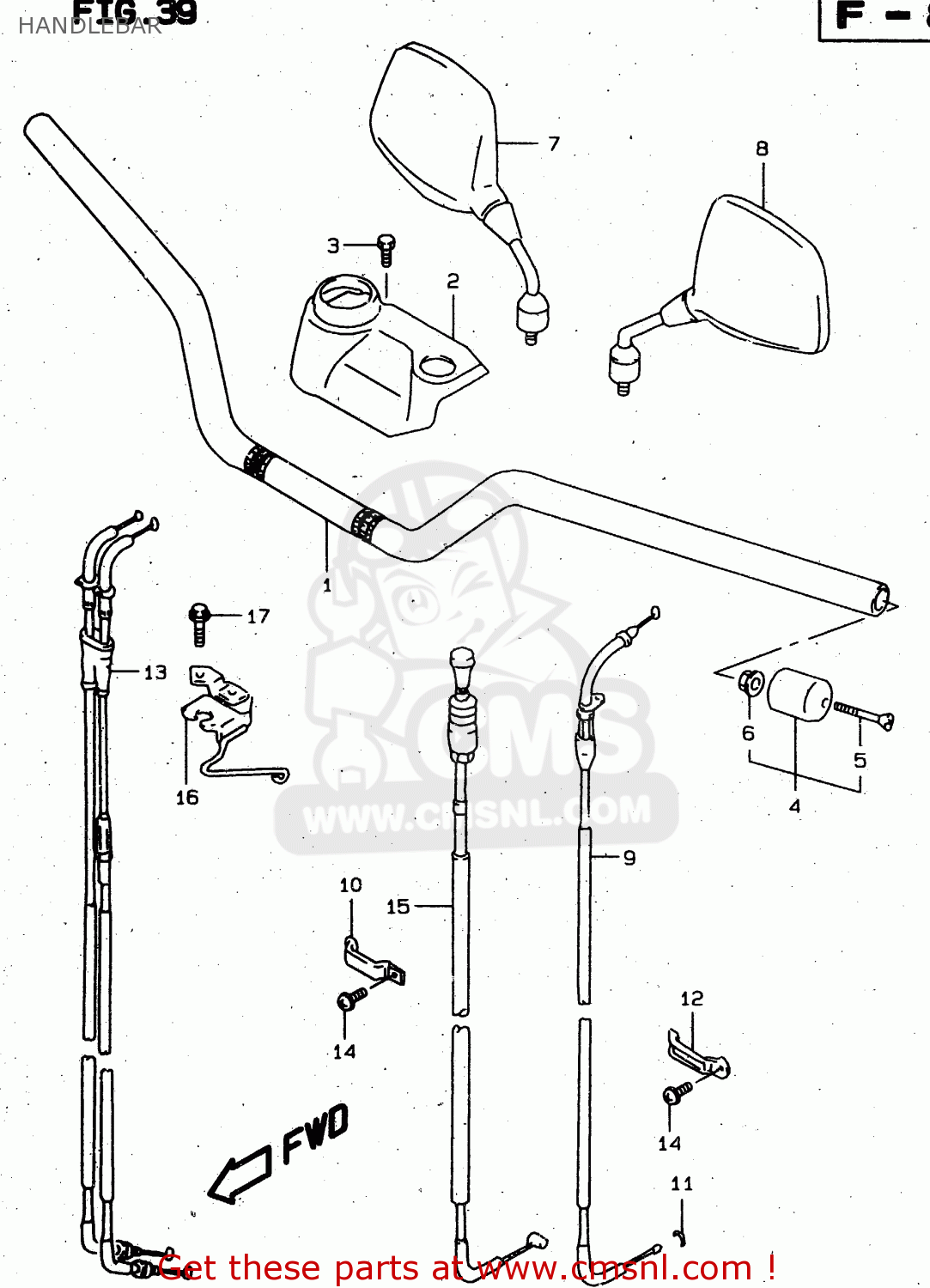

HANDLEBAR

ref

part #

description

quantity

1

5611004F00291
ref: 1

HANDLEBAR

€ 222.00

2

5617104F00
ref: 2

COVER,STEERING HEAD

€ 12.50

3

0913906027
ref: 3

SCREW(6X12)

€ 3.00

4

5620004820
ref: 4
MODEL V

BALANCER SET,HANDLEBAR

€ 42.50

4

5620004821
ref: 4
MODEL W/X

BALANCER SET,HANDLEBAR

€ 42.50

5

0212206653
ref: 5
MODEL V

SCREW

€ 2.50

5

0212206603
ref: 5
MODEL W/X

SCREW

€ 3.00

6

0915906024
ref: 6
MODEL V

NUT

€ 2.00

7

5650004F00
ref: 7

MIRROR ASSY,RR VIEW,R

€ 193.50

7

5650004F10
ref: 7
E24

MIRROR ASSY,RR VIEW,R

€ 0.00

8

5660004F00
ref: 8

MIRROR ASSY,RR VIEW,L

€ 193.50

8

5660004F10
ref: 8
E24

MIRROR ASSY,RR VIEW,L

€ 0.00

9

5820004F00
ref: 9

CABLE ASSY,CLUTCH

€ 75.00

10

0940310307
ref: 10

CLAMP

€ 3.00

11

5863432E00
ref: 11

STOPPER,CLUTCH CABLE

€ 9.50

12

0940309307
ref: 12

CLAMP

€ 2.50

13

5830004F00
ref: 13

CABLE ASSY,THROTTLE

€ 107.00

14

0155006123
ref: 14

BOLT

€ 2.50

15

5840004F00
ref: 15

CABLE ASSY,STARTER

€ 44.00

16

5849004F00
ref: 16

BRACKET,STARTER CABLE

€ 17.50

17

0154706163
ref: 17

BOLT

€ 2.50
