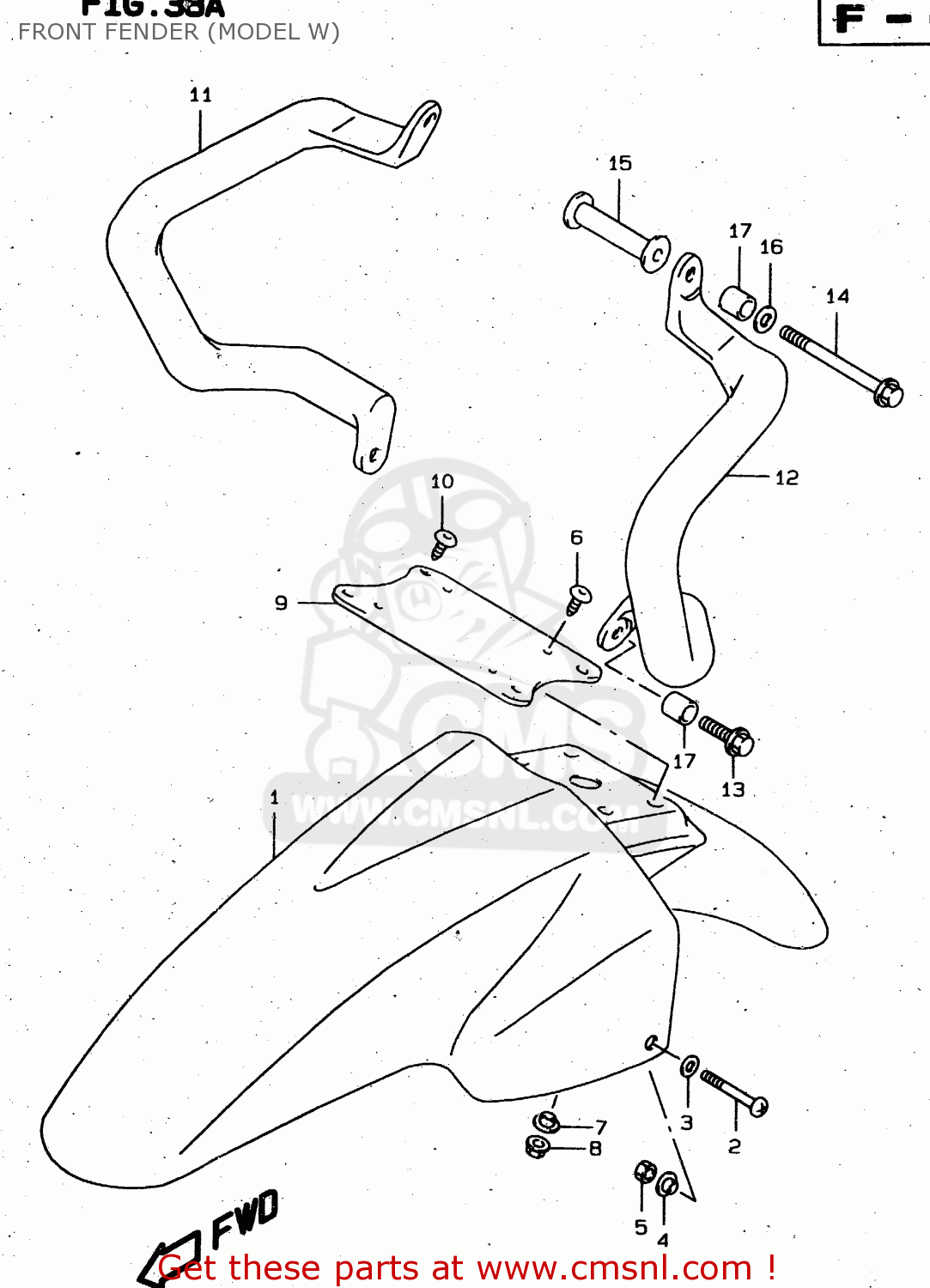

FRONT FENDER (MODEL W)

ref

part #

description

quantity

1

5311104F00Y2D
ref: 1
FOR J9W, H3P

FENDER,FR

€ 142.50

1

5311104F00Z94
ref: 1
FOR K1A

FENDER,FR

€ 136.00

2

0214206457
ref: 2

SCREW

€ 2.00

3

0916006084
ref: 3

WASHER(6.5X18X1.6)

€ 2.00

4

0916906045
ref: 4

WASHER

€ 2.50

5

0831931063
ref: 5

NUT

€ 2.50

6

0913905042
ref: 6

SCREW(5X16)

€ 2.50

7

0916905010
ref: 7

WASHER

€ 3.00

8

0831610053
ref: 8

NUT

€ 2.50

9

5311404F00
ref: 9

BRACE,FR FENDER

€ 23.00

10

5311704F00
ref: 10

BOLT, BRACE

€ 4.50

11

9421104F00Y2D
ref: 11
FOR J9W, H3P

BAR,EXTERIOR,R

€ 73.50

11

9421104F00Z94
ref: 11
FOR K1A

BAR,EXTERIOR,R

€ 76.50

12

9422104F00Y2D
ref: 12
FOR J9W, H3P

BAR, EXTERIOR LH (SLIVER)

€ 79.50

12

9422104F00Z94
ref: 12
FOR K1A

BAR, EXTERIOR LH (ORANGE)

€ 53.50

13

0911606144
ref: 13

BOLT 6X16

€ 2.50

14

0155006753
ref: 14

BOLT

€ 2.50

15

9423104F00
ref: 15

SPACER,EXTERIOR BAR,L

€ 8.50

16

0916006109
ref: 16

WASHER(6.5X18X1.6)

€ 2.00

17

0918006247
ref: 17

SPACER(6.1X8X7)

€ 1.50

all assemblies
