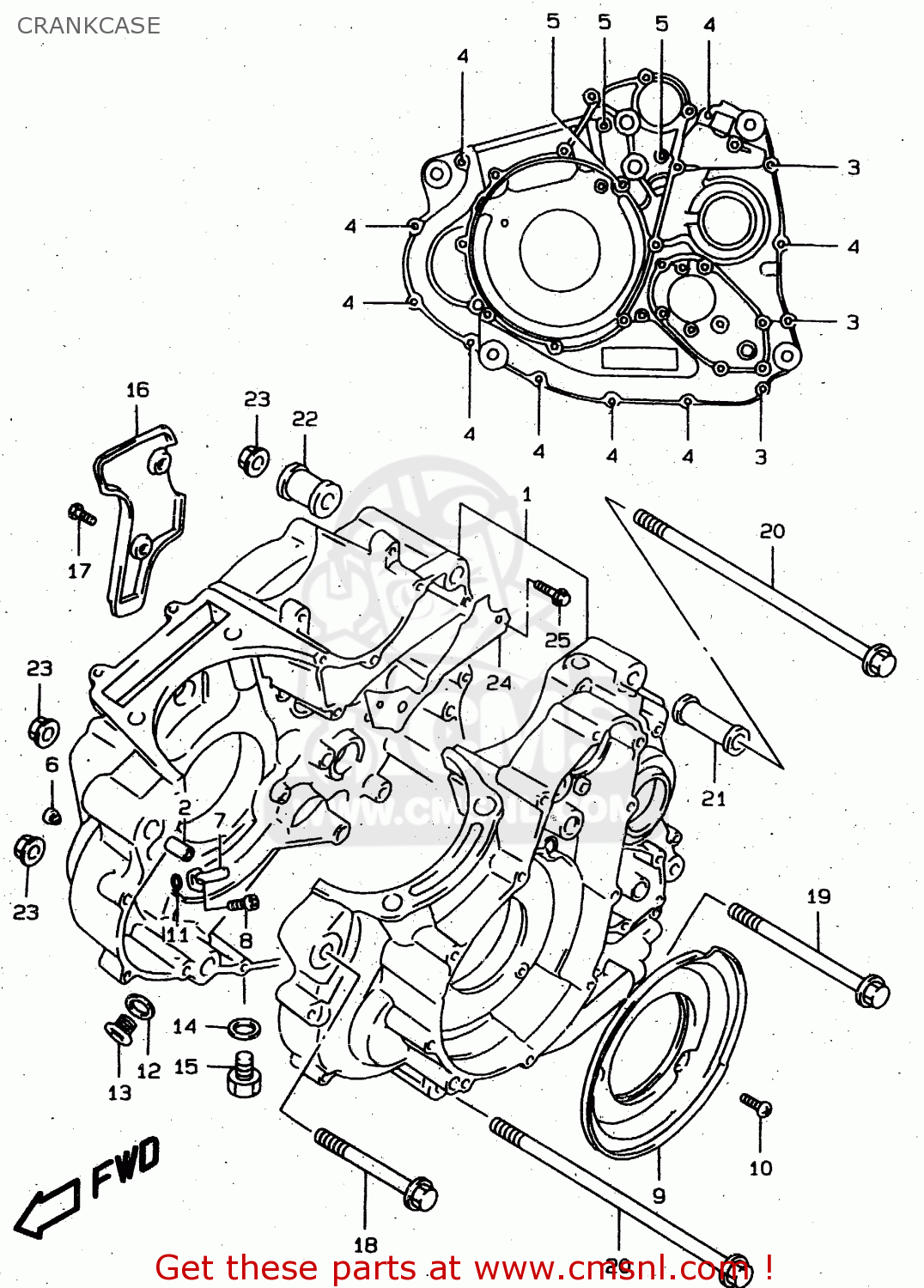

CRANKCASE

ref

part #

description

quantity

1

1130032861
ref: 1

CRANKCASE SET

€ 825.00

2

0920210006
ref: 2

PIN

€ 6.50

3

0154706607
ref: 3

BOLT

€ 2.50

4

0154706407
ref: 4

BOLT

€ 2.50

5

0154706803
ref: 5

BOLT

€ 3.50

6

1118043410
ref: 6

JET,OIL GALLERY

€ 10.50

7

1139004F00
ref: 7

JET,PISTON COOLING

€ 14.50

8

0910606075
ref: 8

BOLT(6X12)

€ 2.50

9

1132332E00
ref: 9

SEPARATOR,CRANKCASE OIL

€ 8.50

10

0211206123
ref: 10

SCREW

€ 1.50

11

0928004004
ref: 11

O RING(D:1.2,ID:4)

€ 2.00

12

0916814002
ref: 12

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

13

0924814005
ref: 13

PLUG,14X12

€ 5.00

14

0916814002
ref: 14

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

15

0924714001
ref: 15
MODEL V/W

PLUG

€ 5.00

15

0924714026
ref: 15
MODEL X

PLUG(14X12)

€ 3.50

16

1131732E00
ref: 16

COVER,BREATHER

€ 9.00

17

0211206123
ref: 17

SCREW

€ 1.50

18

0910310110
ref: 18

BOLT(10X100)

€ 6.50

19

0910310237
ref: 19

BOLT(10X130)

€ 5.50

20

0910310239
ref: 20

BOLT(10X235)

€ 12.00

21

1161045410
ref: 21

SPACER,ENGINE MOUNT(L:65)

€ 11.50

22

1161020C00
ref: 22

SPACER,ENGINE MOUNT(L27)

€ 10.00

23

0915910058
ref: 23

NUT

€ 4.00

24

1131832E00
ref: 24
MODEL W/X

PLATE,BREATHER

€ 9.00

25

0154706123
ref: 25
MODEL W/X

BOLT

€ 2.00

all assemblies
