HEADLAMP (E2, E24)

XF650U 1998 (W) (E22)

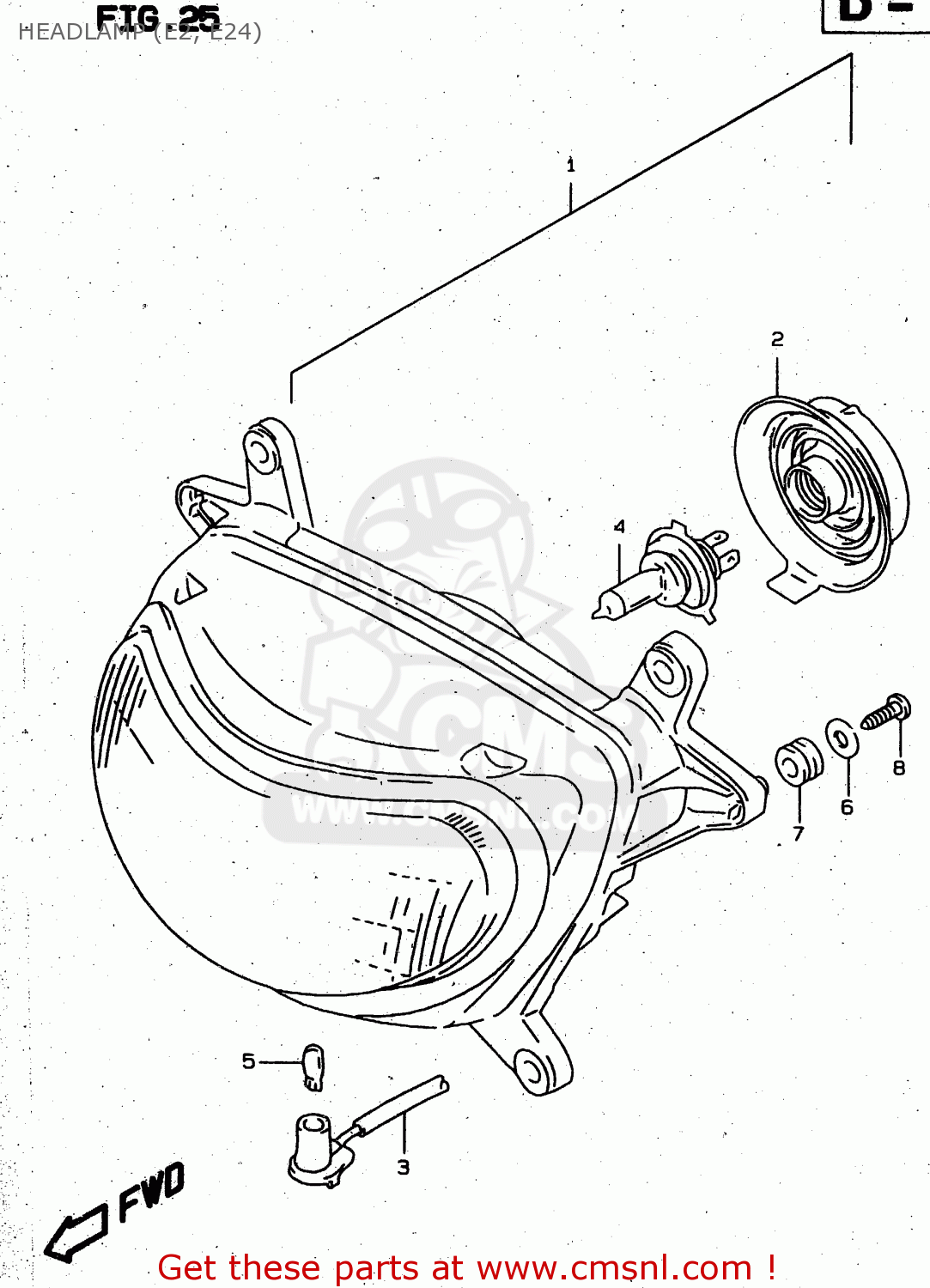

Headlamp (e2, e24) diagram XF650U 1998 (W) (E22)

HEADLAMP (E2, E24) XF650U 1998 (W) (E22)
HEADLAMP (E2, E24) XF650U 1998 (W) (E22)
HEADLAMP (E2, E24) XF650U 1998 (W) (E22)
prices are in EUR
ref
part #
description
quantity
1
3510004F20999
ref: 1
E2
HEADLAMP ASSY
3510004F20999
€ 373.00
1
3510004F30999
ref: 1
E24
HEADLAMP ASSY
€ 0.00
2
3517342E00
ref: 2
COVER
€ 20.50
3
3611804F20
ref: 3
E2
CORD ASSY
€ 16.50
4
0947112185
ref: 4
BULB(12V60/55W,H4)
0947112185
€ 8.00
5
0947112081
ref: 5
E2
BULB(12V5W)
0947112081
€ 1.50
6
0916005045
ref: 6
<-09160-05003
WASHER(5.5X18X1)
0916005045
€ 2.00
7
0932008051
ref: 7
CUSHION
0932008051
€ 7.50
8
0351205163
ref: 8
SCREW
0351205163
€ 2.50
