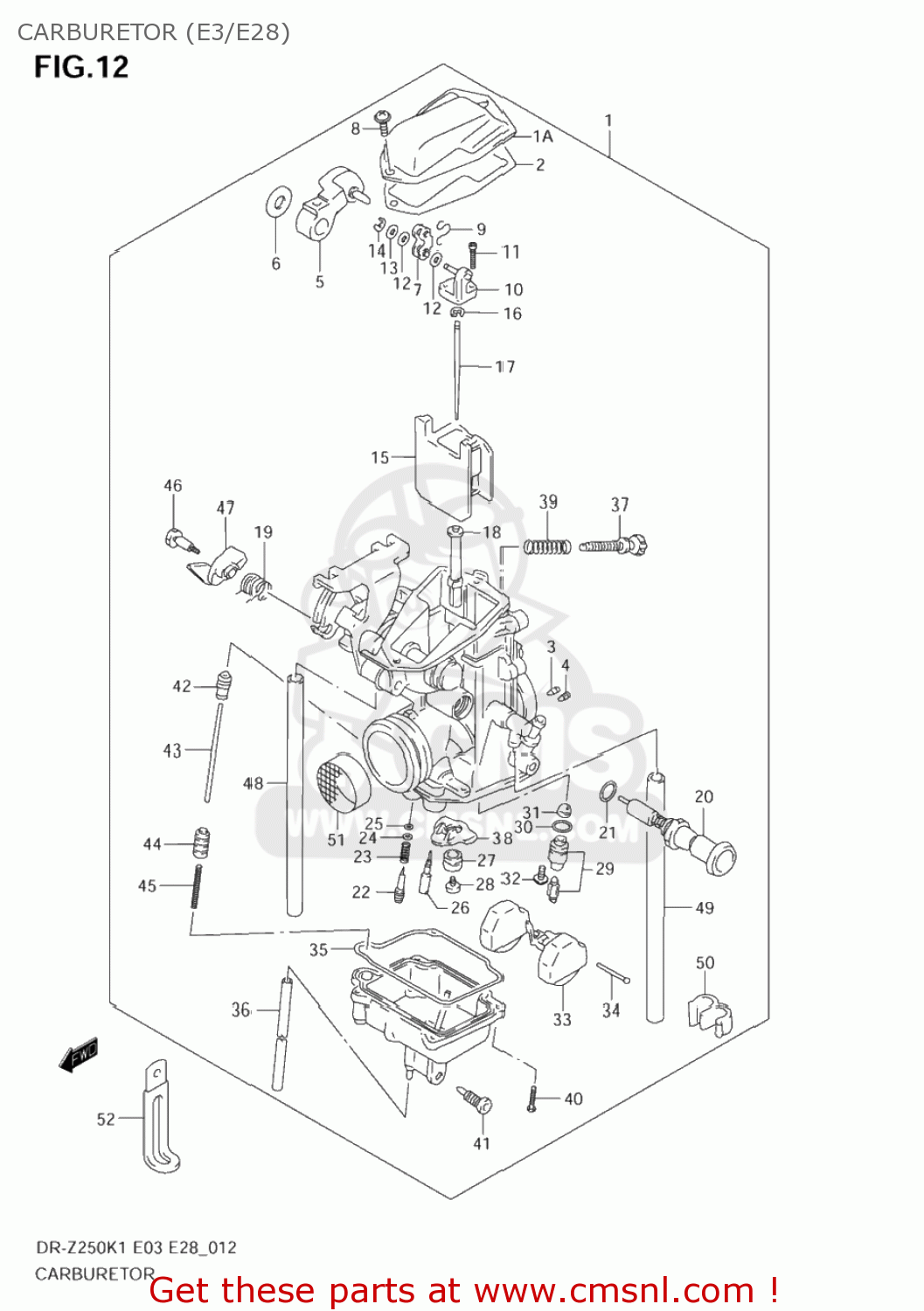

CARBURETOR (E3/E28)

ref

part #

description

quantity

1

1320013E30
ref: 1

CARBURETOR ASSY

€ 479.00

1A

1326113E00
ref: 1A

COVER,TOP

€ 0.00

2

1326627A00
ref: 2

GASKET,CARBURETOR TOP (NAS)

€ 6.50

3

0949324007
ref: 3

JET,AIR(1.2)

€ 14.50

4

0949332003
ref: 4

JET,AIR(1.6)

€ 10.00

5

1354113E00
ref: 5

LEVER SET,THROTTLE

€ 37.50

6

1357538200
ref: 6

WASHER

€ 5.00

7

1344714A00
ref: 7

PLATE

€ 18.00

8

0211234103
ref: 8
02112-3410A

SCREW

€ 2.00

9

1344613E00
ref: 9

CLIP ASSY

€ 0.00

10

1339827A02
ref: 10

CONNECTOR

€ 19.50

11

0211203123
ref: 11
02112-0312B

SCREW

€ 2.50

12

1344514A00
ref: 12

GASKET (NAS)

€ 3.50

13

0916004024
ref: 13

WASHER(4.5X8X0.5)

€ 2.00

14

1341538300
ref: 14

E RING

€ 2.00

15

1355113E30
ref: 15

VALVE,PISTON

€ 124.00

16

1339440D20
ref: 16

E RING

€ 5.00

17

1338313E30
ref: 17

NEEDLE,JET(6FN3-3)

€ 13.00

18

1334113E30
ref: 18

JET,NEEDLE(P-6M)

€ 31.50

19

1349414D00
ref: 19

SPRING

€ 7.00

20

1341142A20
ref: 20

PLUNGER ASSY

€ 29.00

21

1327847090
ref: 21

O RING

€ 2.50

22

1327913E30
ref: 22

SCREW,PILOT

€ 14.50

23

1326847070
ref: 23

SPRING

€ 5.50

24

1329129900
ref: 24

WASHER

€ 2.00

25

1329529900
ref: 25

O RING,PILOT AIR SCREW

€ 4.00

26

0949237002
ref: 26

JET,PILOT(37.5)

€ 10.00

27

1333113A00
ref: 27

RING,MAIN JET FIXING

€ 6.00

28

0949125011
ref: 28

JET,MAIN(127.5)

€ 11.00

29

1337005530
ref: 29

VALVE ASSY,NEEDLE

€ 68.50

30

1337435C00
ref: 30

O RING,NEEDLE VALVE SEAT

€ 6.00

31

1337619F00
ref: 31

FILTER

€ 7.00

32

1360243410
ref: 32

SCREW

€ 2.50

33

1325028A00
ref: 33

FLOAT

€ 36.00

34

1325492311
ref: 34

PIN,FLOAT

€ 2.00

35

1325127A00
ref: 35

O RING,FLOAT CHAMBER

€ 9.50

36

0935230503600
ref: 36

HOSE(3X5X600)

€ 9.50

37

1326713D01
ref: 37

ADJUSTER

€ 15.50

38

1333113E00
ref: 38

RING

€ 5.50

39

1326813E00
ref: 39

SPRING

€ 7.00

40

1360248B10
ref: 40

SCREW

€ 3.50

41

1324702340
ref: 41

PLUG,DRAIN

€ 6.00

42

1349944500
ref: 42

BOOT, ACCELE PUMP ROD

€ 12.00

43

1348714A00
ref: 43

ROD,PLUNGER

€ 7.00

44

1349327A00
ref: 44

PLUNGER

€ 10.00

45

1327109400
ref: 45

SPRING

€ 5.50

46

1361314A00
ref: 46

BOLT

€ 8.50

47

1349014A00
ref: 47

LEVER

€ 10.50

48

0935250903600
ref: 48

HOSE(5X9X600)

€ 33.50

49

0935250903600
ref: 49

HOSE(5X9X600)

€ 33.50

50

0940800033
ref: 50

CLAMP

€ 2.50

51

1313019B00
ref: 51

NET,INTAKE

€ 0.00

52-1

0940406432
ref: 52-1

CLAMP(L:65)

€ 3.00

52-2

0940406429
ref: 52-2

CLAMP(L:45)

€ 3.00
