OIL COOLER

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

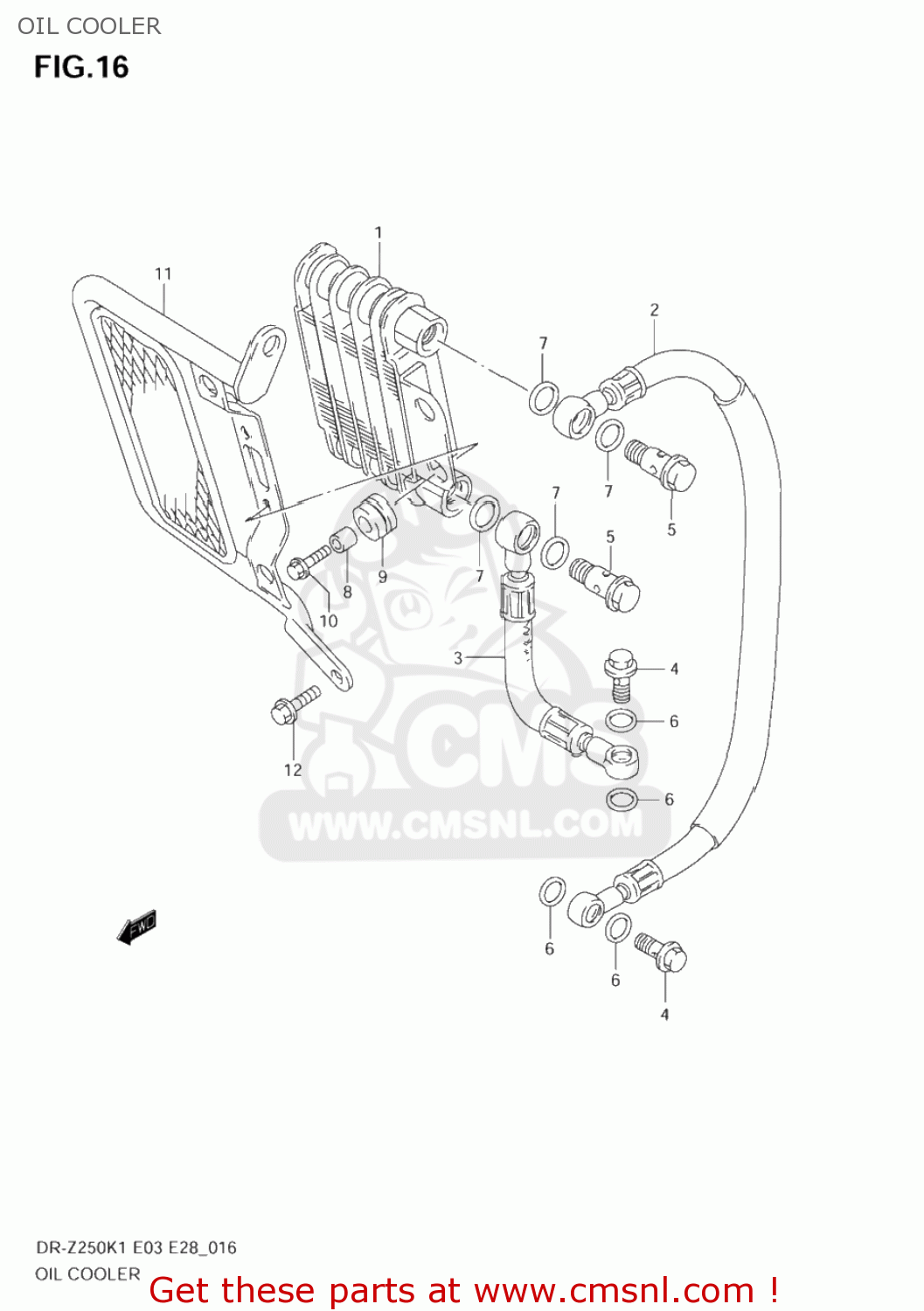

Oil cooler diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1660013E00
ref: 1

COOLER ASSY,OIL

€ 358.50

1646013E00
ref: 2

HOSE,OIL COOLER UPR

€ 91.00

1647013E00
ref: 3

HOSE,OIL COOLER LWR

€ 85.50

0936010032
ref: 4
09360-10055

BOLT UNION

€ 3.00

5-1

0936012006
ref: 5-1

BOLT UNION

€ 13.50

5-2

0936012012
ref: 5-2
09360-12012-A05

BOLT UNION

€ 8.00

0916810007
ref: 6

GASKET(10.1X16X1) (NAS)

€ 2.00

0916814011
ref: 7

GASKET(14X20X1.5) (NAS)

€ 2.00

0918006310
ref: 8

SPACER(6.5X10X10)

€ 2.00

0932010015
ref: 9

CUSHION

€ 2.50

10-1

0911606115
ref: 10-1

BOLT(6X20)

€ 2.00

10-2

0911606167
ref: 10-2

BOLT(6X20)

€ 2.00

1664013E01
ref: 11

GUARD,OIL COOLER

€ 0.00

0155008203
ref: 12
01550-0820A

BOLT

€ 3.00
