TRIM METER

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

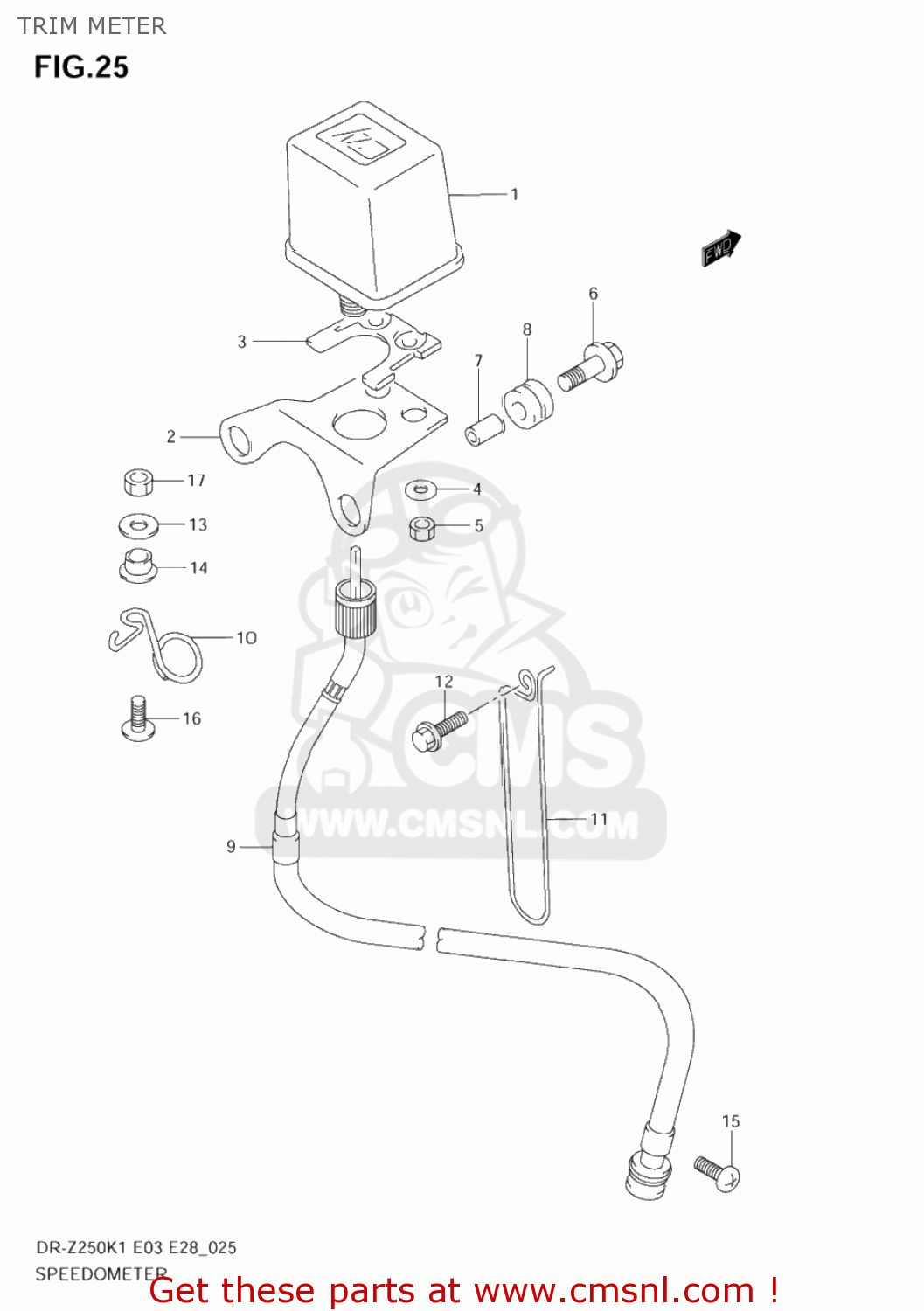

Trim meter diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

TRIM METER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
TRIM METER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
TRIM METER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1-1
3472105D20
ref: 1-1
TRIP METER
€ 136.50
1-2
3472105D30
ref: 1-2
TRIP METER
3472105D30
€ 140.50
2
3472514D00
ref: 2
BRACKET
3472514D00
€ 44.00
3
3472605D20
ref: 3
CUSHION
€ 4.50
4
0916004022
ref: 4
WASHER(4.3X14X0.8)
€ 1.50
5
0831000047
ref: 5
NUT
0831000047
€ 2.00
6
0911806086
ref: 6
BOLT(6X25)
0911806086
€ 3.00
7
0918006248
ref: 7
SPACER(6.1X8X9.5)
0918006248
€ 2.50
8
0932008501
ref: 8
CUSHION
0932008501
€ 3.00
9
3491014D13
ref: 9
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
3491014D13
€ 40.50
10
3493814D21
ref: 10
GUIDE,SPEEDOMETER CABLE
3493814D21
€ 6.50
11
3493814D30
ref: 11
GUIDE,METER CABLE NO.2
3493814D30
€ 8.00
12
0911606168
ref: 12
BOLT(6X16)
0911606168
€ 2.50
13
0916006109
ref: 13
WASHER(6.5X18X1.6)
0916006109
€ 2.00
14
0916906054
ref: 14
09169-06053
WASHER
0916906054
€ 2.00
15
0211205163
ref: 15
02112-0516A
SCREW
0211205163
€ 2.00
16
0214206163
ref: 16
02142-0616A
SCREW
0214206163
€ 2.50
17
0831000063
ref: 17
08310-0006A
NUT 6MM
0831000063
€ 2.00
