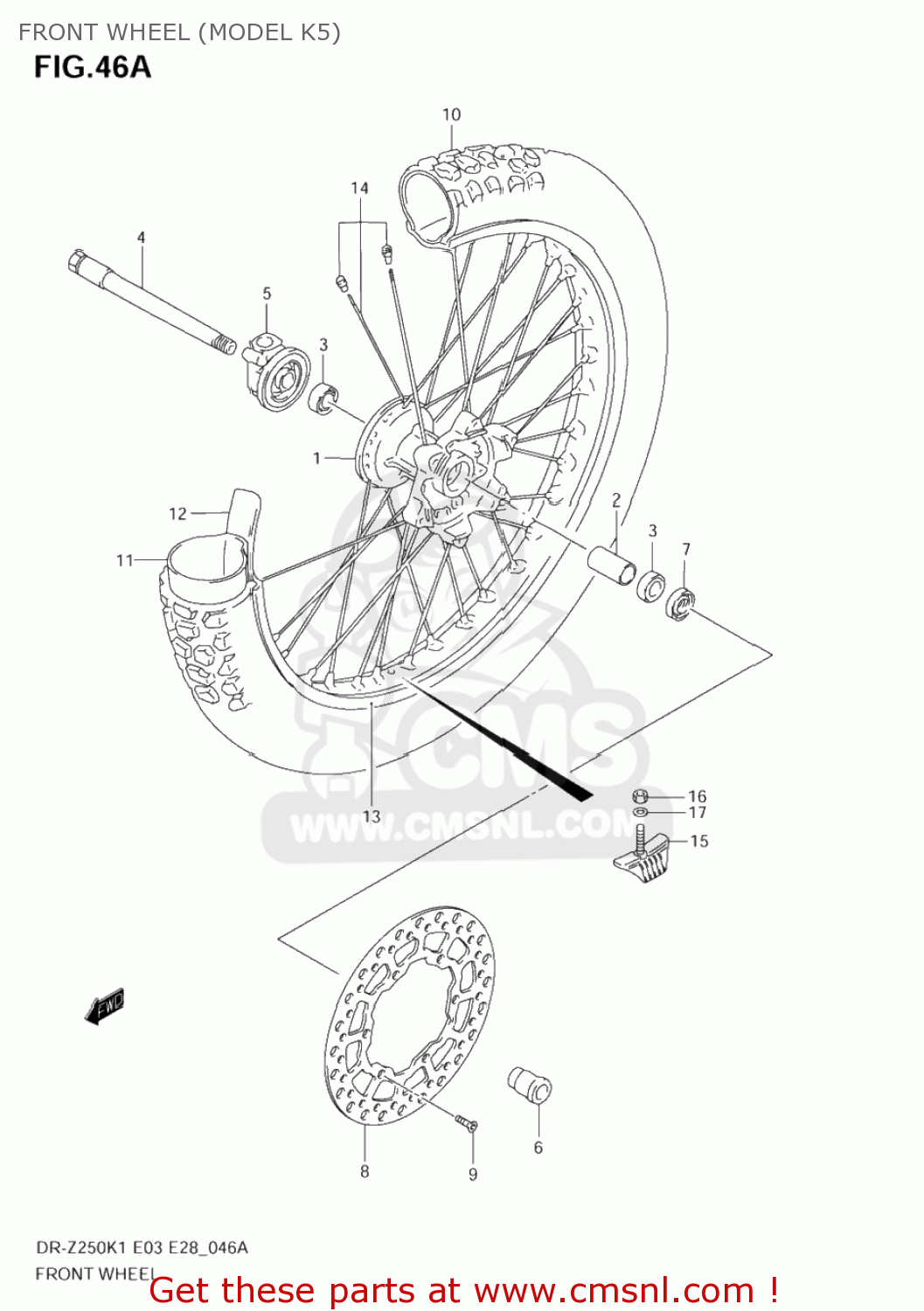

FRONT WHEEL (MODEL K5)

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

Front wheel (model k5) diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

5411129E00
ref: 1

HUB,FR WHEEL

€ 155.50

5473001B00
ref: 2

SPACER,FR HUB BEARING

€ 34.00

0812360037
ref: 3

BEARING

€ 16.50

5471105D01
ref: 4

AXLE,FR

€ 52.00

5460005D00
ref: 5

BOX ASSY,SPEEDOMETER GEAR

€ 66.00

5475105D00
ref: 6

SPACER,FR AXLE,L

€ 12.50

0928423001
ref: 7

SEAL,OIL(23X35X6)

€ 5.00

5922129F00
ref: 8

DISC,FR BRAKE,L

€ 186.50

0912006011
ref: 9
09120-06014

SCREW

€ 2.50

5511036E10
ref: 10

TIRE,FR(80/100-21 51M D739F)

€ 0.00

5511036E10
ref: 10

TIRE,FR(80/100-21 51M D739F)

€ 0.00

5520029F00
ref: 11

TUBE ASSY,WHEEL INNER

€ 26.00

5526144AF0
ref: 12

PROTECTOR,WHL INR TUBE

€ 3.00

5531128C00
ref: 13
55311-28C01

RIM,FRONT WHEEL (1.60X2

€ 322.50

5532028E00
ref: 14

SPOKE SET,FR WHEEL

€ 97.00

6527008G00
ref: 15

STOPPER,BEAD

€ 34.00

0831000083
ref: 16
08310-0008A

NUT

€ 1.50

0832201083
ref: 17
08322-0108A

WASHER

€ 1.50

FRONT WHEEL (MODEL K5)

all assemblies
