HEADLAMP COVER (MODEL K1)

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

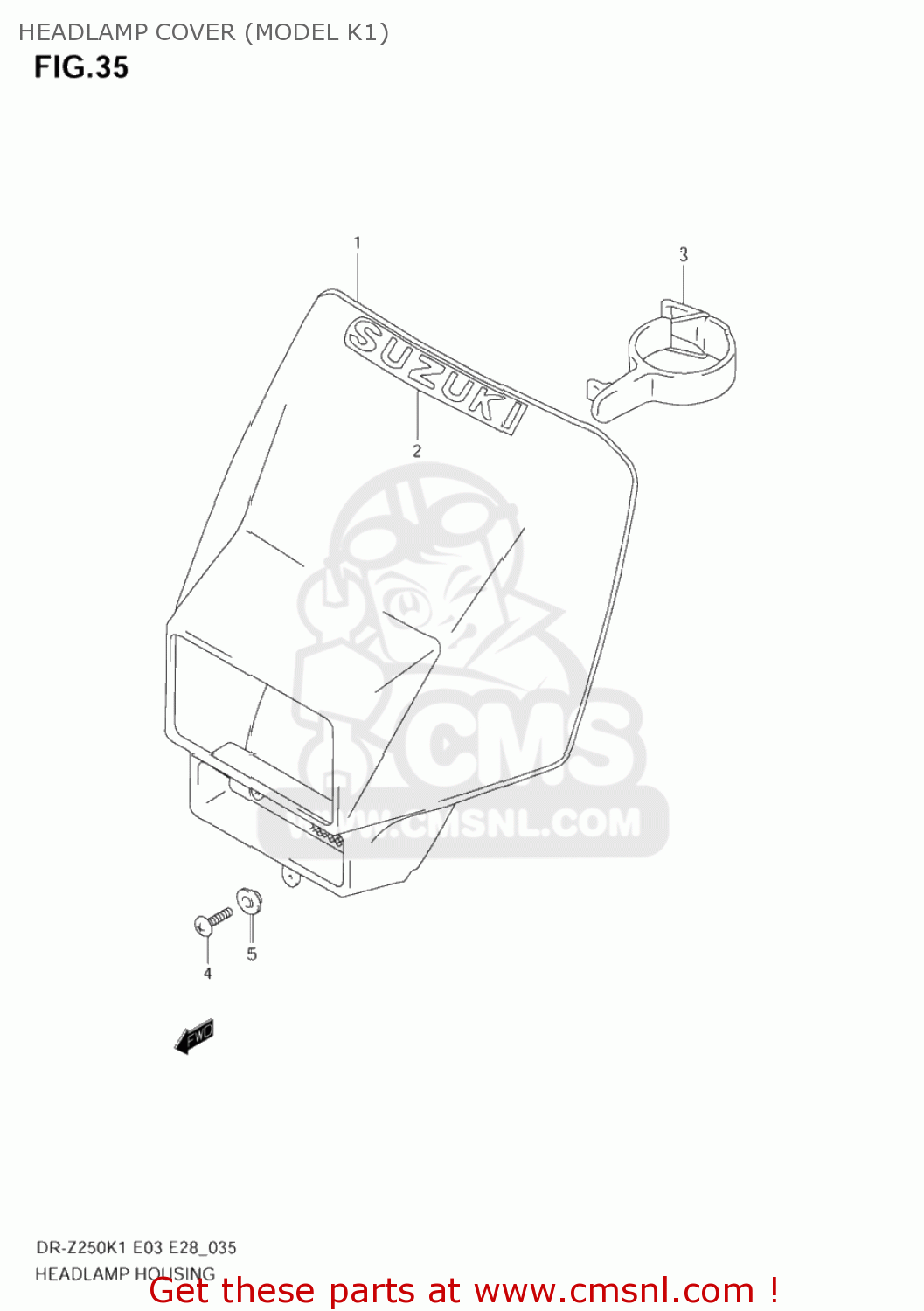

Headlamp cover (model k1) diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

HEADLAMP COVER (MODEL K1) DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

HEADLAMP COVER (MODEL K1) DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1

5181103D01YR1
ref: 1

COVER,HEADLAMP

€ 57.00

2

6817144B00FR3
ref: 2

EMBLEM,SUZUKI

€ 6.00

3

5185014D00
ref: 3

BAND,HEADLAMP COVER

€ 20.00

4

0913605048
ref: 4

SCREW(5X12)

€ 3.00

5

0916905012
ref: 5

WASHER

€ 3.00
