FOOTREST

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

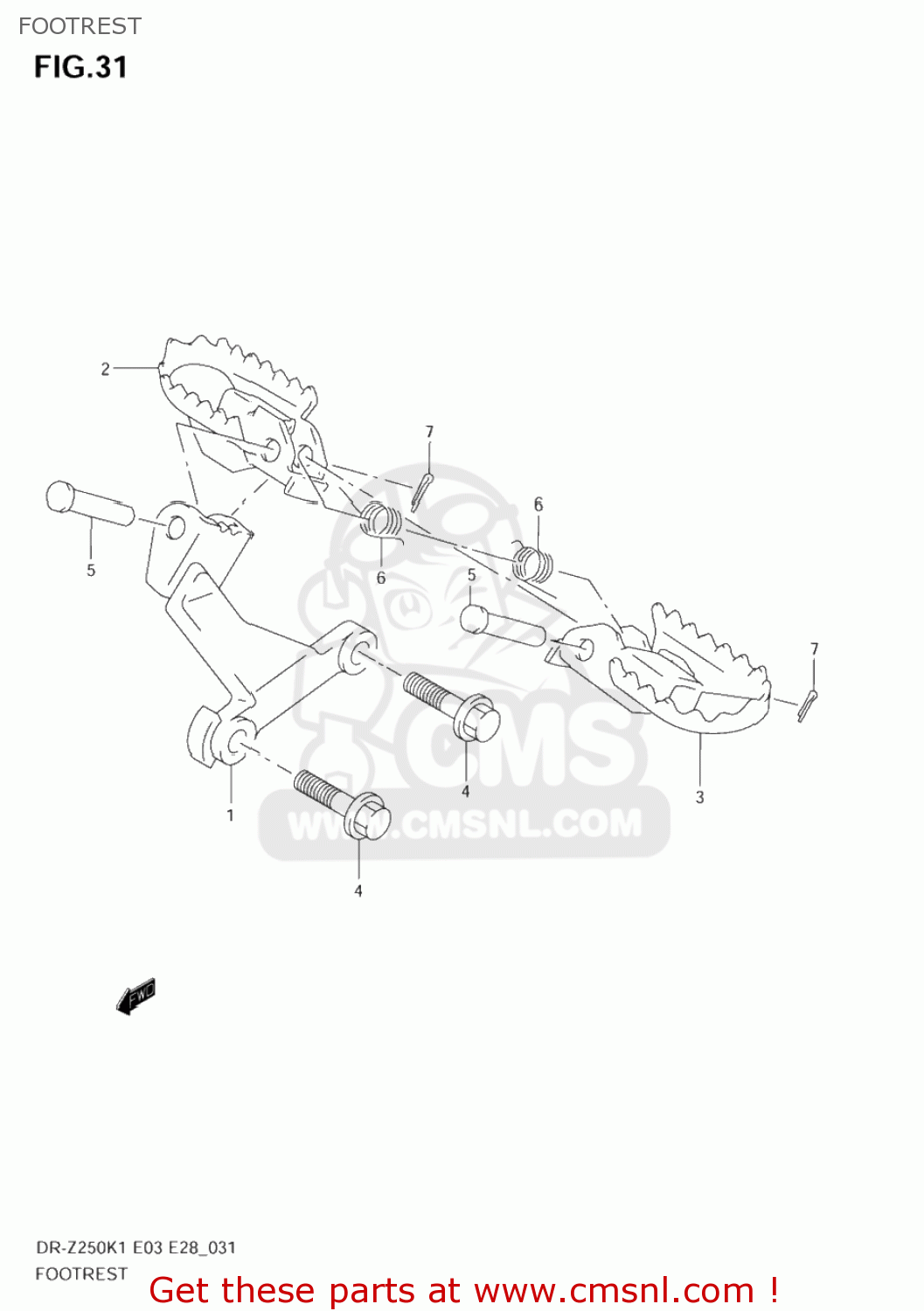

Footrest diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

4351014D11019
ref: 1-1
43510-14D12-019

BRACKET,FRONT FOOTREST

€ 53.50

1-2

4351014D12019
ref: 1-2

BRACKET,FR FOOTREST,R

€ 53.50

4355014D30
ref: 2
43550-03B00-019

FOOTREST,FRONT,RIGHT

€ 17.50

4356014D30
ref: 3
43560-03B00-019

FOOTREST,FRONT,LEFT

€ 17.50

0910310245
ref: 4

BOLT(10X40)

€ 5.50

0920010013
ref: 5

PIN

€ 2.50

0944815004
ref: 6

SPRING

€ 2.50

0411120158
ref: 7
04111-2015A

PIN

€ 1.50
