FRAME COVER

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

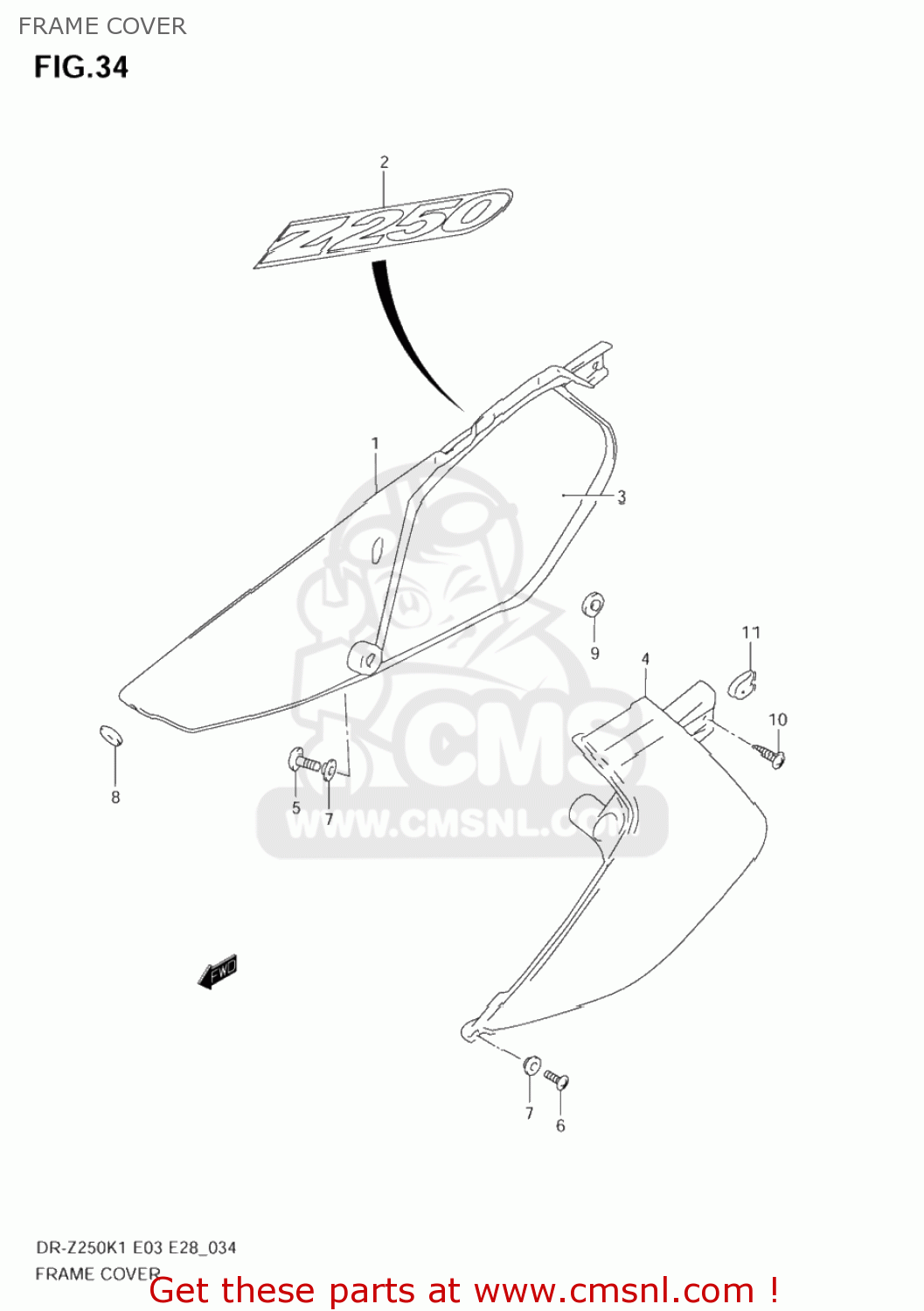

Frame cover diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

4711113E00YR1
ref: 1-1
47111-13E00-YU1

COVER, FRAME RH (YELLOW)

€ 0.00

1-2

4711113E00YU1
ref: 1-2

COVER,FRAME,R(YELLOW)

€ 0.00

1-3

4711113E0030H
ref: 1-3

COVER,FRAME,R(WHITE)

€ 44.50

6813113E10FR4
ref: 2
68131-13E11-FR4

EMBLEM,FRAME CO

€ 6.00

4716613E00
ref: 3

SHIELD,FRAME COVER,R

€ 0.00

4-1

4721113E00YR1
ref: 4-1
47211-13E00-YU1

COVER, FRAME LH (YELLOW)

€ 0.00

4-2

4721113E00YU1
ref: 4-2

COVER,FRAME,L(YELLOW)

€ 0.00

4-3

4721113E0030H
ref: 4-3

COVER,FRAME,L(WHITE)

€ 36.50

0214206127
ref: 5

SCREW 6X12

€ 1.50

0214206167
ref: 6

SCREW

€ 2.00

0916906028
ref: 7
09169-06041

WASHER

€ 2.00

0932008013
ref: 8

CUSHION

€ 4.00

0932110018
ref: 9

CUSHION

€ 5.00

0354115123
ref: 10
03541-1512B

SCREW

€ 2.50

0914805004
ref: 11
09148-05013

NUT

€ 1.50

FRAME COVER
