CYLINDER

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

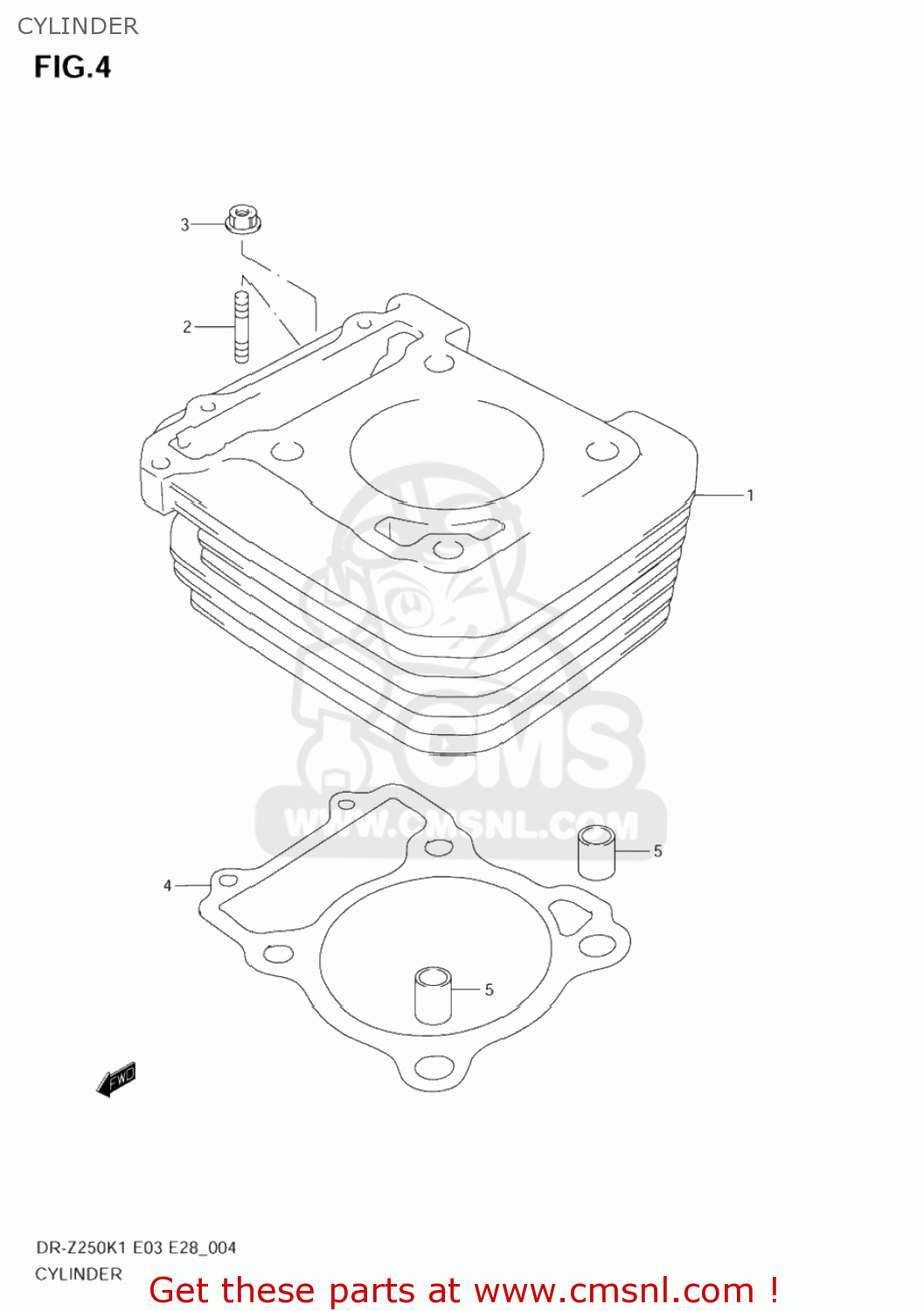

Cylinder diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

CYLINDER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

CYLINDER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

1121113E000F0
ref: 1-1

CYLINDER

€ 480.00

1-2

1121113E100F0
ref: 1-2

CYLINDER

€ 0.00

2

0142106203
ref: 2
01421-0620A

STUD,M6X1X32

€ 2.50

3

0831610063
ref: 3
08316-1006B

NUT

€ 2.50

4-1

1124113E02
ref: 4-1
11241-13E10

GASKET,CYLINDER

€ 17.00

4-2

1124113E10
ref: 4-2

GASKET,CYLINDER

€ 17.00

5

0421113189
ref: 5

PIN

€ 2.50
