CYLINDER HEAD COVER

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

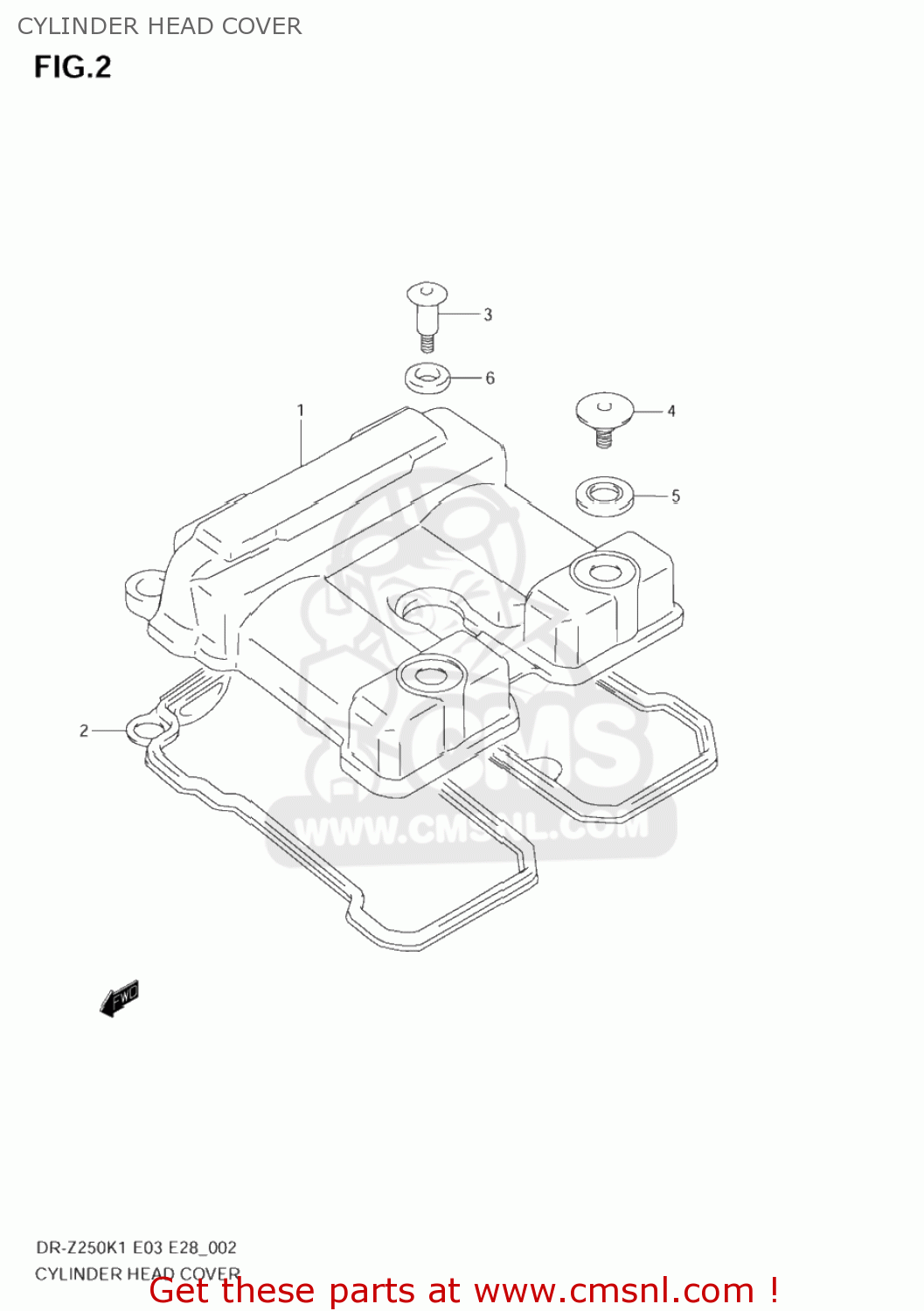

Cylinder head cover diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

CYLINDER HEAD COVER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

CYLINDER HEAD COVER DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

1-1

1117113E00
ref: 1-1

COVER,CYLINDER HEAD

€ 0.00

1-2

1117113E10
ref: 1-2

COVER,CYLINDER HEAD

€ 0.00

2

1117313E00
ref: 2

GASKET,CYL HEAD COVER

€ 30.00

3

0910607010
ref: 3

BOLT(7X31)

€ 4.50

4

0910607015
ref: 4

BOLT(7X18.5)

€ 6.00

5

1119113E00
ref: 5

WASHER,HEAD COVER

€ 4.00

6

1119213E00
ref: 6

CUSHION,HEAD COVER BOLT

€ 4.50
