REAR COMBINATION LAMP

DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

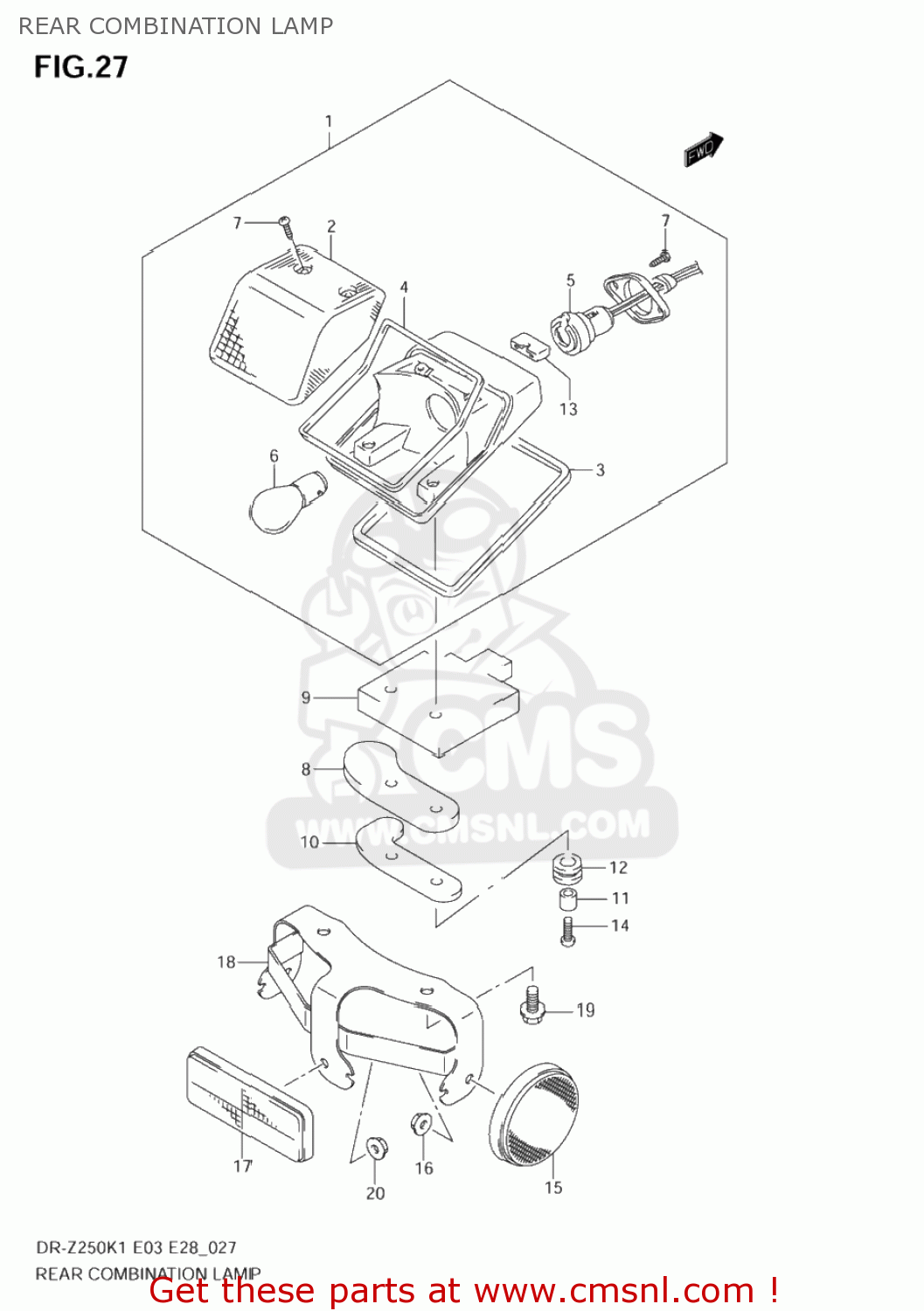

Rear combination lamp diagram DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250

REAR COMBINATION LAMP DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
REAR COMBINATION LAMP DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
REAR COMBINATION LAMP DR-Z250 2001 (K1) USA (E03) DRZ250 DR Z250
prices are in EUR
ref
part #
description
quantity
1
3571013E10
ref: 1
LAMP ASSY, REAR COMB
€ 123.50
2
3571213E00
ref: 2
LENS
3571213E00
€ 14.00
3
3571313E00
ref: 3
GASKET
€ 4.00
4
3571313E10
ref: 4
GASKET
€ 0.00
5
3571813E00
ref: 5
SOCKET & CORD
€ 0.00
6
0947112083
ref: 6
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
7
0321104123
ref: 7
03211-0412A
SCREW
0321104123
€ 1.50
8
3578113E00
ref: 8
CUSHION,BRACKET
€ 0.00
9
3578113E10
ref: 9
CUSHION,LWR
€ 0.00
10
3579313E00
ref: 10
BRACKET,RR COMBI LAMP LWR
€ 0.00
11
0918006267
ref: 11
SPACER(6.5X9X12.5)
0918006267
€ 3.00
12
0932009016
ref: 12
CUSHION
0932009016
€ 2.50
13
0932902002
ref: 13
CUSHION
0932902002
€ 1.50
14
0211206203
ref: 14
02112-0620A
SCREW, 6X20
0211206203
€ 2.00
15
3597030910
ref: 15
REFLEX REFLECTOR,RR
3597030910
€ 47.50
16
0831610053
ref: 16
08316-1005A
NUT
0831610053
€ 2.50
17
3597007F00
ref: 17
35970-07F01
REFLECTOR ASSEMBLY,REAR
€ 20.50
18
3597413E00
ref: 18
BRACKET,SIDE & RR RR
€ 0.00
19
0155006123
ref: 19
01550-0612A
BOLT
0155006123
€ 2.50
20
0831610053
ref: 20
08316-1005A
NUT
0831610053
€ 2.50
