CYLINDER

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

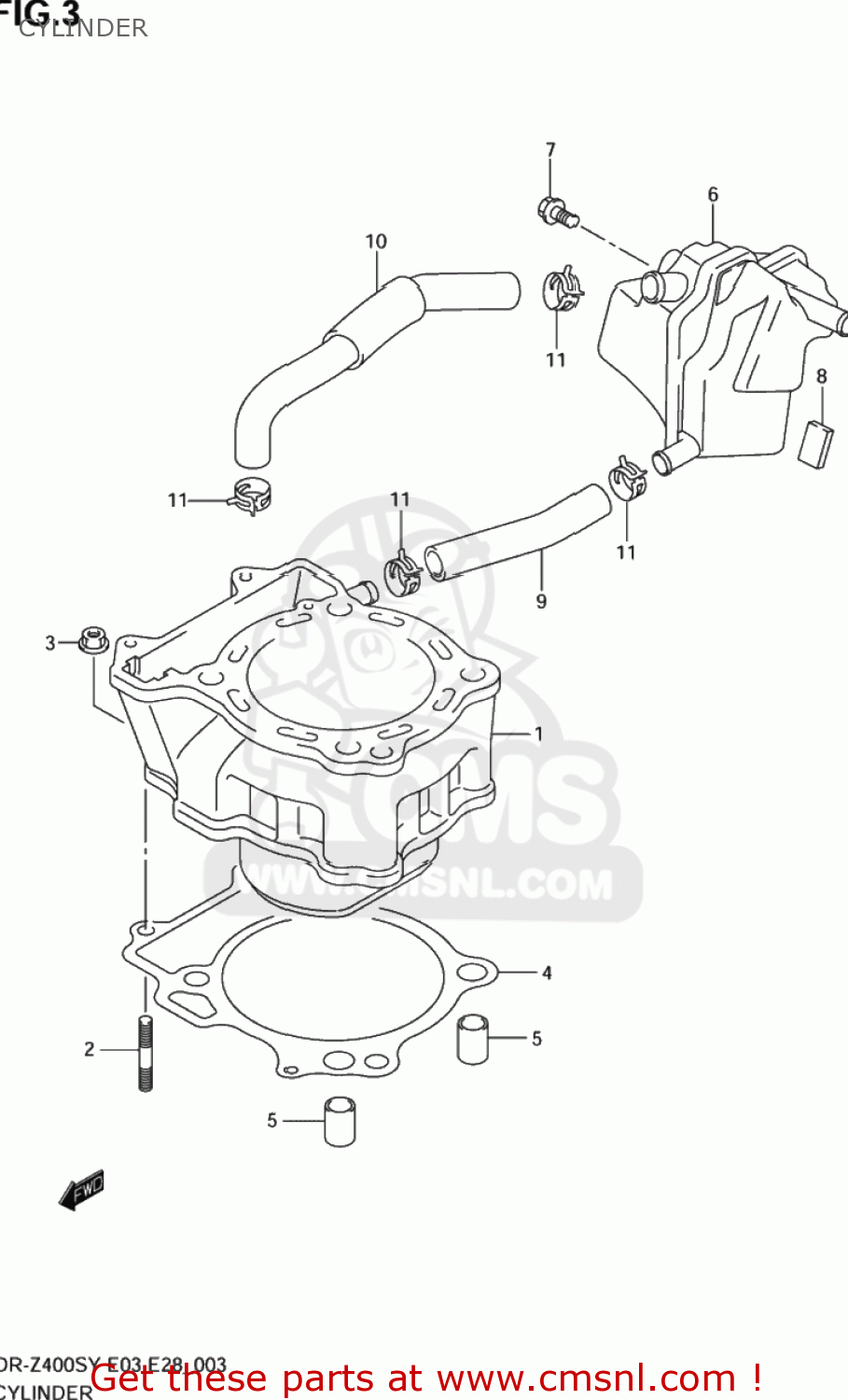

Cylinder diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

CYLINDER DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

CYLINDER DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

1121029F110F0
ref: 1-1
11210-29F20-0F0

CYLINDER COMP

€ 467.00

1-2

1121029F200F0
ref: 1-2

CYLINDER

€ 467.00

2

0142106253
ref: 2
01421-0625A

STUD BOLT

€ 2.00

3

0831610063
ref: 3
08316-1006B

NUT

€ 2.50

4-1

1124129F10
ref: 4-1
11241-29F11

GASKET,CYLINDER (NAS)

€ 19.00

4-2

1124129F11
ref: 4-2

GASKET,CYLINDER (NAS)

€ 19.00

5

0421113189
ref: 5

PIN

€ 2.50

6

1133029F00
ref: 6

TANK,OIL RETURN

€ 35.00

7

0154706103
ref: 7
01547-0610B

BOLT

€ 3.00

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

1133229F00
ref: 9

HOSE,BREATHER

€ 9.00

10

1133329F00
ref: 10

HOSE,BREATHER

€ 17.00

11

0940115404
ref: 11

CLIP

€ 2.50
