STARTING MOTOR

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

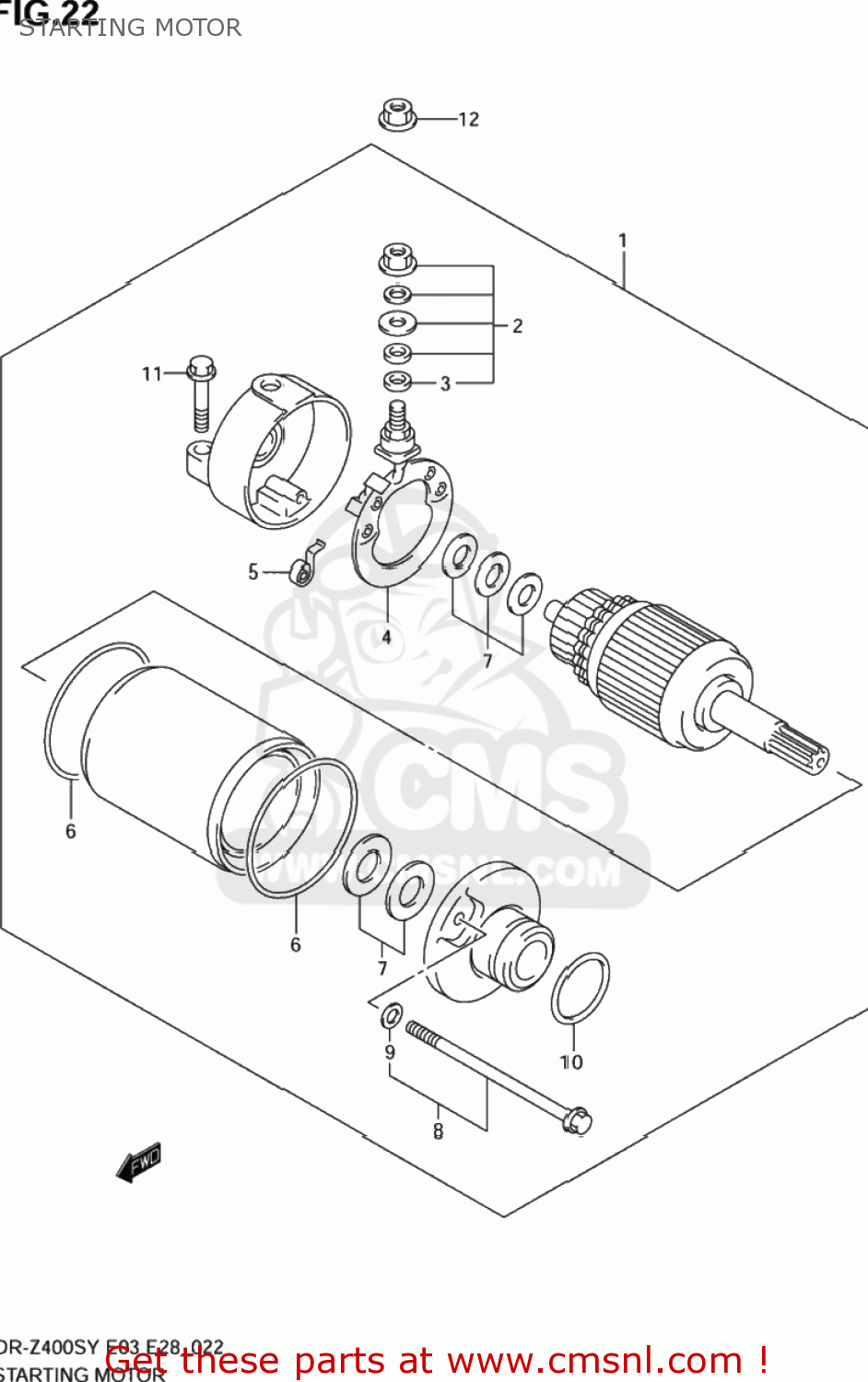

Starting motor diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

3110029F00
ref: 1

MOTOR ASSY,STARTING

€ 457.50

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3114349040
ref: 3

O RING

€ 3.00

3113213E00
ref: 4

BRUSH HOLDER SET

€ 47.50

3113531300
ref: 5

SPRING,BRUSH

€ 4.00

3126413E00
ref: 6

O RING

€ 6.00

3117019B10
ref: 7

SHIM SET,STARTING MOTOR

€ 8.00

3128019F00
ref: 8

BOLT SET

€ 12.50

3115613E00
ref: 9

O RING

€ 3.00

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

0154706253
ref: 11
01547-0625B

SCREW

€ 2.50

0836135068
ref: 12
08361-3506A

NUT

€ 2.00
