STAND

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

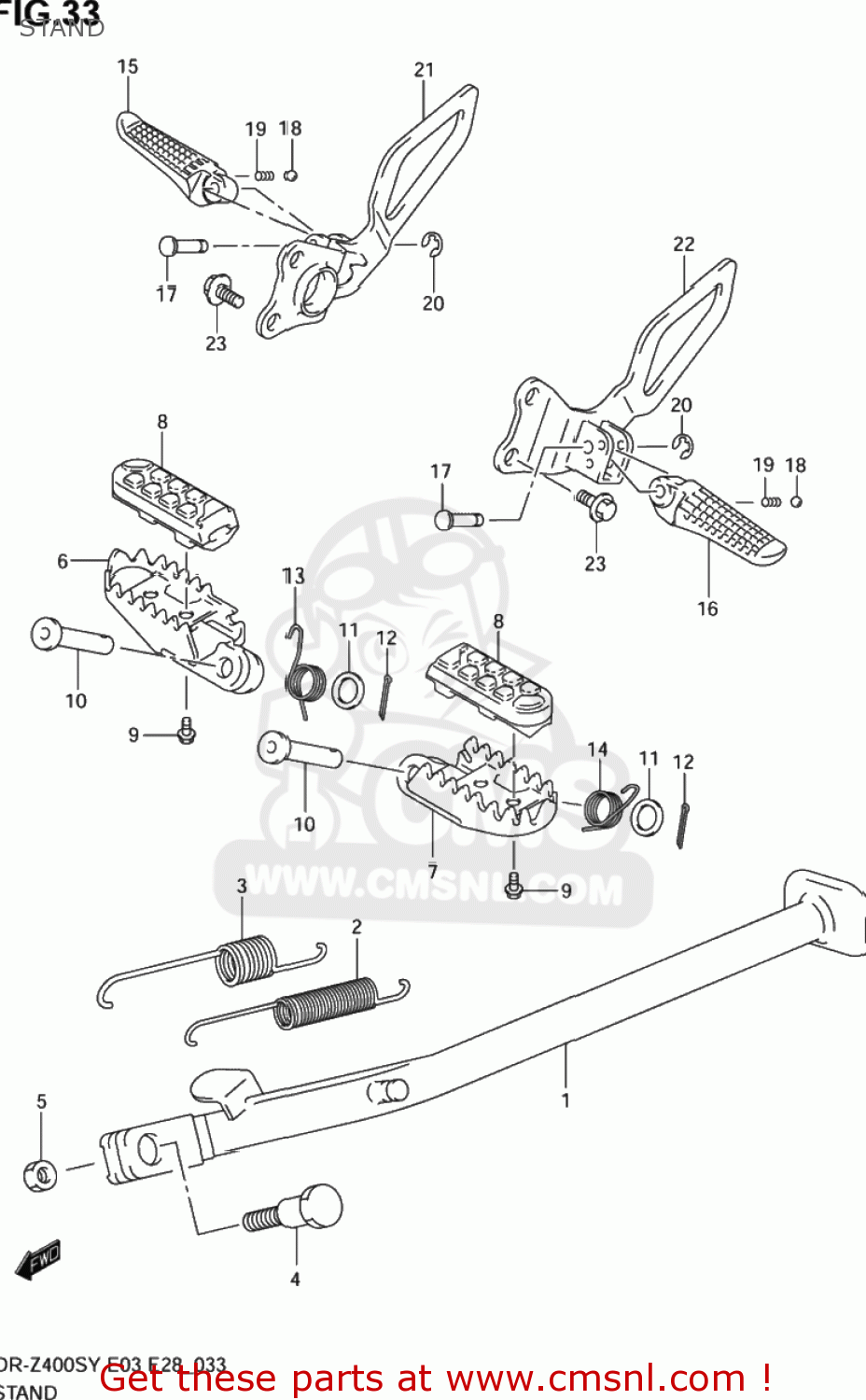

Stand diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

STAND DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

STAND DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

4231029F00
ref: 1

STAND,PROP

€ 0.00

2

0944312036
ref: 2

SPRING

€ 7.50

3

0944319010
ref: 3

SPRING

€ 6.00

4

0911110060
ref: 4

BOLT(10X33)

€ 3.50

5

4232103FK0
ref: 5

NUT,PROP STAND

€ 4.50

6

4355029E01
ref: 6

FOOTREST,R

€ 46.50

7

4356029E01
ref: 7

FOOTREST,L

€ 46.50

8

4353029F00
ref: 8

RUBBER,FOOTREST

€ 11.00

9

0154705103
ref: 9
01547-0510B

BOLT

€ 2.50

10

0920010019
ref: 10

PIN(10X41.5)

€ 6.00

11

0832201103
ref: 11
08322-0110A

WASHER

€ 2.50

12

0411125208
ref: 12
04111-2520A

PIN 25X20

€ 2.00

13

0944818030
ref: 13

SPRING

€ 5.00

14

0944818029
ref: 14

SPRING

€ 5.00

15

4361133E11
ref: 15

BAR,PILLION FOOTREST,R

€ 23.50

16

4362133E11
ref: 16

BAR,PILLION FOOTREST,L

€ 23.50

17

8725985510
ref: 17

PIN

€ 4.50

18

0611107004
ref: 18

BALL

€ 1.50

19

0944005005
ref: 19

SPRING

€ 1.50

20

0833211043
ref: 20
08332-1104A

E-RING

€ 2.00

21

4365029F00
ref: 21

BRACKET,PILLION,R

€ 185.50

22

4375029F00
ref: 22

BRACKET,PILLION,L

€ 32.50

23

0155008163
ref: 23
01550-0816A

BOLT

€ 3.00
