RADIATOR FAN

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

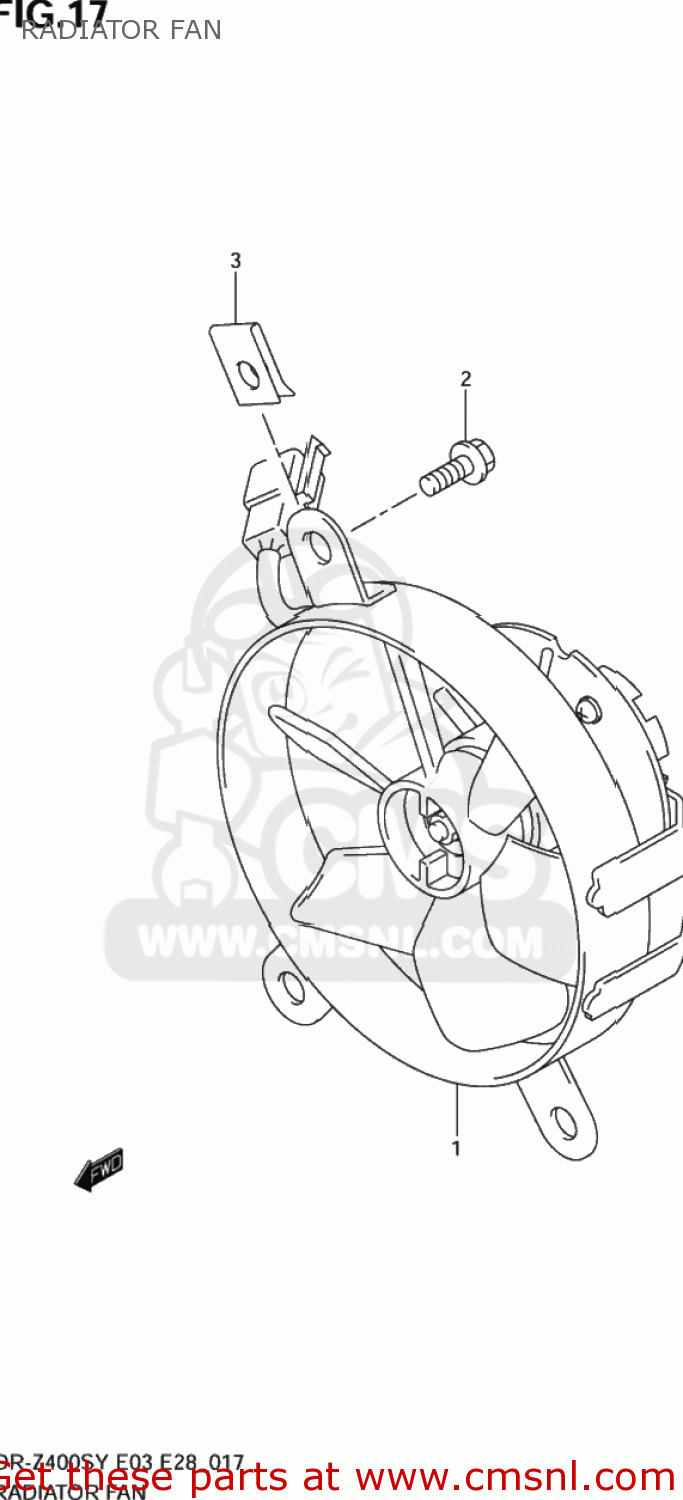

Radiator fan diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

RADIATOR FAN DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

RADIATOR FAN DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

1780029F00
ref: 1
17800-29F01

FAN ASSEMBLY,RADIATOR

€ 352.00

2

0155006103
ref: 2
01550-0610A

BOLT

€ 2.50

3

0914806015
ref: 3

NUT

€ 3.50
