OIL HOSE

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

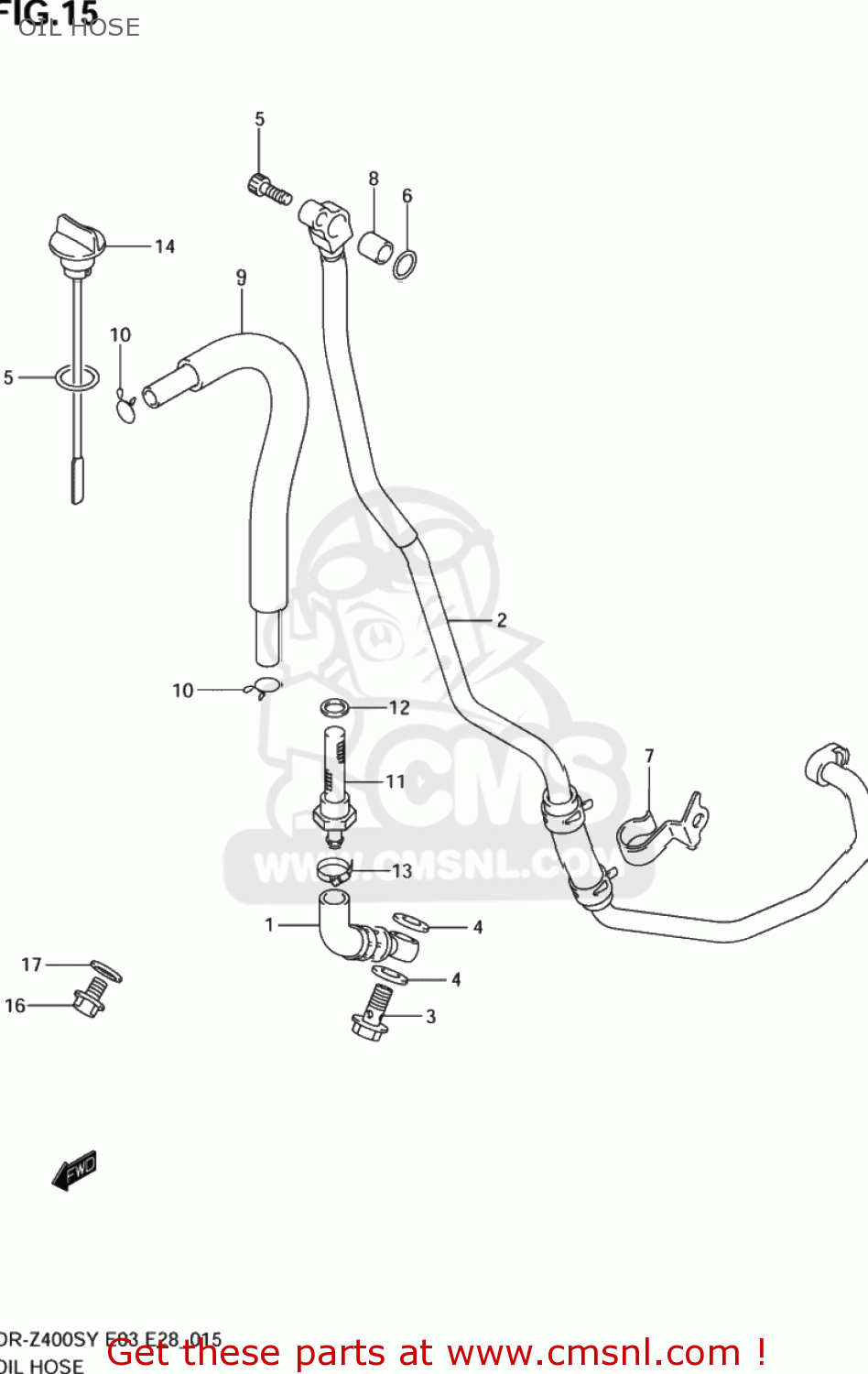

Oil hose diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

OIL HOSE DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
OIL HOSE DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
OIL HOSE DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
1646029F00
ref: 1-1
16460-29F10
HOSE COMP,OIL TANK,RIGHT
€ 48.50
1-2
1646029F10
ref: 1-2
HOSE,OIL TANK,R
1646029F10
€ 48.50
2-1
1647029F10
ref: 2-1
16470-29F20
HOSE COMP,OIL TANK,LEFT
€ 100.50
2-2
1647029F20
ref: 2-2
HOSE,OIL TANK,L
1647029F20
€ 100.50
3
0936014012
ref: 3
BOLT UNION
0936014012
€ 10.00
4
0916814015
ref: 4
GASKET(14X20X1.5) (NAS)
0916814015
€ 1.50
5-1
0713006203
ref: 5-1
07130-0620B
BOLT,CRKCASE,R
0713006203
€ 3.00
5-2
0712006163
ref: 5-2
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
5-3
0712006203
ref: 5-3
07120-0620B
BOLT
0712006203
€ 3.50
6
0928011005
ref: 6
O RING(D:2.4,ID:11)
0928011005
€ 4.50
7-1
1649129F10
ref: 7-1
16491-29F11
CLAMP,OIL TANK HOSE
€ 4.00
7-2
1649129F11
ref: 7-2
CLAMP,OIL TANK HOSE
1649129F11
€ 4.00
8
0421111129
ref: 8
PIN
0421111129
€ 2.00
9
1648029F00
ref: 9
HOSE,OIL TANK OVER FLOW
1648029F00
€ 14.50
10
0940112403
ref: 10
CLIP
0940112403
€ 2.00
11
1655029F00
ref: 11
STRAINER,FRAME HEAD UNDER
1655029F00
€ 48.00
12
0916818007
ref: 12
GASKET(18X22X2) (NAS)
0916818007
€ 2.50
13
0940222511
ref: 13
CLAMP
0940222511
€ 6.00
14-1
1656029F00
ref: 14-1
16561-29F10
GAUGE COMP,OIL LEVEL
€ 9.00
14-2
1656129F10
ref: 14-2
GAUGE,OIL LEVEL
1656129F10
€ 9.00
15
0928017003
ref: 15
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
16
0924710008
ref: 16
PLUG(10X12)
0924710008
€ 3.00
17
0916810002
ref: 17
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
