REAR CALIPER

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

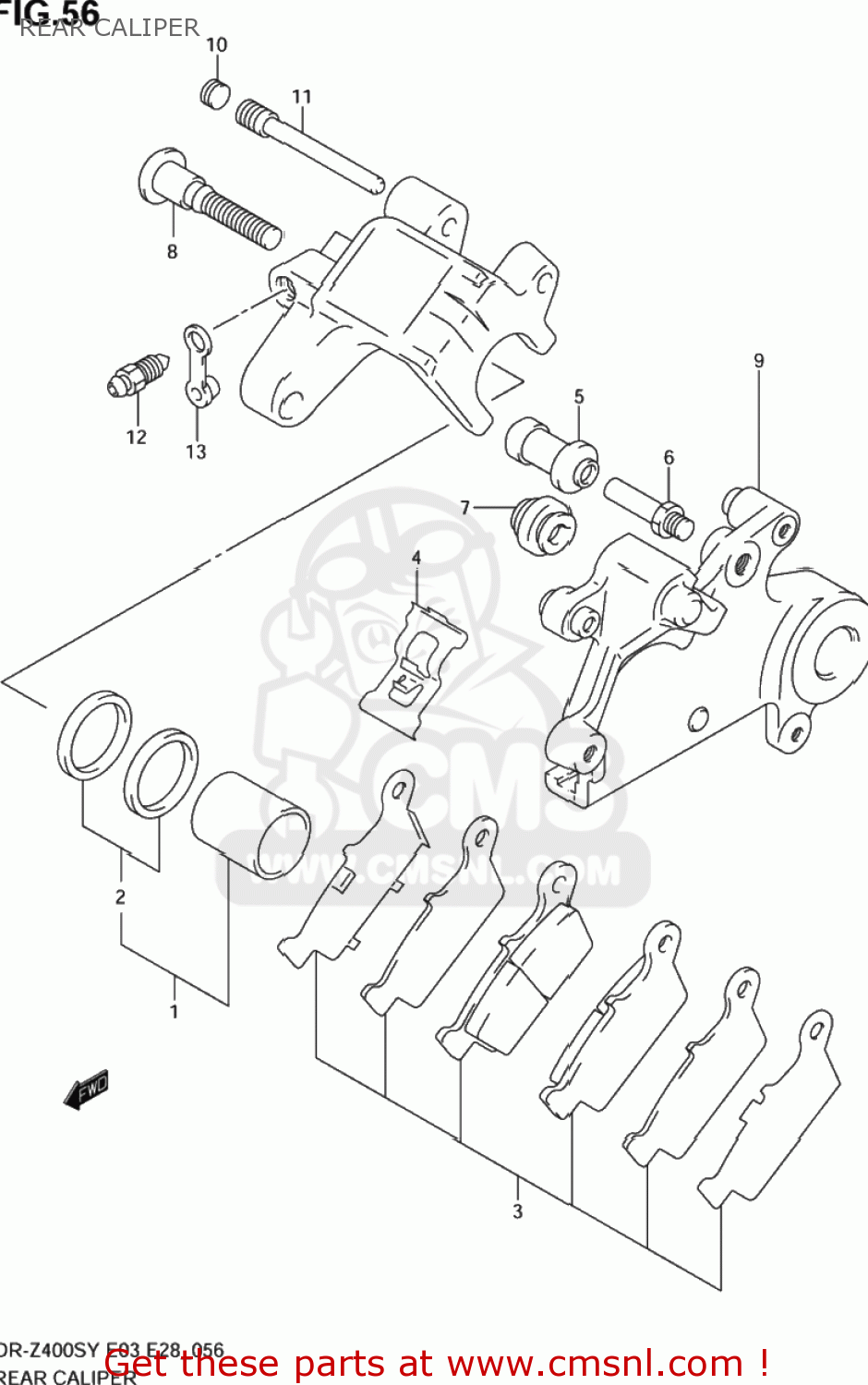

Rear caliper diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

REAR CALIPER DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

REAR CALIPER DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity



6910044E10
ref:
69100-44E10-999

CALIPER ASSEMBLY,REAR

€ 435.00



6910044E10
ref:
69100-44E10-999

CALIPER ASSEMBLY,REAR

€ 435.00

1

6910043810
ref: 1

PISTON SET

€ 31.50

2

6910036810
ref: 2

SEAL SET,PISTON

€ 13.00

3

6910036850
ref: 3

PAD & RETAINER SET

€ 56.00

4

5931536E00
ref: 4

SPRING,PAD

€ 6.50

5

5938613A00
ref: 5

BOOT

€ 6.50

6

5938227C30
ref: 6

BOLT

€ 7.50

7

5930314500
ref: 7

BOOT

€ 5.50

8

5930536E00
ref: 8

PIN,BOLT

€ 12.50

9

6935136E00
ref: 9

BRACKET

€ 85.00

10

5914621E10
ref: 10

PLUG,PIN

€ 6.50

11

6934543D00
ref: 11

PIN,HANGER

€ 7.50

12

5912101A00
ref: 12

BLEEDER

€ 8.50

13

5912201A00
ref: 13

CAP,BLEEDER

€ 4.50
