FRONT WHEEL

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

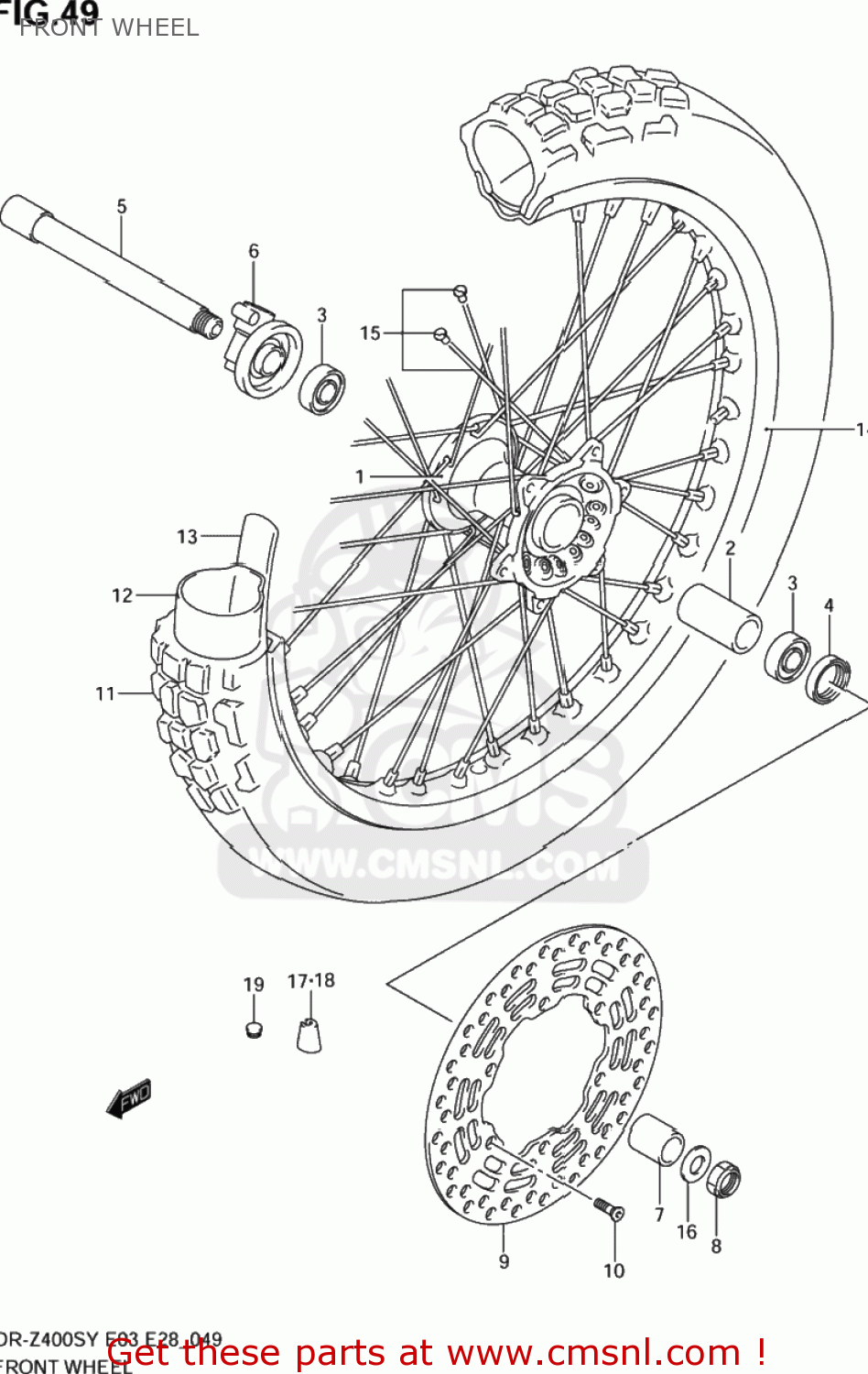

Front wheel diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

FRONT WHEEL DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
FRONT WHEEL DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
FRONT WHEEL DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
5411129F10
ref: 1
HUB,FR WHEEL
€ 159.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
5473136E10
€ 13.00
2
5473136E10
ref: 2
SPACER,FR HUB BEARING
5473136E10
€ 13.00
3
0813069047
ref: 3
BEARING
0813069047
€ 37.50
4
0928325083
ref: 4
SEAL,OIL(25X37X6)
0928325083
€ 5.00
5
5471129F00
ref: 5
AXLE,FR
€ 56.50
6
5460029F00
ref: 6
BOX ASSY,SPEEDOMETER GEAR
5460029F00
€ 70.00
7
5475136E10
ref: 7
SPACER,FR AXLE,L
5475136E10
€ 11.50
8
0915918018
ref: 8
NUT
0915918018
€ 12.00
9
5922113E00
ref: 9
DISC,FR BRAKE,L
€ 127.00
10
0912006011
ref: 10
09120-06014
SCREW
€ 2.50
11
5511029F10
ref: 11
TIRE,FR(80/100-21 51P)
€ 105.50
11
5511029F10
ref: 11
TIRE,FR(80/100-21 51P)
€ 105.50
12
5520032E00
ref: 12
TUBE ASSEMBLY,WHEEL,INNER
€ 24.50
13
5526132E00
ref: 13
55261-32E01
PROTECTOR,WHEEL,INNER
€ 4.50
14
5531129F00
ref: 14
RIM,FR WHEEL(21X1.60 AL)
€ 325.00
15
5532029F00
ref: 15
SPOKE SET,FR WHEEL
5532029F00
€ 41.50
16
0916018034
ref: 16
WASHER(18X26X2.8)
0916018034
€ 2.50
17
5541238A00
ref: 17
55412-41F00
BALANCER,WHEEL
5541238A00
€ 6.50
18
5541338A00
ref: 18
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
19
0925008013
ref: 19
CAP(OD:12)
0925008013
€ 2.00
