FRONT FENDER (MODEL Y)

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

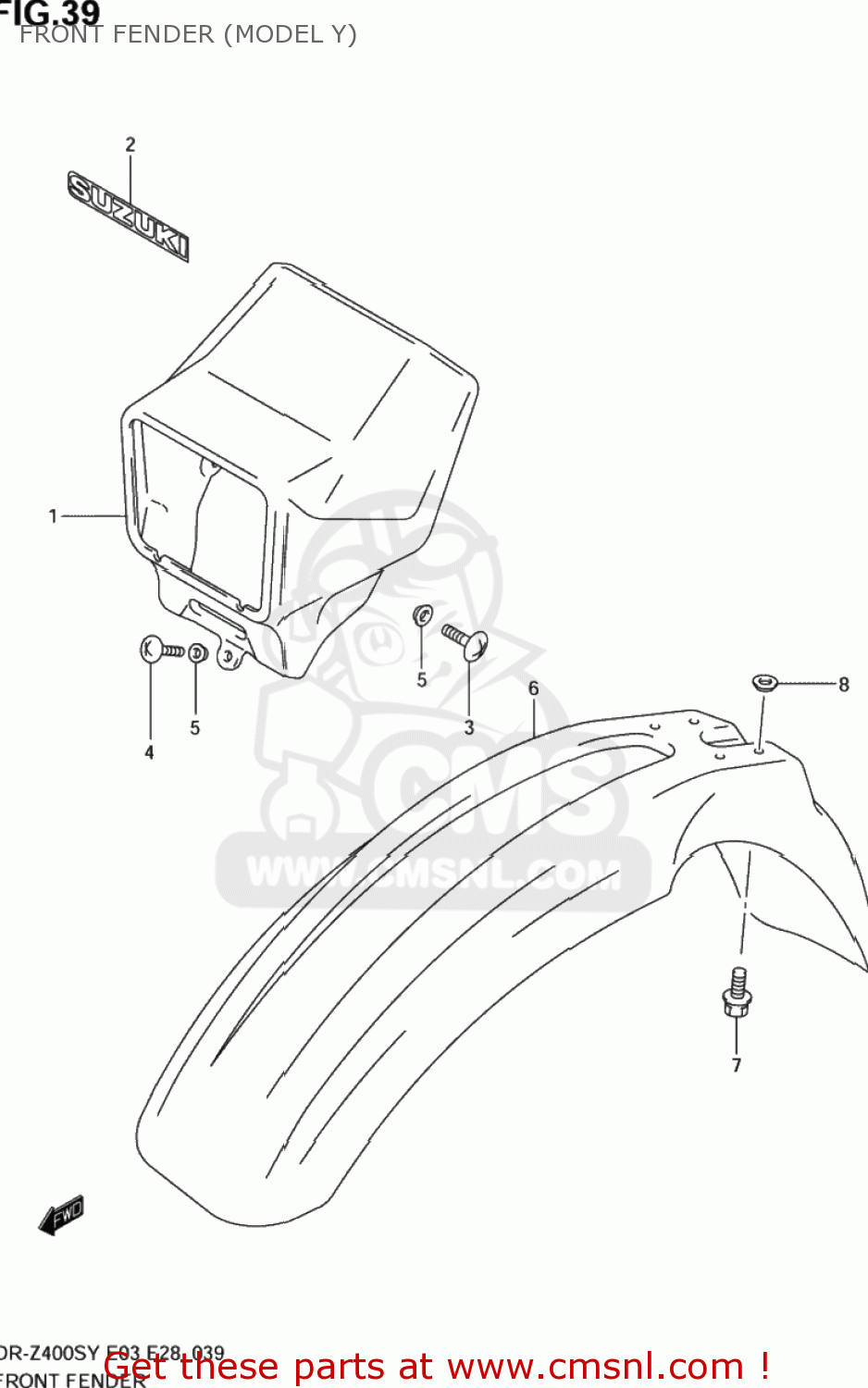

Front fender (model y) diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

5181132E0030H
ref: 1

COVER,HEADLAMP

€ 78.50

2-1

6817144B008YM
ref: 2-1

EMBLEM,HEADLAMP COVER

€ 11.00

2-2

6817144B00N9J
ref: 2-2

EMBLEM,SUZUKI

€ 8.50

0214206123
ref: 3
02142-0612A

SCREW 6X12

€ 2.00

0214205123
ref: 4
02142-0512A

SCREW 5X12

€ 1.50

0916906033
ref: 5

WASHER

€ 1.50

6-1

5311127C2125Y
ref: 6-1
53111-27C22-25Y

FENDER,FRONT (YELLOW)

€ 82.50

6-2

5311127C21YJ4
ref: 6-2
53111-27C22-YJ4

FENDER,FRONT (BLUE)

€ 86.00

0911606170
ref: 7

BOLT(6X16)

€ 3.00

0916906073
ref: 8

WASHER

€ 4.00
