SEAT (MODEL K2/K3/K4)

DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

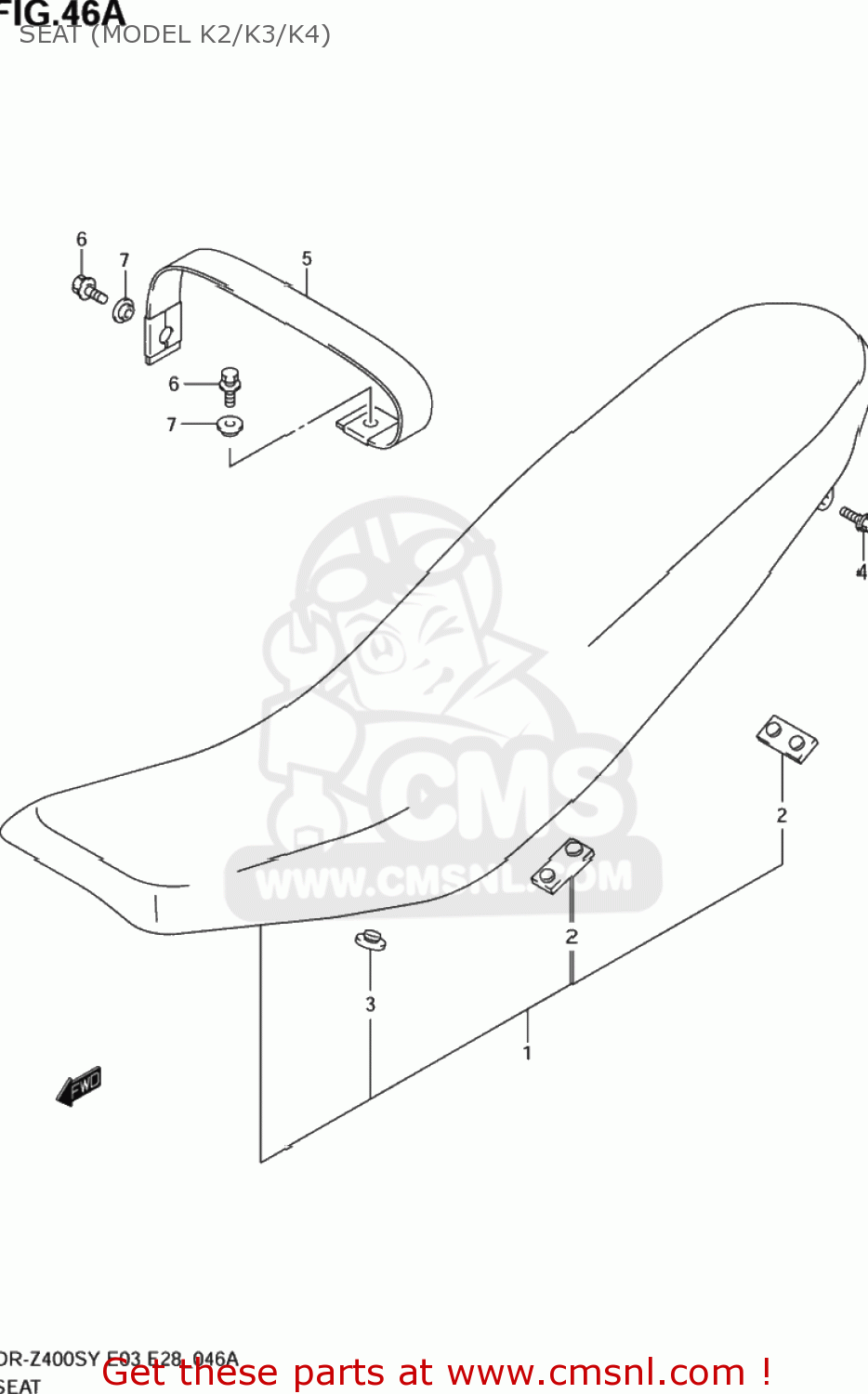

Seat (model k2/k3/k4) diagram DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

SEAT (MODEL K2/K3/K4) DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

SEAT (MODEL K2/K3/K4) DR-Z400S 2004 (K4) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

4510029F606BY
ref: 1

SEAT ASSY(BLACK)

€ 336.50

2-1

4514912C00
ref: 2-1

CUSHION,SEAT(40X20X6)

€ 3.00

2-2

4514931300
ref: 2-2

CUSHION,SEAT(40X20X15)

€ 2.00

3

0932110022
ref: 3

CUSHION

€ 2.00

4

0155006203
ref: 4
01550-0620A

BOLT

€ 2.50

5

4518029F006BY
ref: 5

BAND ASSY,SEAT

€ 48.50

6

0911606150
ref: 6

BOLT(6X25)

€ 2.50

7

0916906063
ref: 7

WASHER

€ 3.50
