2ND AIR

DL1000 VSTROM 2008 (K8) USA (E03)

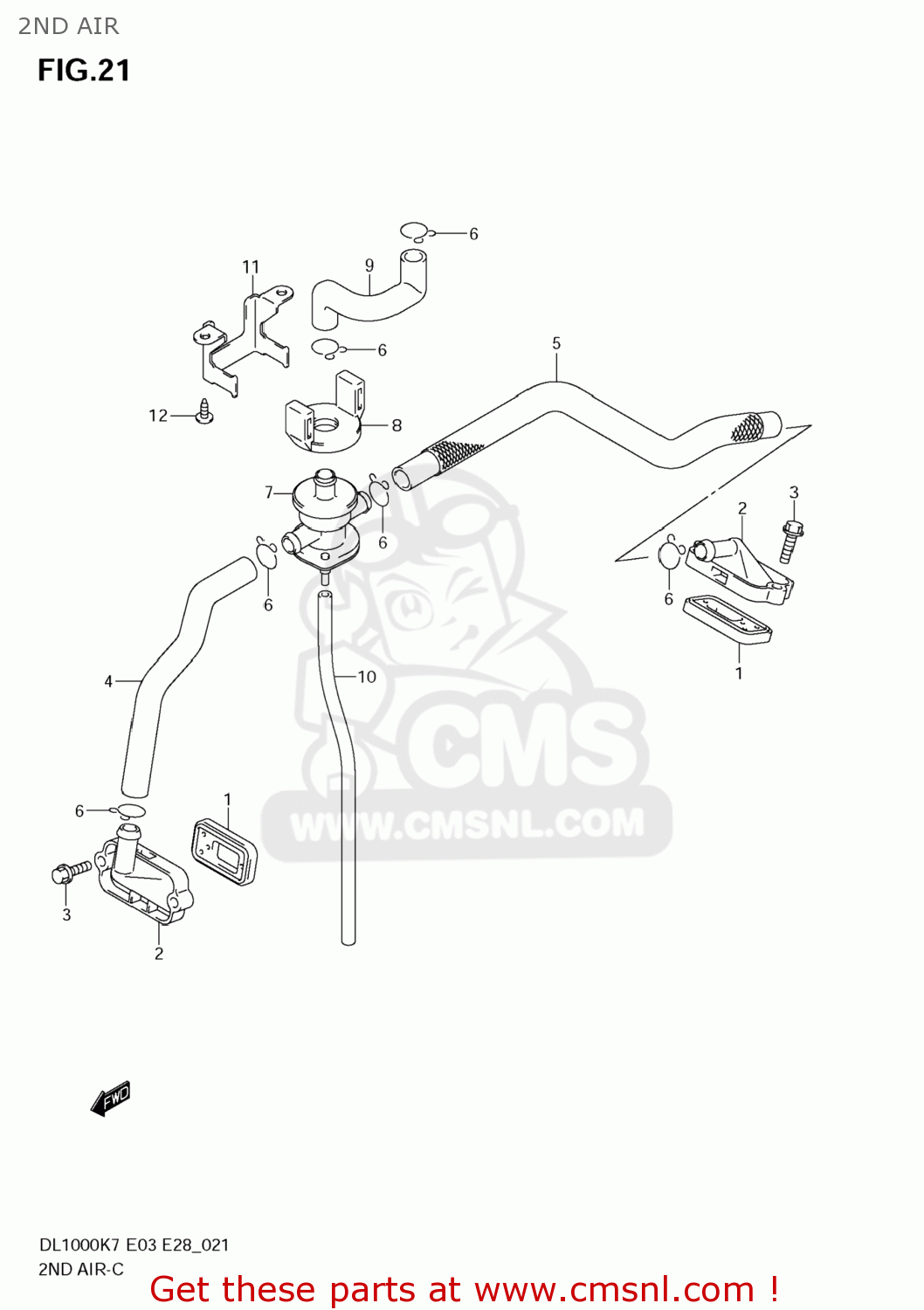

2nd air diagram DL1000 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1845006G00
ref: 1

VALVE ASSY,2ND AIR REED

€ 22.50

1853106G01
ref: 2

COVER,2ND AIR

€ 9.50

0910306201
ref: 3

BOLT(6X20)

€ 2.00

1846106G00
ref: 4

HOSE,2ND AIR VALVE FR

€ 16.00

1847106G00
ref: 5

HOSE,2ND AIR VALVE RR

€ 27.00

0940115101
ref: 6

CLIP

€ 2.00

1851035F00
ref: 7

VALVE ASSY,AIR CUT

€ 168.00

1851706G10
ref: 8

CUSHION,2ND AIR VALVE

€ 11.50

1871106G10
ref: 9

HOSE,2ND AIR CLEANER

€ 6.50

1369702A00
ref: 10

HOSE,AIR VALVE NO.2

€ 7.00

1861006G00
ref: 11

BRACKET,2ND AIR VALVE

€ 9.00

035410612B
ref: 12

SCREW

€ 2.00

all assemblies
