STARTER CLUTCH
DL1000 VSTROM 2008 (K8) USA (E03)

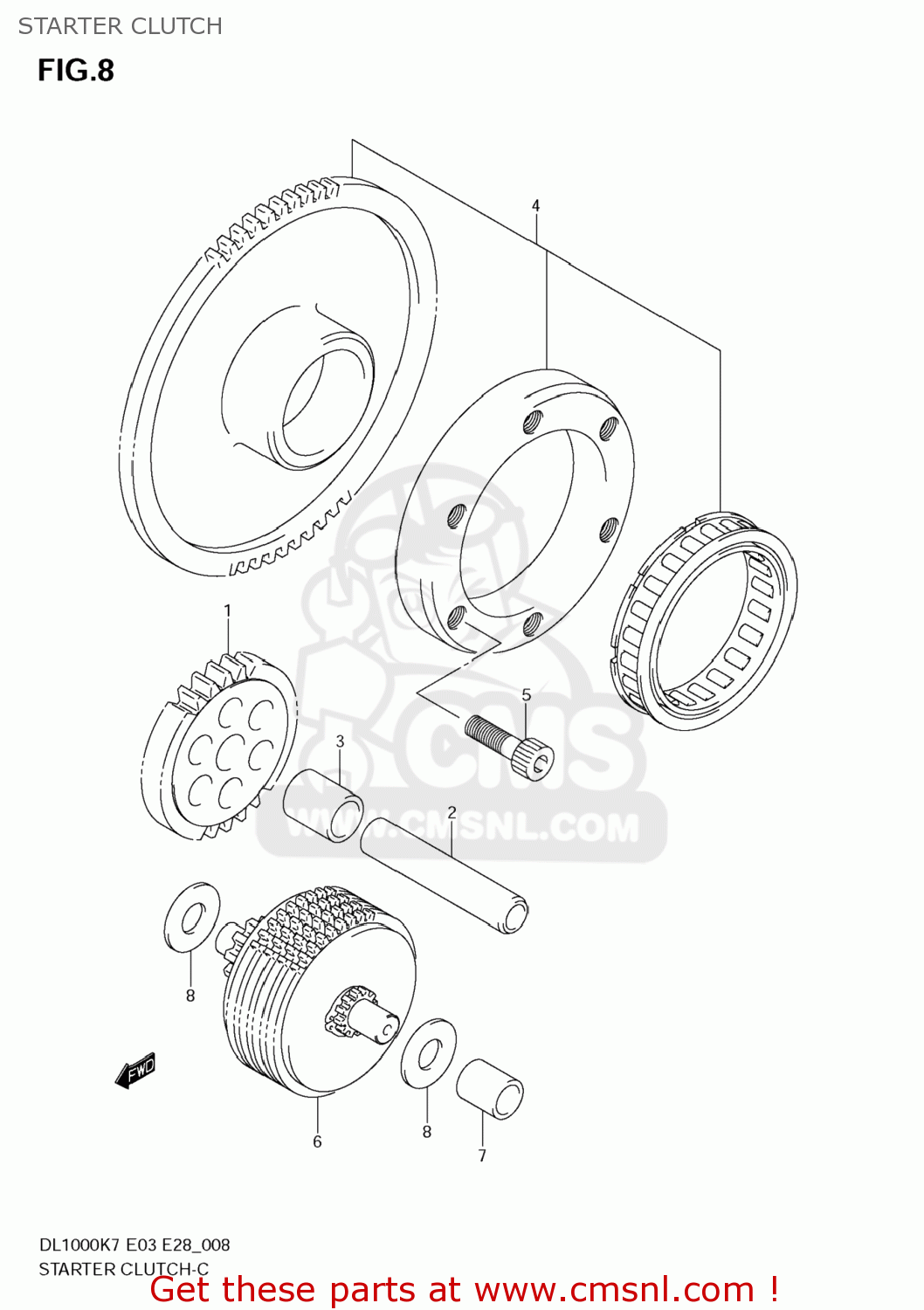

Starter clutch diagram DL1000 VSTROM 2008 (K8) USA (E03)
STARTER CLUTCH DL1000 VSTROM 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1261206G00
ref: 1
GEAR,STARTER IDLE NO.2
€ 50.00
2
0920612002
ref: 2
PIN(7X12X50.5)
€ 9.00
3
0918012140
ref: 3
SPACER(12.5X19X17.5)
€ 5.50
4
1260006811
ref: 4
CLUTCH SET,STARTER
€ 272.00
5
0910608106
ref: 5
BOLT(8X20)
€ 3.00
6
1260006G00
ref: 6
12600-06G01
LIMITER ASSY, STARTER IDLE
€ 125.50
6
1260006G00
ref: 6
12600-06G01
LIMITER ASSY, STARTER IDLE
€ 125.50
7
1261831D01
ref: 7
BUSH,LIMITER GEAR SHAFT
€ 17.50
8
0821110221
ref: 8
WASHER
€ 2.50
