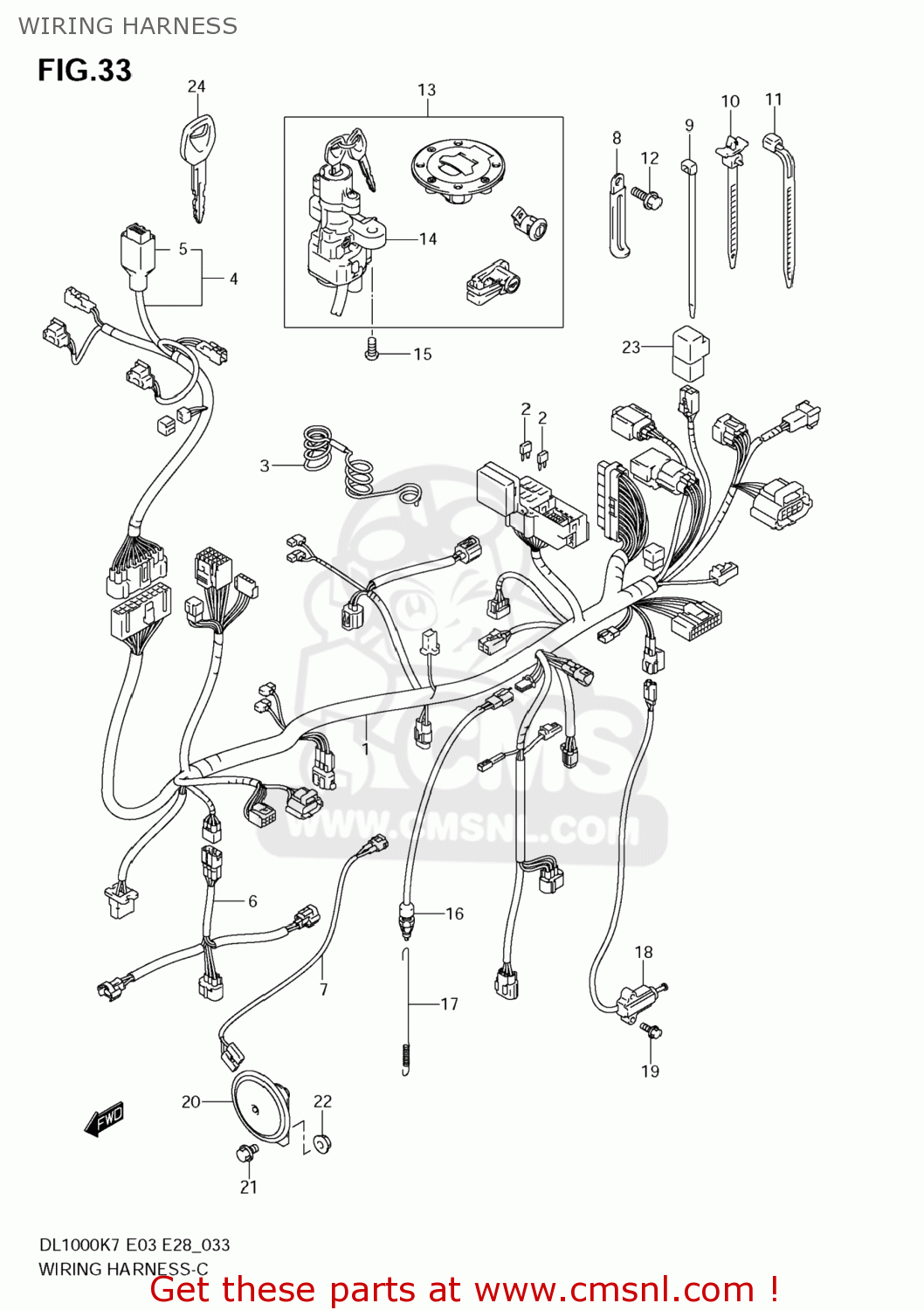

WIRING HARNESS

ref

part #

description

quantity

1

3661006G70
ref: 1

HARNESS,WIRING NO.1

€ 717.00

2-1

0948110501
ref: 2-1

FUSE(10A)

€ 3.00

2-2

0948115501
ref: 2-2

FUSE(15A)

€ 1.00

3

3661906G01
ref: 3

GUIDE,WIRING HARNESS

€ 17.50

4

3662027G30
ref: 4

HARNESS,WIRING NO.2

€ 135.50

5

3661818G10
ref: 5

COVER,CONNECTOR

€ 8.00

6

3685906G00
ref: 6

WIRE,INJECTOR LEAD

€ 40.00

7

3685206G00
ref: 7

WIRE,HORN LEAD

€ 16.00

8-1

0940406429
ref: 8-1

CLAMP(L:45)

€ 2.50

8-2

0940406433
ref: 8-2

CLAMP(L:80)

€ 3.00

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00

10

0940717402
ref: 10

CLAMP

€ 5.00

11-1

0940711401
ref: 11-1

CLAMP(L:95)

€ 2.50

11-2

0940714403
ref: 11-2

CLAMP(L:125)

€ 2.50

12

015470610B
ref: 12

BOLT

€ 3.00

13-1

3700006860
ref: 13-1

LOCK SET

€ 584.50

13-2

3700006870
ref: 13-2

LOCK SET

€ 0.00

14

3710006G00
ref: 14

LOCK ASSY,STEERING

€ 183.50

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774045D00
ref: 16
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

17

4325906G00
ref: 17

SPRING,STOP LAMP SWITCH

€ 12.50

18

3784006G00
ref: 18

SWITCH ASSY,SIDE STAND

€ 67.00

19

015500616B
ref: 19

BOLT

€ 2.50

20

3850041F00
ref: 20

HORN ASSY

€ 83.50

21

015500812B
ref: 21

BOLT

€ 3.50

22

083161008B
ref: 22

NUT

€ 3.00

23

3874024X50
ref: 23

RELAY ASSY

€ 37.50

24

3714633E00
ref: 24

KEY,BLANK

€ 13.00
