SPEEDOMETER
DL1000 VSTROM 2008 (K8) USA (E03)

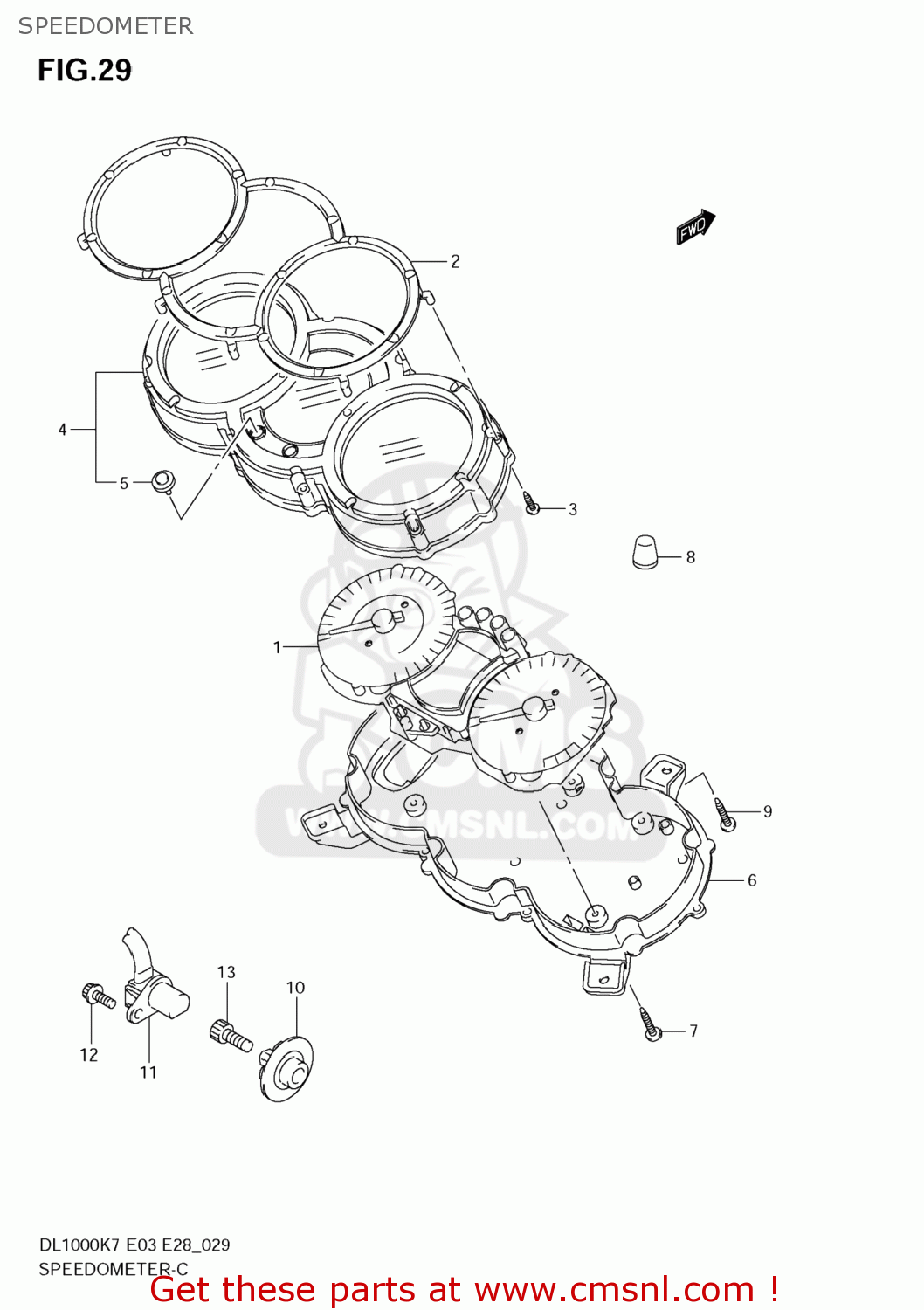

Speedometer diagram DL1000 VSTROM 2008 (K8) USA (E03)
SPEEDOMETER DL1000 VSTROM 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3412006G61
ref: 1-1
SPEEDOMETER
€ 409.50
1-2
3412006G51
ref: 1-2
SPEEDOMETER
€ 871.00
2
3419306G50
ref: 2
RING
€ 187.00
3
3418331F10
ref: 3
SCREW(2.3X8)
€ 3.00
4
3415027G00
ref: 4
CASE,UPR
€ 146.50
5
3412424F00
ref: 5
SWITCH,LEVER
€ 6.50
6
3411127G00
ref: 6
CASE,LWR
€ 72.00
7
0913203008
ref: 7
SCREW(3X16)
€ 1.50
8
3495510G00
ref: 8
CUSHION,SPEEDOMETER
€ 3.50
9
035410520B
ref: 9
SCREW
€ 2.50
10
3498138G00
ref: 10
34981-38G01
ROTOR,SPEED
€ 15.00
11
3499047F00
ref: 11
SENSOR,SPEED
€ 124.50
12
071200510B
ref: 12
BOLT
€ 2.00
13
071300825B
ref: 13
BOLT
€ 3.50
