REAR FENDER
DL1000 VSTROM 2008 (K8) USA (E03)

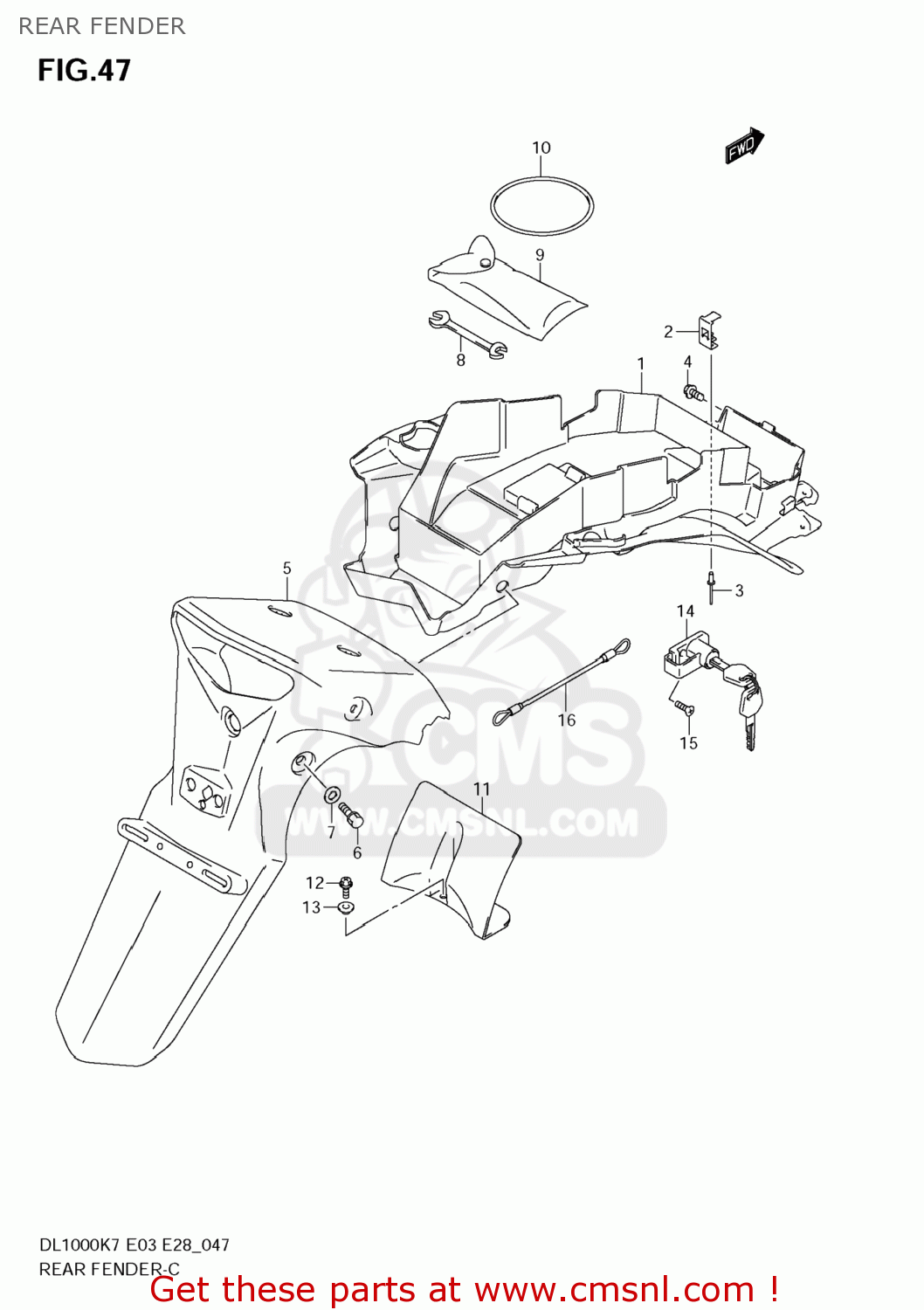

Rear fender diagram DL1000 VSTROM 2008 (K8) USA (E03)
REAR FENDER DL1000 VSTROM 2008 (K8) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311106G00
ref: 1-1
63111-06G10
FENDER,REAR FR
€ 129.50
1-2
6311106G10
ref: 1-2
FENDER,RR FR
€ 129.50
2
4741206G01
ref: 2
BRACKET,FUEL CUT SENSOR
€ 6.00
3
0922904020
ref: 3
RIVET
€ 2.50
4
0911606210
ref: 4
BOLT(6X12)
€ 1.50
5
6311206G10291
ref: 5
FENDER,RR RR
€ 0.00
6
015470612B
ref: 6
BOLT
€ 2.00
7
0916006156
ref: 7
WASHER(6.5X18X1.6)
€ 1.50
8
0981300027
ref: 8
OPEN SPANNER(8X10)
€ 3.00
9
0980021035
ref: 9
TOOL ASSY
€ 28.50
10
0928061002
ref: 10
O RING(D:3.5,ID:61)
€ 5.00
11
6342119F00
ref: 11
MUDGUARD,RR FENDER FR LWR
€ 15.00
12
021620616B
ref: 12
SCREW
€ 2.50
13
0916906071
ref: 13
WASHER
€ 2.50
14
9570042810
ref: 14
LOCK SET,HELMET
€ 90.50
15
021220620B
ref: 15
SCREW
€ 2.00
16
9574006G00
ref: 16
CABLE,HELMET LOCK
€ 22.50
