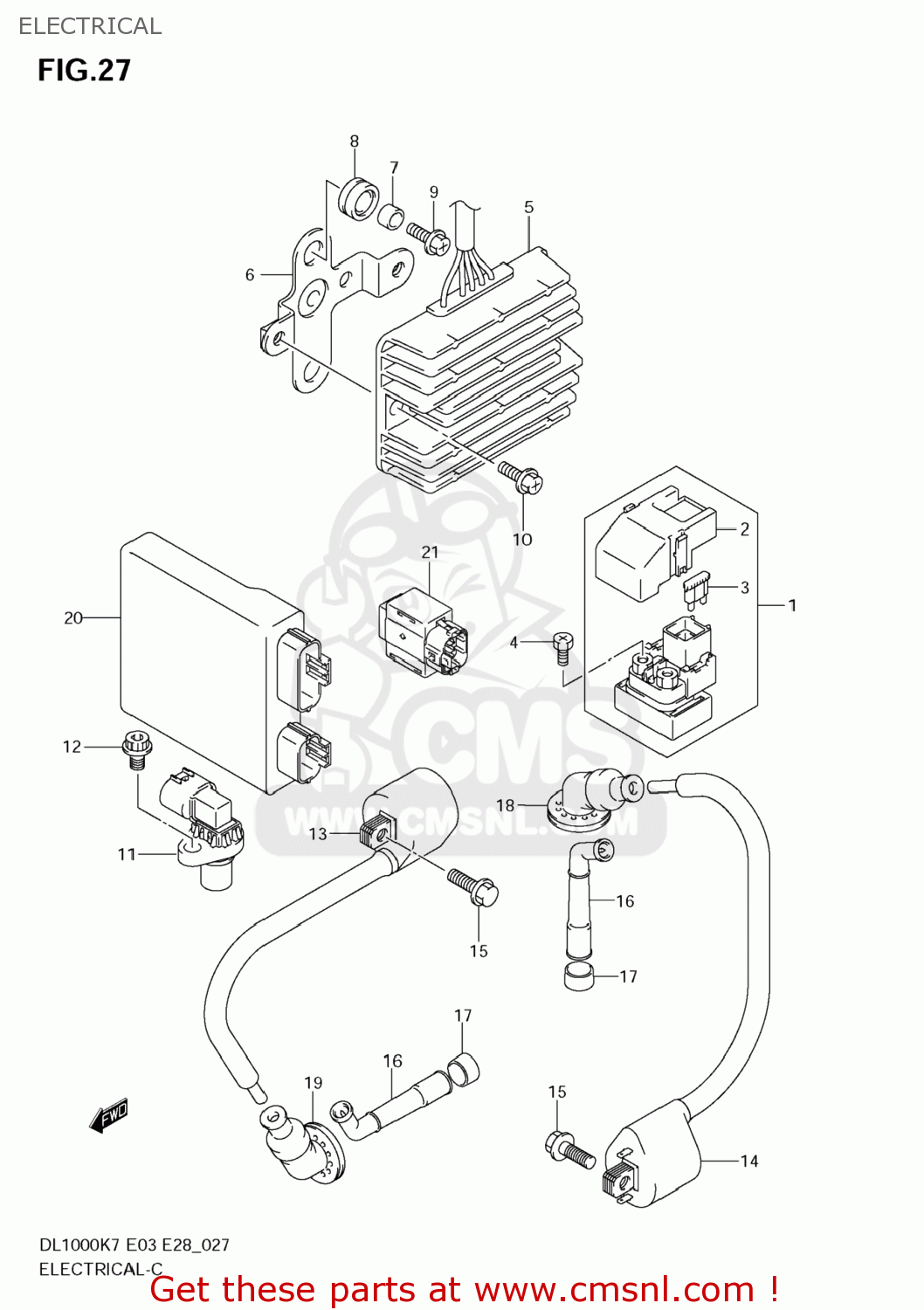

ELECTRICAL

ref

part #

description

quantity

1

3180006G00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 78.50

2

3186147E00
ref: 2

COVER

€ 10.50

3

0948130101
ref: 3

FUSE(30A)

€ 6.00

4

0912806013
ref: 4

SCREW(6X8)

€ 1.50

5

3280006G00
ref: 5
32800-06G01

RECTIFIER ASSY

€ 328.50

6

3283106G10
ref: 6

BRACKET,RECT FTG

€ 7.00

7

0918006258
ref: 7

SPACER(6.5X9X6.7)

€ 3.00

8

0932009036
ref: 8

CUSHION

€ 4.00

9

021620620B
ref: 9

SCREW

€ 2.00

10

021620620B
ref: 10

SCREW

€ 2.00

11

3322080G00
ref: 11

SENSOR ASSY,CRANK POSITION

€ 91.50

12

071300616B
ref: 12

BOLT

€ 3.00

13

3341006G00
ref: 13

COIL ASSY,IGNITION

€ 79.00

14

3342006G00
ref: 14

COIL ASSY,IGNITION

€ 112.50

15

015470620B
ref: 15

BOLT

€ 2.50

16

3351017G00
ref: 16

CAP ASSY,SPARK PLUG

€ 28.50

17

3354123E10
ref: 17

SEAL,SPARK PLUG

€ 5.00

18

3354206G00
ref: 18

SEAL,HIGH TENSION CORD RR

€ 5.50

19

3354206G10
ref: 19

SEAL,HIGH TENSION CORD FR

€ 5.50

20

3292006G71
ref: 20

CONTROL UNIT, FI (MODEL K4/K5 E33MODEL K6 E3/E28/E33)

€ 963.00

21

3396006G10
ref: 21

SENSOR ASSY,FUEL CUT

€ 75.00
