CYLINDER

DL1000 VSTROM 2008 (K8) USA (E03)

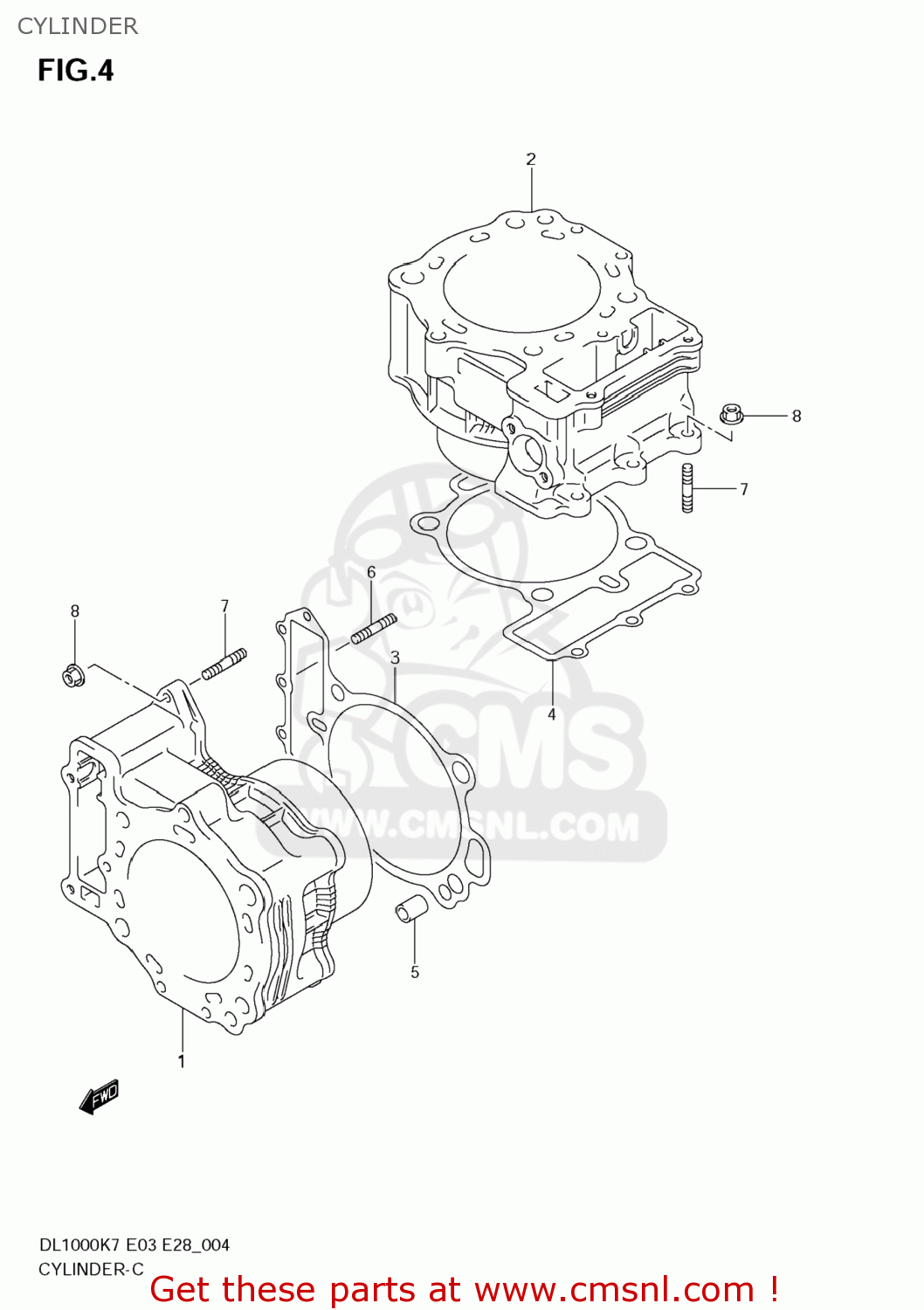

Cylinder diagram DL1000 VSTROM 2008 (K8) USA (E03)

CYLINDER DL1000 VSTROM 2008 (K8) USA (E03)

CYLINDER DL1000 VSTROM 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121106G000F0
ref: 1

CYLINDER,FR

€ 399.00

2

1122106G000F0
ref: 2

CYLINDER,RR

€ 937.50

3

1124102F01
ref: 3

GASKET,CYLINDER FR (NAS)

€ 19.50

4

1124202F01
ref: 4

GASKET,CYLINDER RR (NAS)

€ 19.50

5

0421113189
ref: 5

PIN

€ 2.50

6

0910806134
ref: 6

BOLT,STUD

€ 2.00

7

014210620B
ref: 7

BOLT,STUD

€ 2.00

8

083161006B
ref: 8

NUT

€ 2.50
