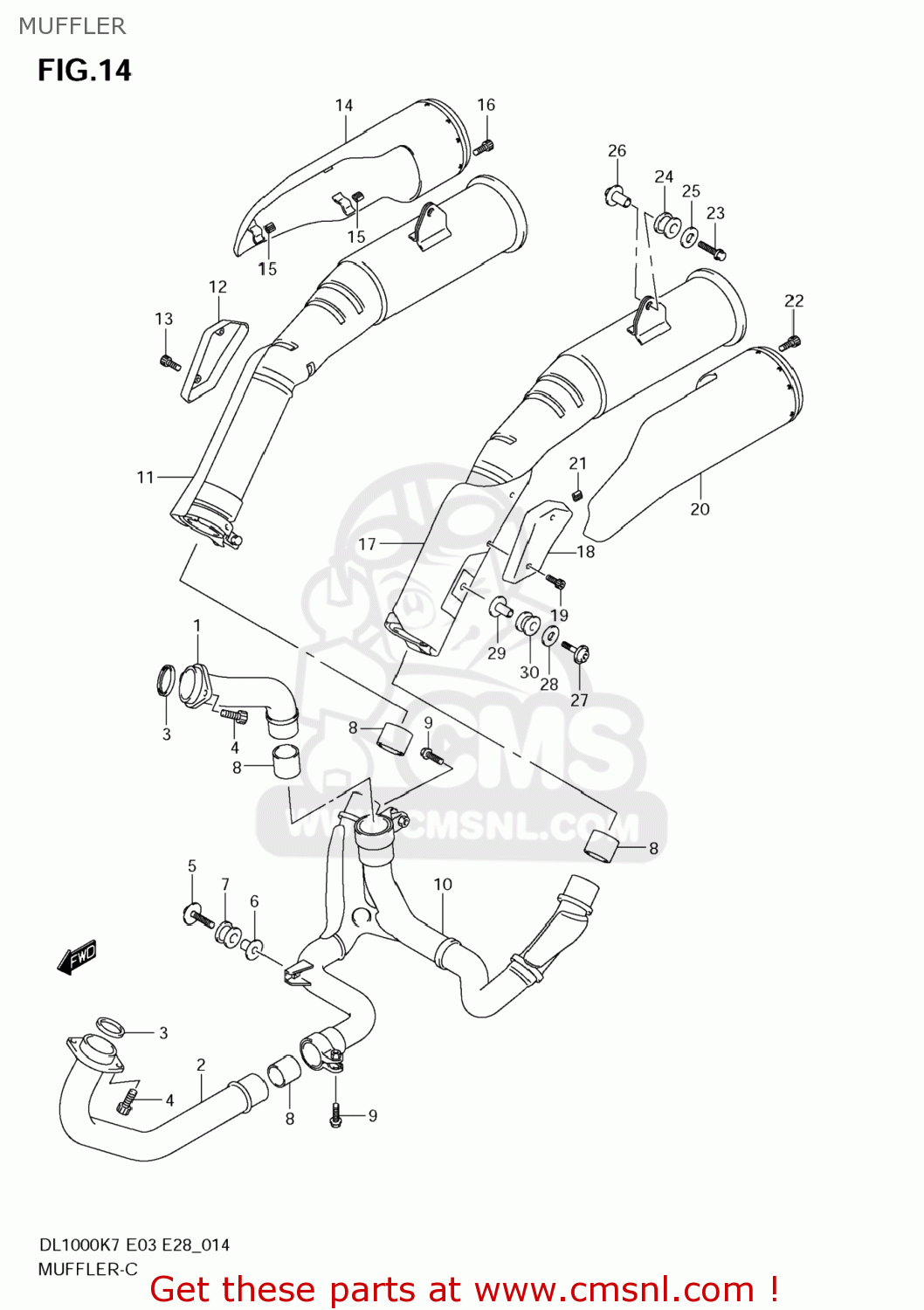

MUFFLER

ref

part #

description

quantity

1

1415006G00
ref: 1

PIPE,EXHAUST,R

€ 80.50

2

1416006G00
ref: 2

PIPE,EXHAUST,L

€ 177.00

3

1418131D00
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 9.50

4

0910608165
ref: 4

BOLT(8X25)

€ 5.00

5

0911808152
ref: 5
09118-08152-A05

BOLT 8X45

€ 5.00

6

0918008152
ref: 6

SPACER(8.6X12X24.2)

€ 6.00

7

0932012048
ref: 7

CUSHION

€ 5.00

8

1477102F00
ref: 8

CONNECTOR,EXHAUST,R

€ 19.50

9

0910308392
ref: 9

BOLT(8X40)

€ 4.00

10

1420506G10
ref: 10

PIPE,EXHAUST CTR

€ 433.00

11

1430506G02H01
ref: 11

MUFFLER,R

€ 745.50

12

1418606G00
ref: 12

PROTECTOR,MUFFLER COVER FR,R

€ 13.50

13

071300512B
ref: 13

BOLT

€ 2.50

14

1478006G01
ref: 14

COVER,MUFFLER,R

€ 349.00

15

1479506G00
ref: 15

GROMMET,MUFFLER COVER

€ 4.00

16

0910606076
ref: 16

BOLT(6X10)

€ 2.50

17

1430606G02H01
ref: 17

MUFFLER,L

€ 745.50

18

1419606G00
ref: 18

PROTECTOR,MUFFLER COVER FR,L

€ 13.50

19

071300512B
ref: 19

BOLT

€ 2.50

20

1479006G01
ref: 20

COVER,MUFFLER,L

€ 348.00

21

1479506G00
ref: 21

GROMMET,MUFFLER COVER

€ 4.00

22

0910606076
ref: 22

BOLT(6X10)

€ 2.50

23

0910308358
ref: 23

BOLT(8X45)

€ 3.50

24

0932012049
ref: 24

CUSHION

€ 9.00

25

0916008146
ref: 25

WASHER(8.5X33X1.5)

€ 3.00

26

1441406G00
ref: 26

NUT,MUFFLER SUPPORT

€ 7.00

27

0910608147
ref: 27

BOLT(8X30)

€ 6.00

28

0916008134
ref: 28

WASHER(8.5X26X1.6)

€ 2.50

29

0918008151
ref: 29

SPACER(8.6X12X17.5)

€ 6.00

30

0932012043
ref: 30

CUSHION

€ 8.00

all assemblies
